Lubrication And Sealing Points: Notes

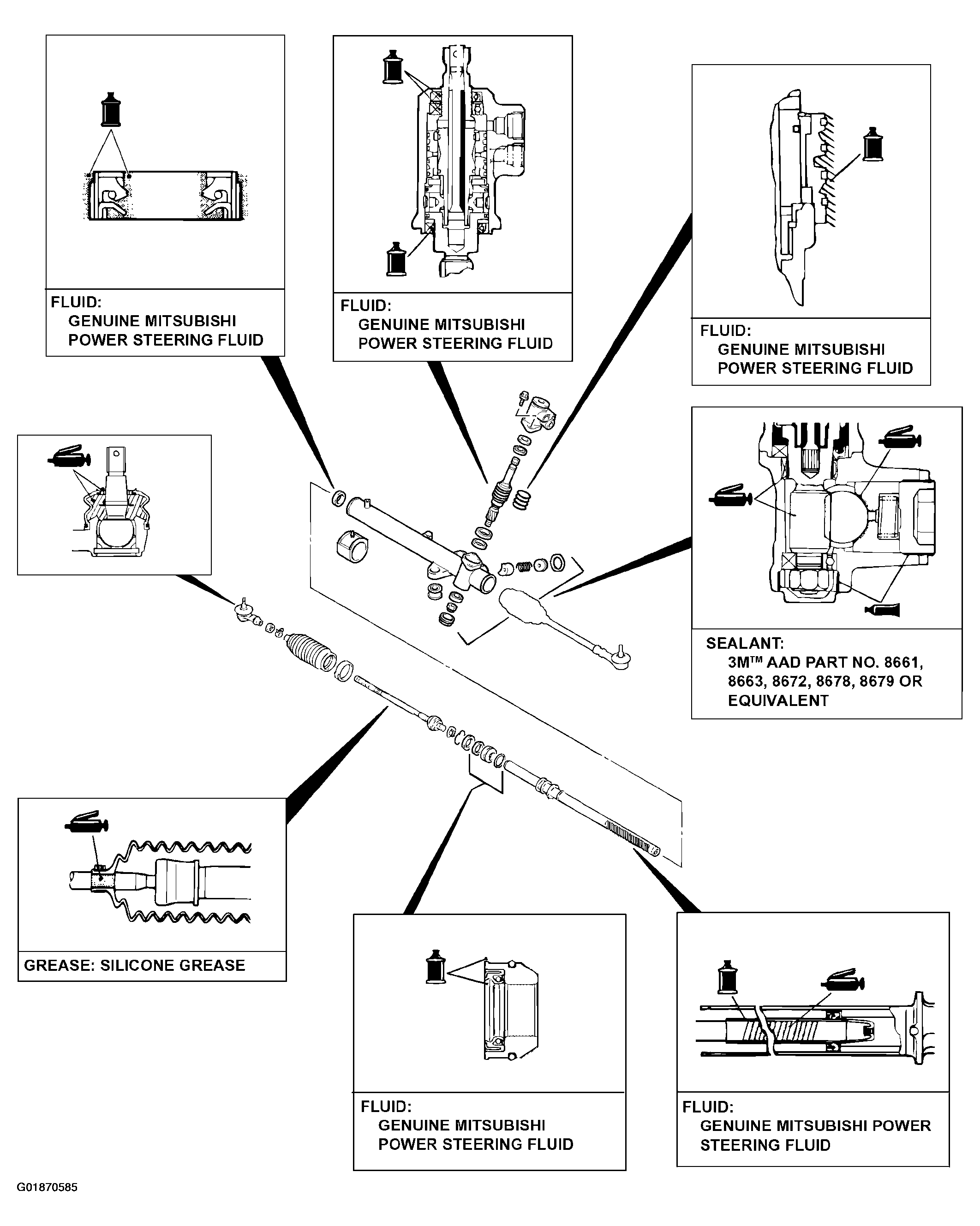

Fig 1: Identifying Lubrication And Sealing Points Location
G01870585Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
