Removal And Installation: Notes

WARNING: Before removing the steering wheel - driver's air bag module assembly, refer to DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING .

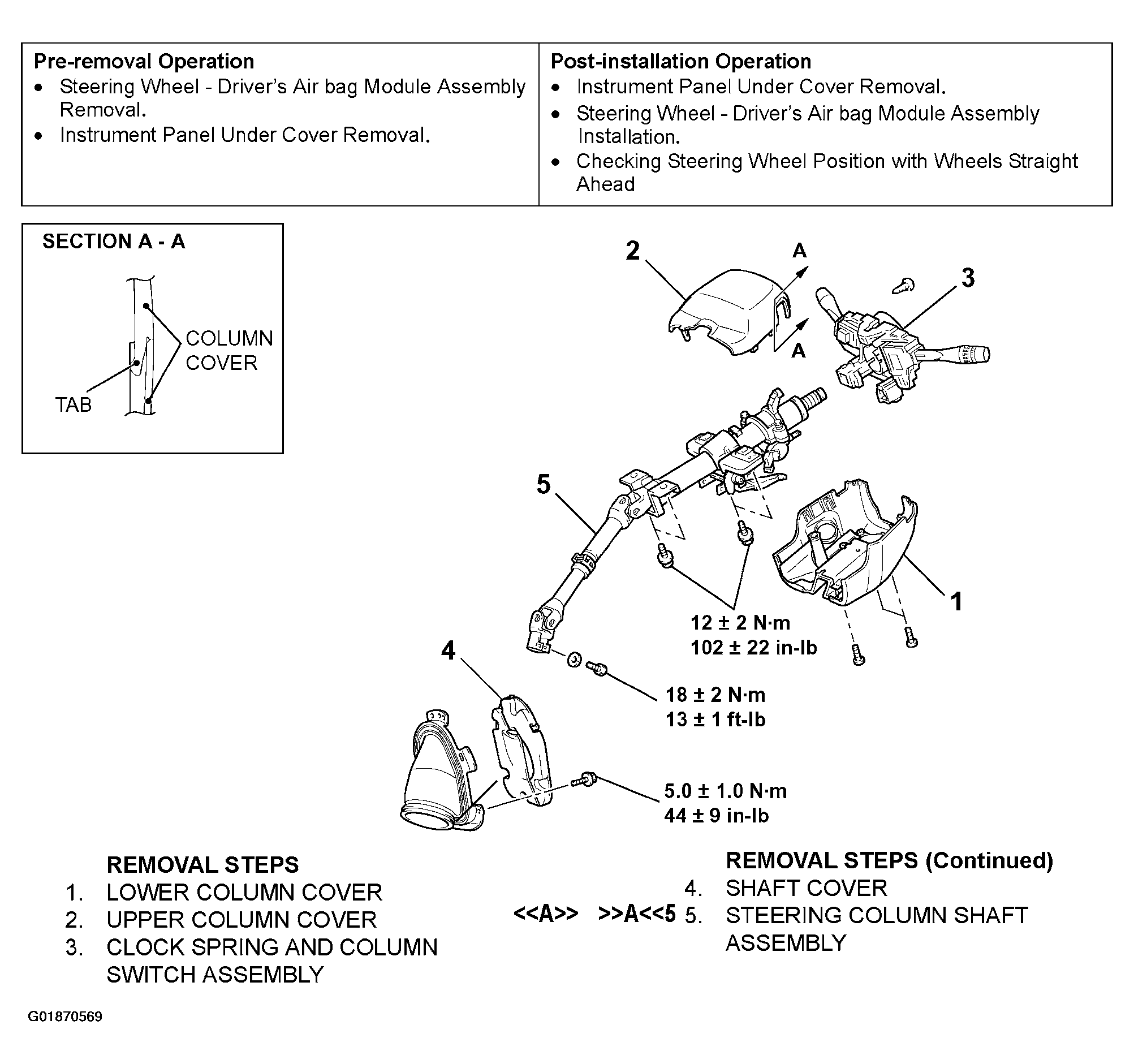

Fig 1: Exploded View And Torque Specifications Of Steering Shaft
G01870569Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
