Removal And Installation

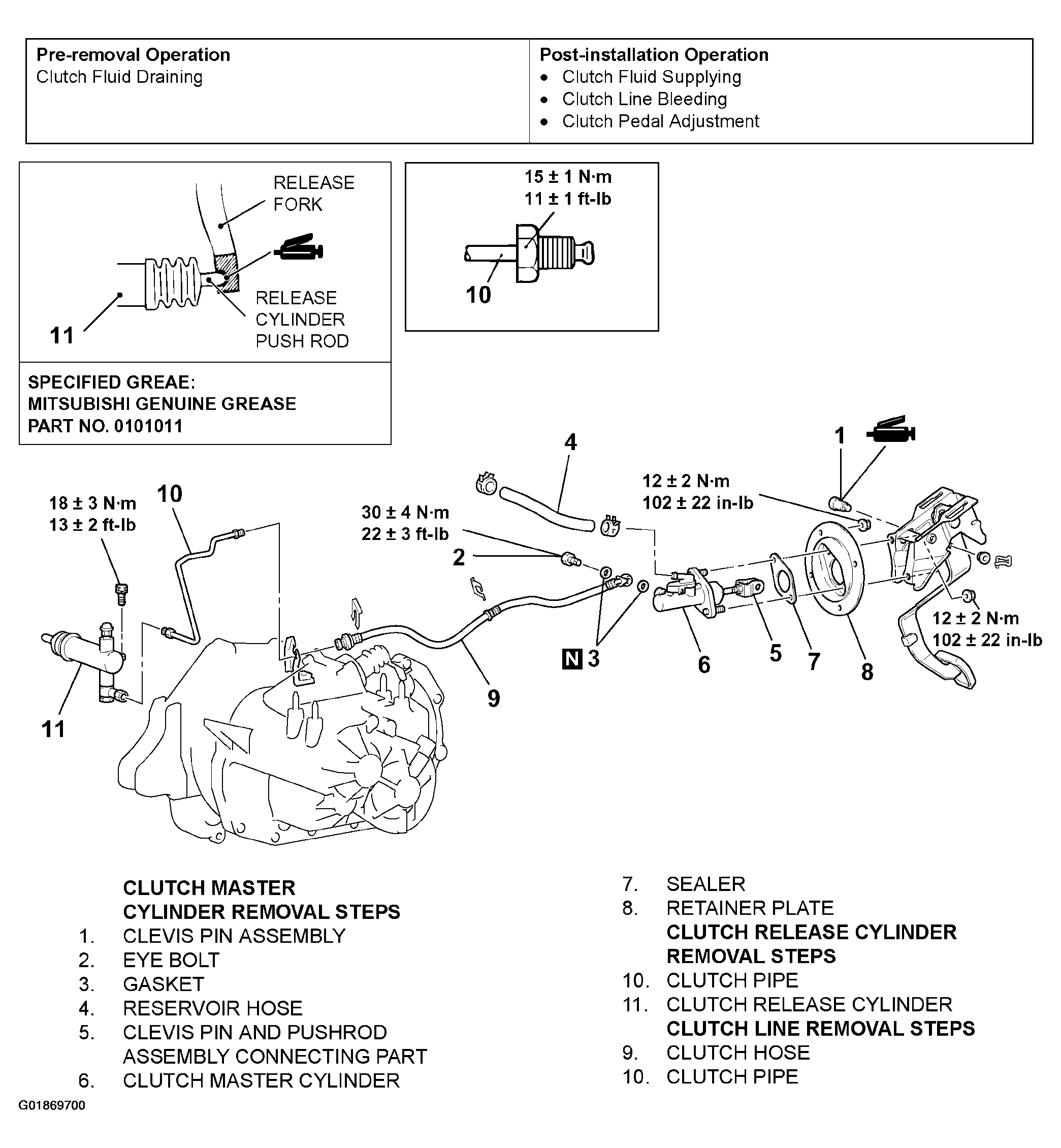

Fig 1: Exploded View Of Clutch Control
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
