Disassembly And Assembly: Notes

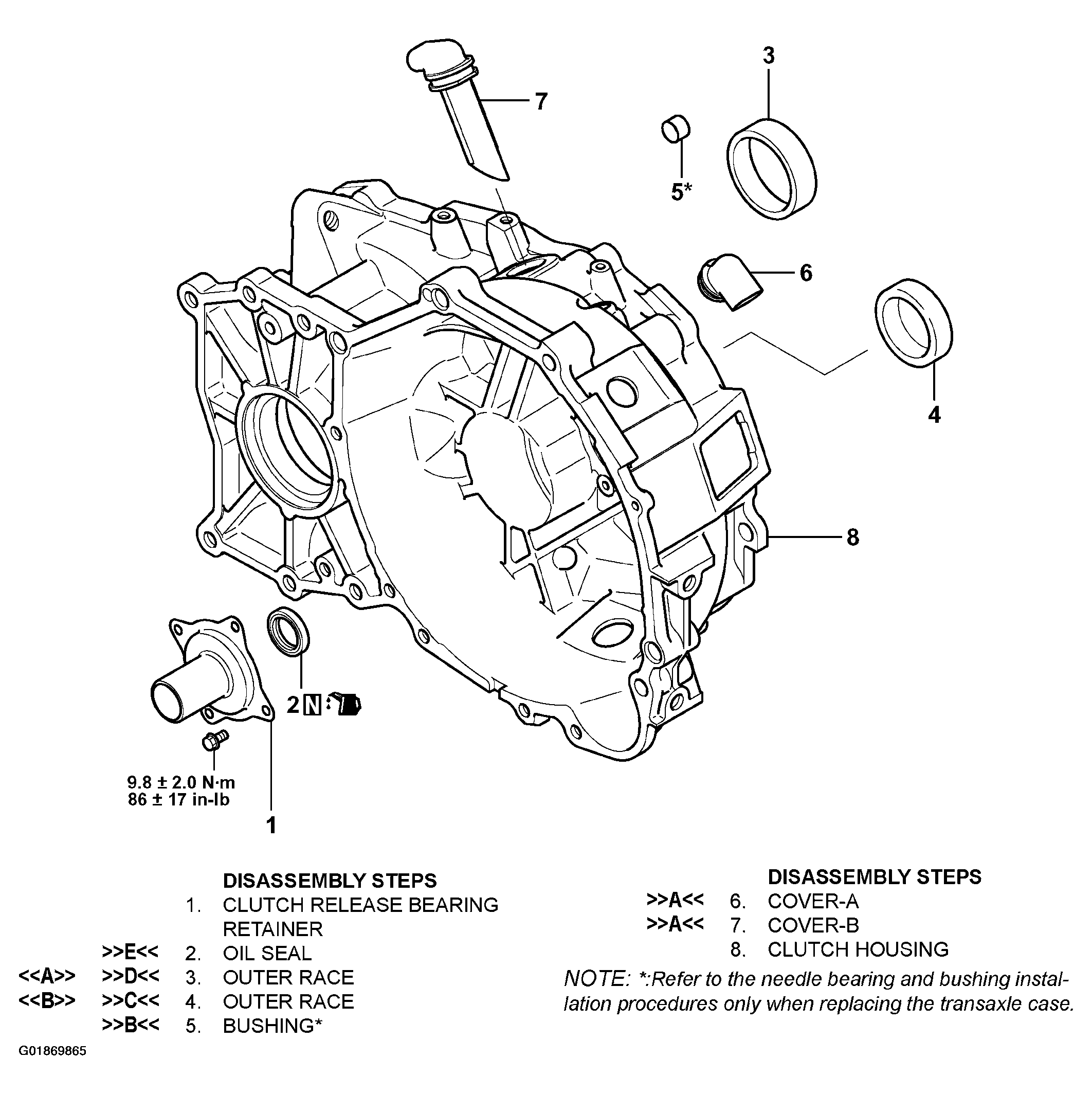

Fig 1: Exploded View Of Clutch Housing
G01869865Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: *: Refer to the needle bearing and bushing installation procedures only when replacing the transaxle case.

Required Special Tools:
