>> D << Spring Pin Installation

Drive in the spring pin so that the slit is in the direction shown in the figure.

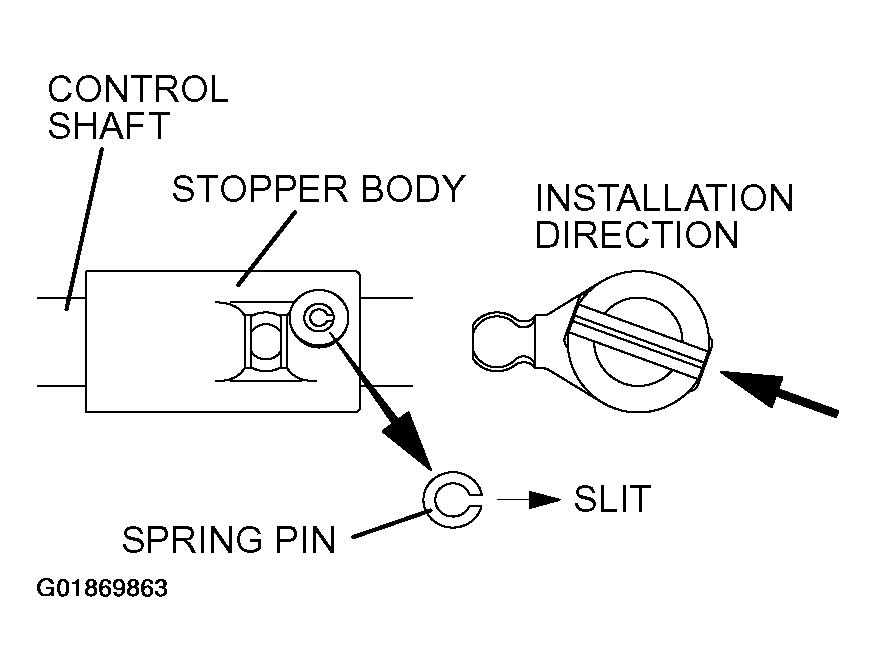

Fig 1: Identifying Installation Direction Of Spring Pin
G01869863Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
