>> E << Lock Pin Installation

Drive the lock pin in from the direction shown in the figure.

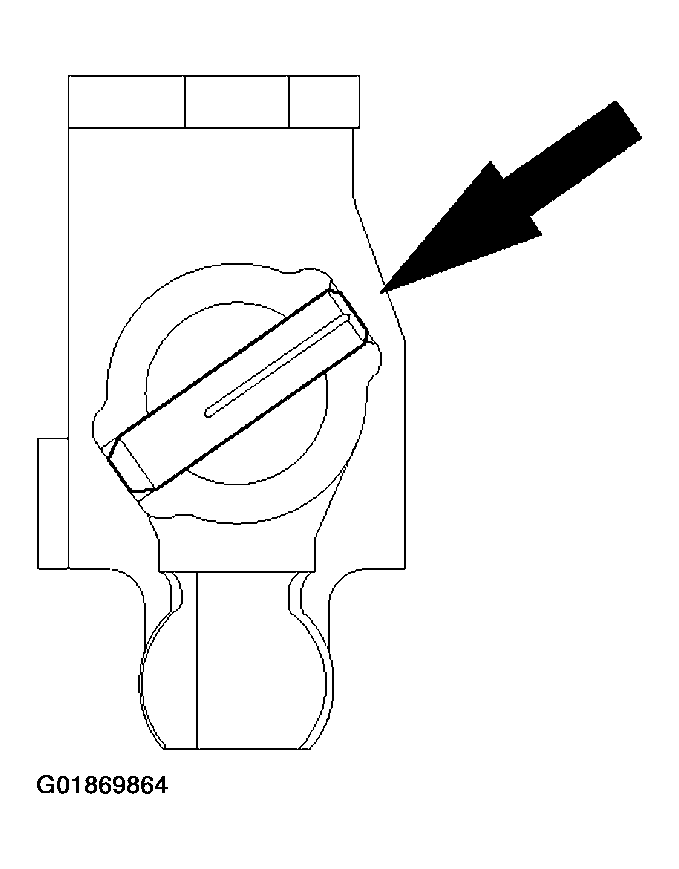

Fig 1: Installing Lock Pin
G01869864Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
