>>B<< Ball Bearing Installation

  1. Using special tool MD998801, support the 2nd speed gear portion of the input shaft, and then set them on the press.
  2. Using special tools MD998812, MD998813 and MD998818, press install the bearing with the press.

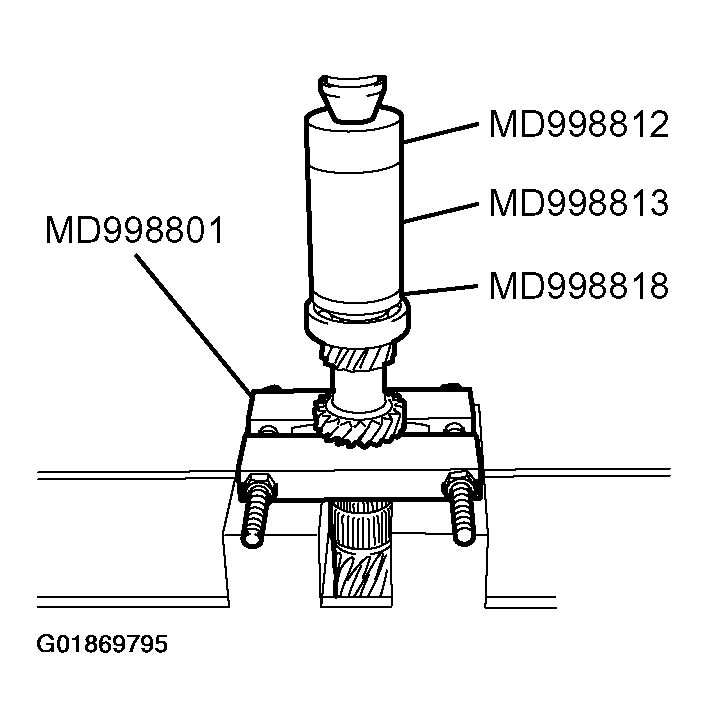

Fig 1: Installing Ball Bearing
G01869795Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
