Input Shaft: Notes

  1. Check the outside diameter of the needle bearing mounting portion for damage, abnormal wear and seizure.
  2. Check the splines for damage and wear.
  3. Check that the helical gear teeth surfaces are not damaged or worn.

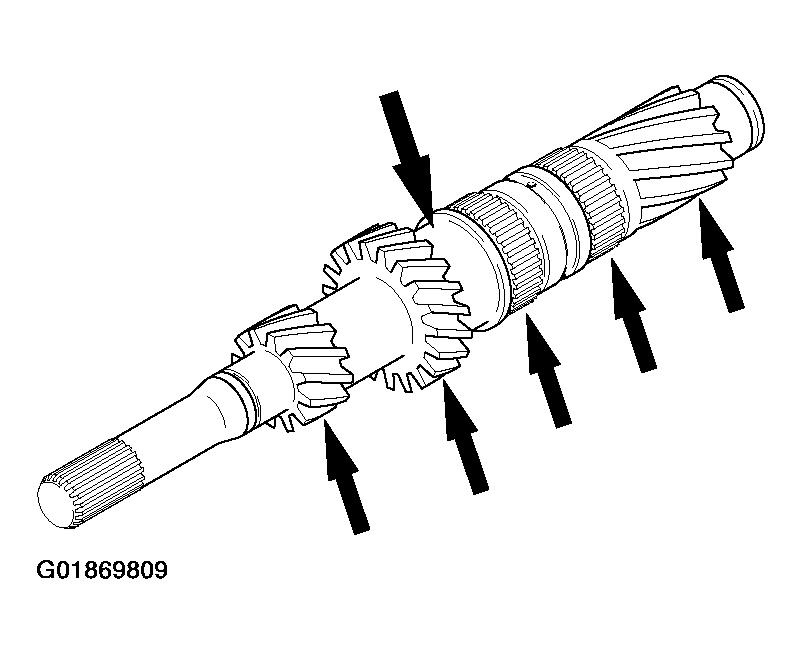

Fig 1: Checking Input Shaft
G01869809Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
