>> F << Synchronizer Sleeve Installation

  1. Check that the synchronizer sleeve is in the correct direction for installation, and install it on the 1st-2nd speed synchronizer hub.

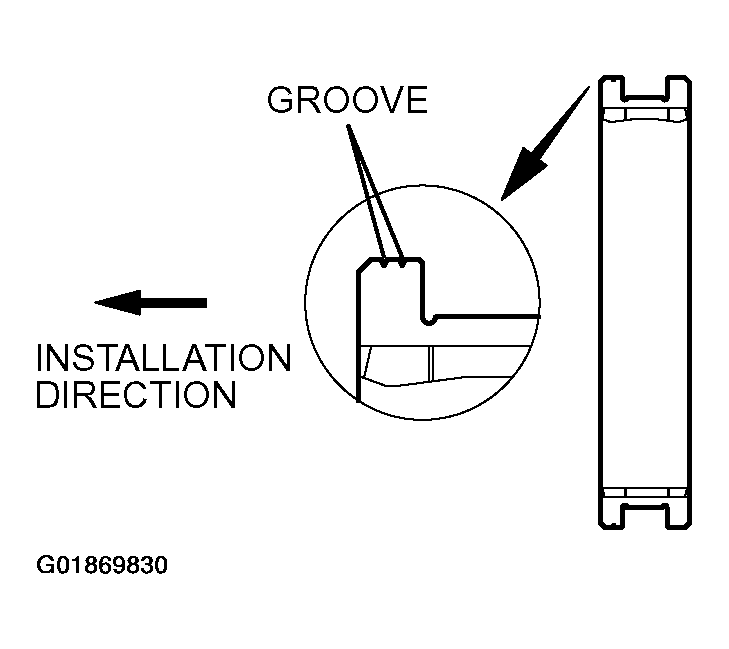

    Fig 1: Identifying Installation Direction Of Synchronizer Sleeve
    G01869830Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the synchronizer sleeve so that the areas with teeth that have raised tips (three areas total) are aligned with the areas on the synchronizer hub that have deep grooves between the teeth (three areas total).

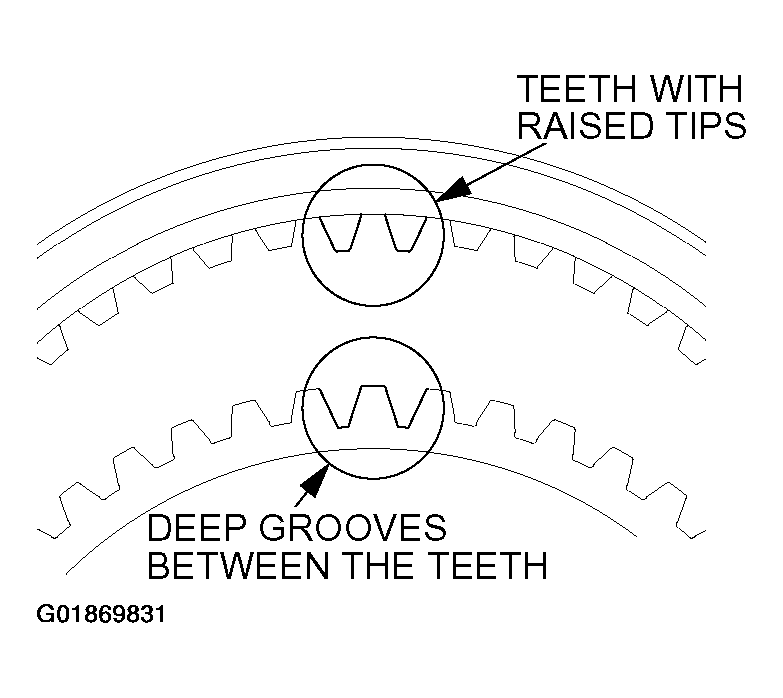

Fig 2: Aligning Synchronizer Sleeve Teeth With Raised Tips To Synchronizer Hub Deep Grooves Between Teeth
G01869831Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
