>> A << Dust Cover And Select Lever Bushing Installation

Use the figure to make sure the dust cover and select lever bushing installation direction is correct, and the distinguished parts are correctly assembled.

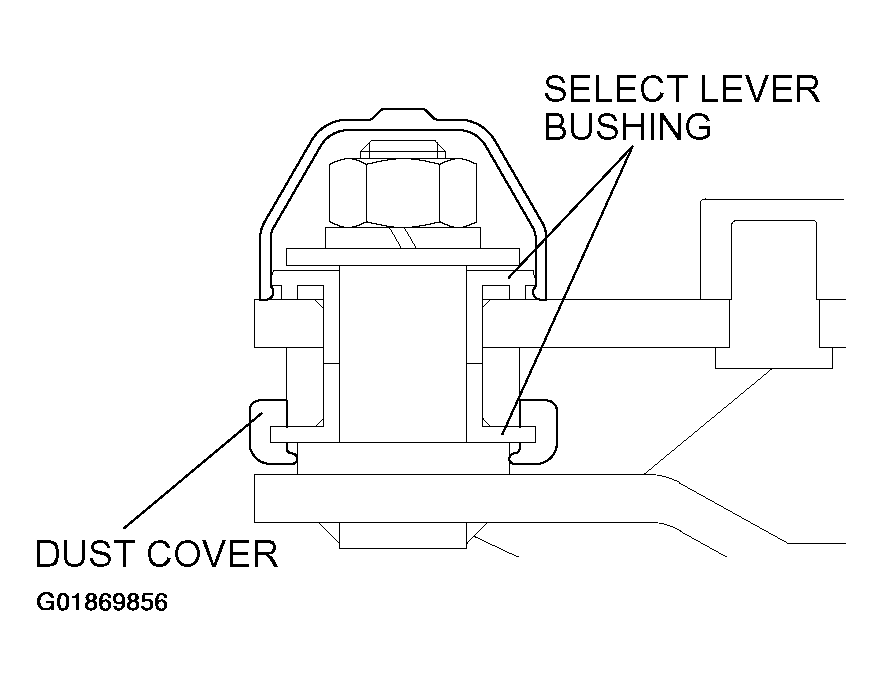

Fig 1: Identifying Select Lever Bushing And Dust Cover
G01869856Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
