>> A << Input Shaft/Output Shaft/Center Differential Installation

Install the input shaft, output shaft, output shaft and center differential as a set.

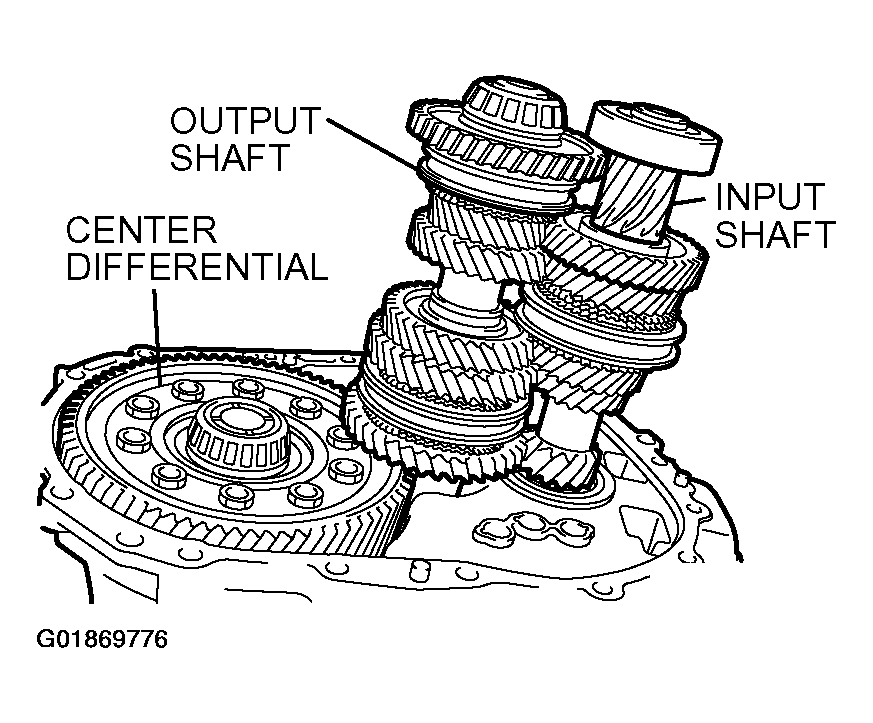

Fig 1: Installing Input, Output Shaft And Differential As A Set To Clutch Housing
G01869776Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
