>> H << Speedometer Gear Installation

  1. Apply gear oil (Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification ) to the O-ring of the speedometer gear.
  2. Tighten the bolt to specified torque.
    1. Tightening torque: 3.9 +/- 1.0 N.m (34 +/- 8 in-lb)

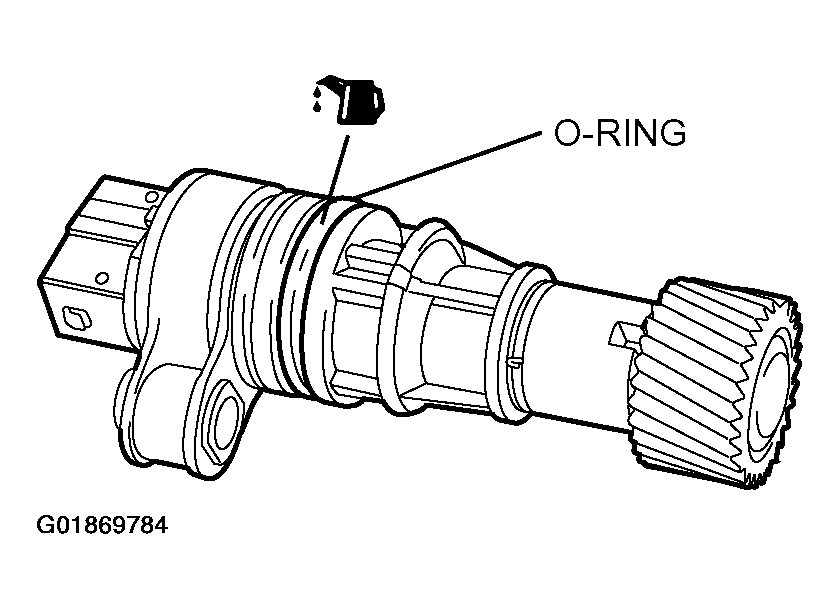

    Fig 1: Applying Gear Oil To O-Ring Of Speedometer Gear
    G01869784Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
