<< A >> Spring Pin Removal

  1. Shift the 5th-reverse shift fork in the direction shown in the illustration.
  2. Using a pin punch, remove the spring pin from the shift fork and rail.

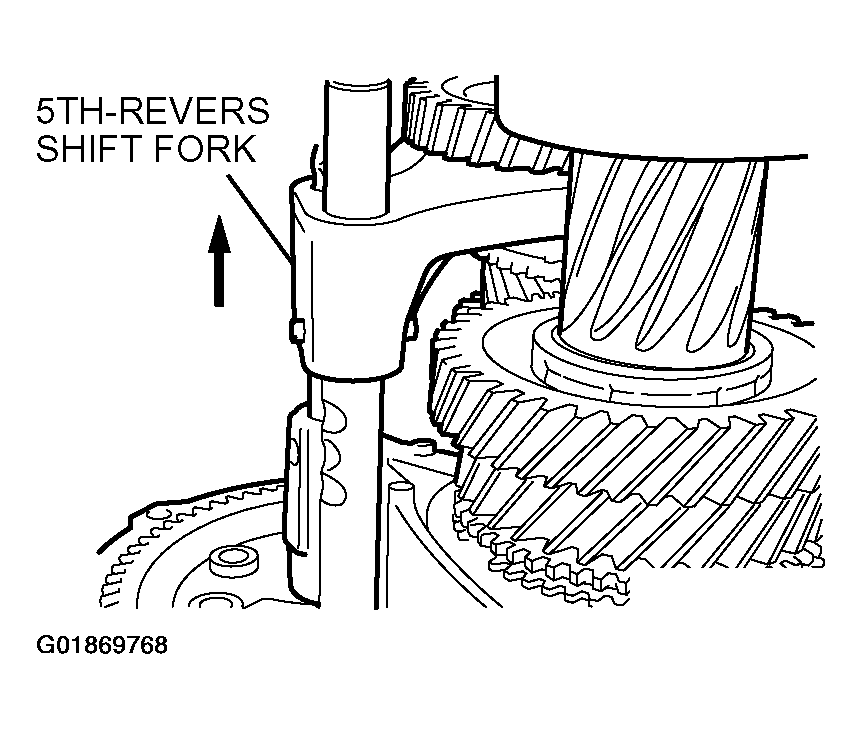

Fig 1: Identifying Direction For Shifting 5Th-Reverse Shift Fork
G01869768Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
