Backup Light Switch

Check for continuity between terminals.

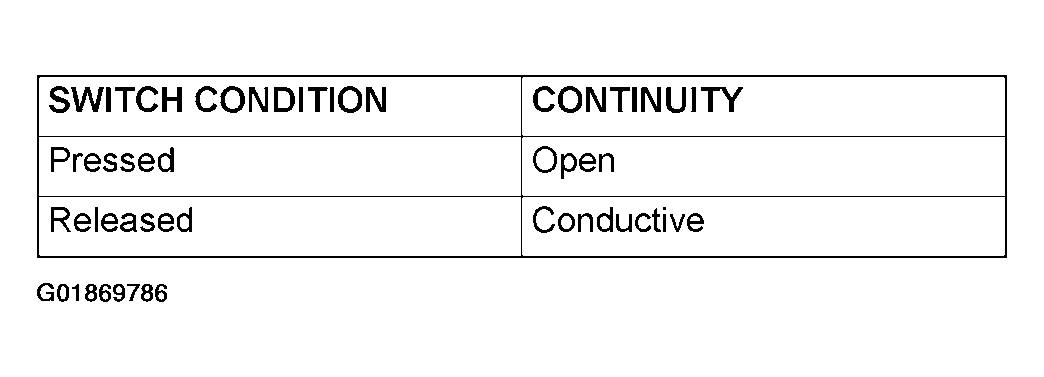

Fig 1: Backup Light Switch Continuity Chart
G01869786Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

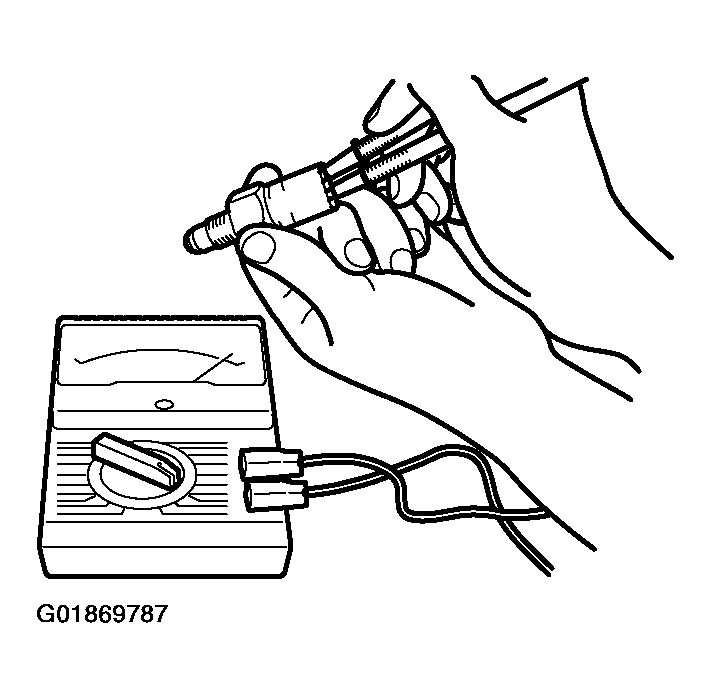

Fig 2: Checking Continuity Between Terminals Of Backup Light Switch
G01869787Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
