>> A << Bushing Installation

Press fit the bushing so the seam is away from the air vent.

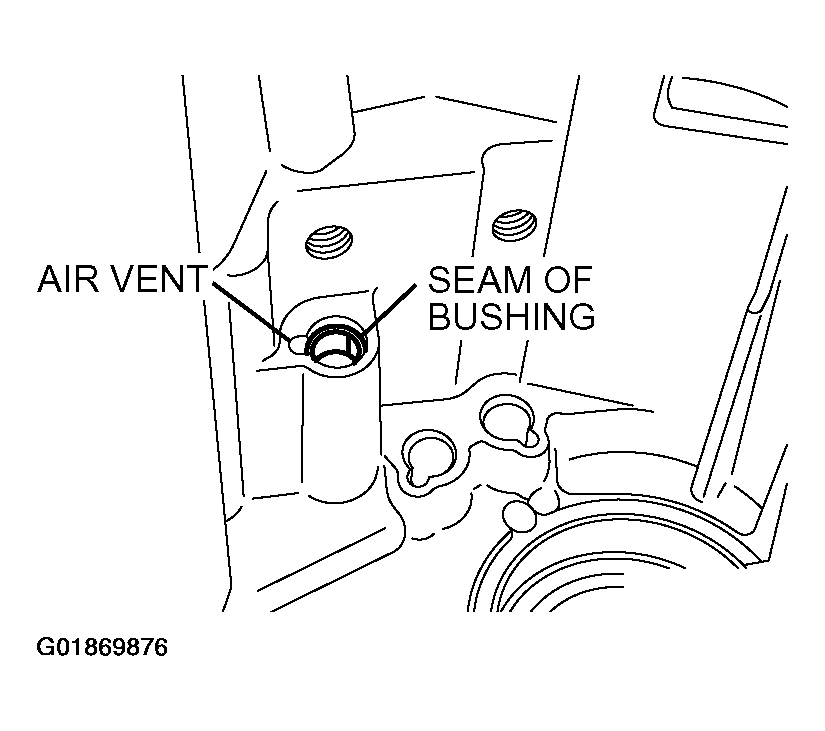

Fig 1: Identifying Seam Of Bushing And Air Vent
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Be sure the bushing is fully seated as shown. It must be 3 mm (0.12 inch) below the housing surface.

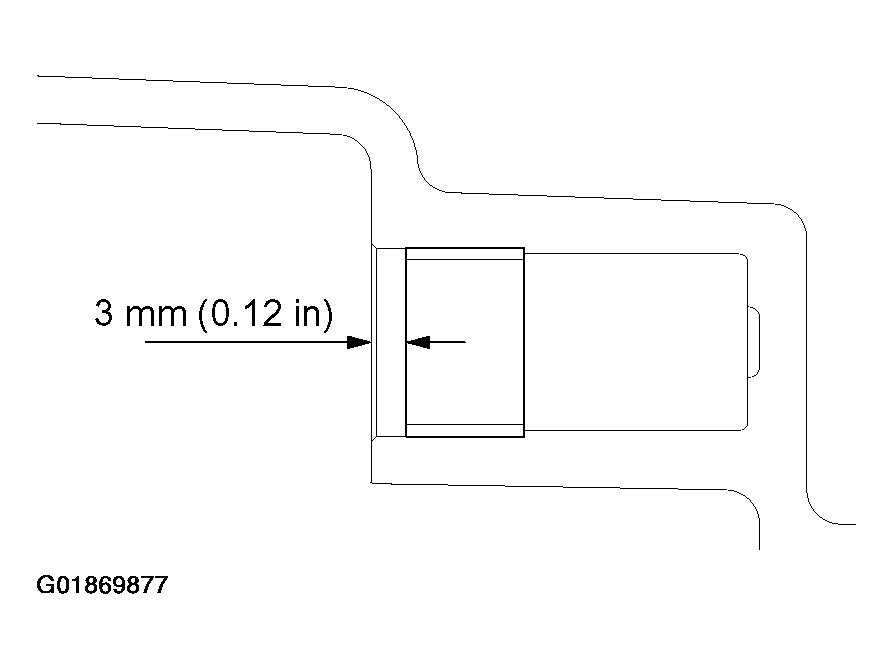

Fig 2: Identifying Clearance Between Bushing And Housing Surface

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
