Engine Control Module

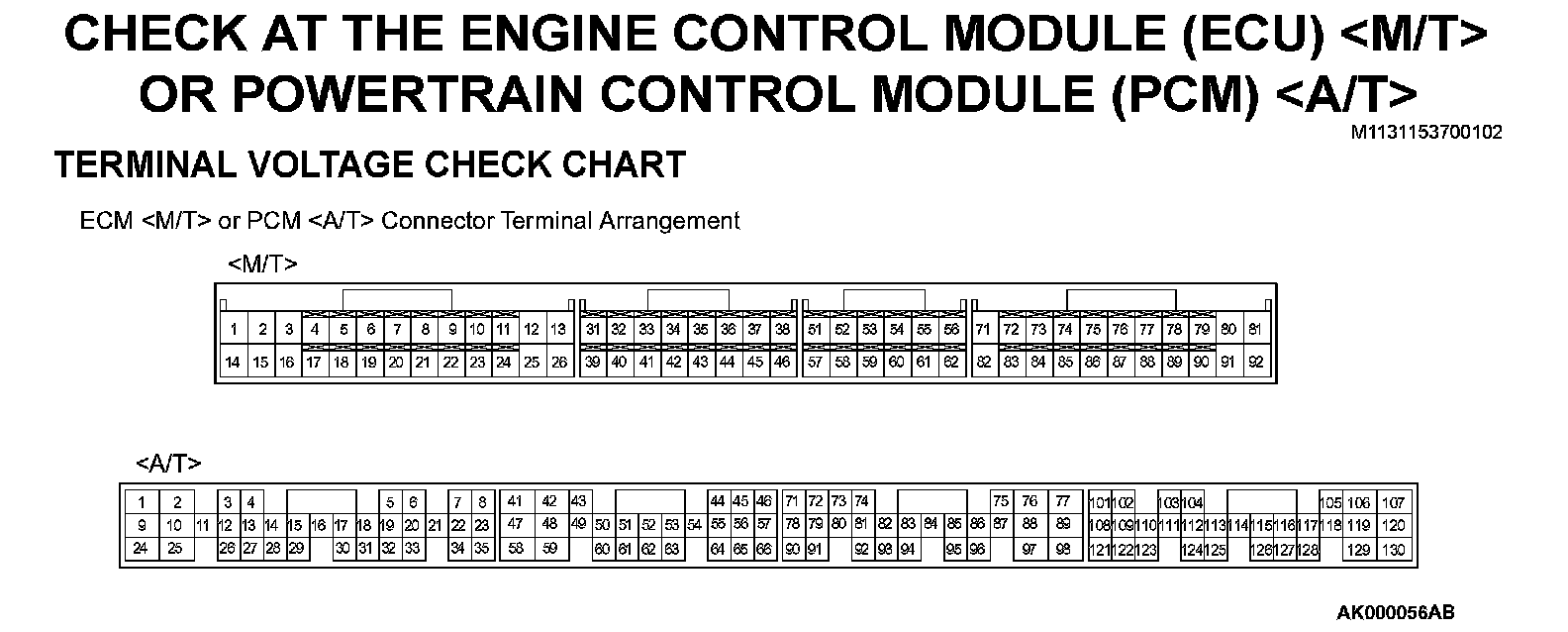

ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 1:

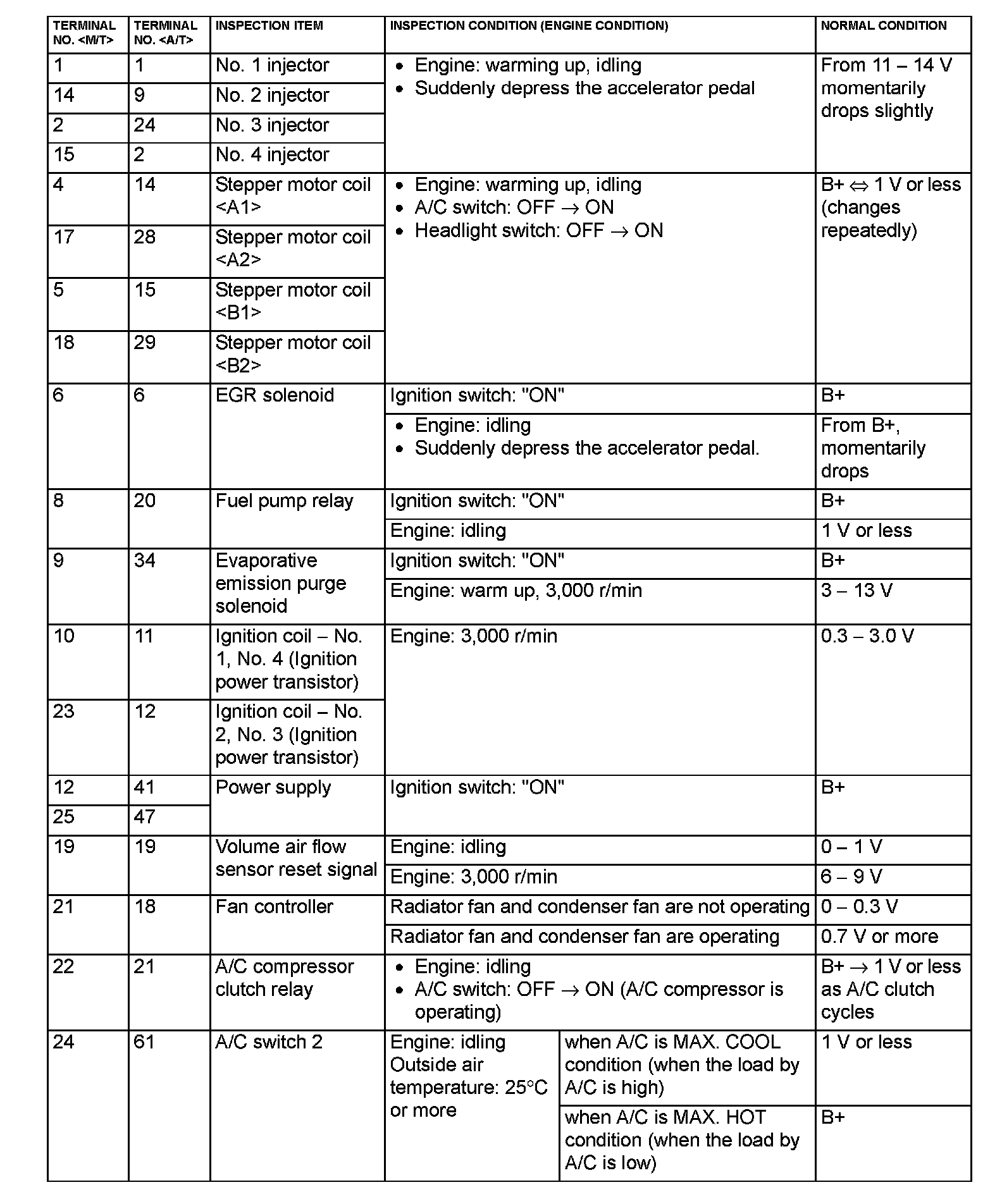

ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 2:

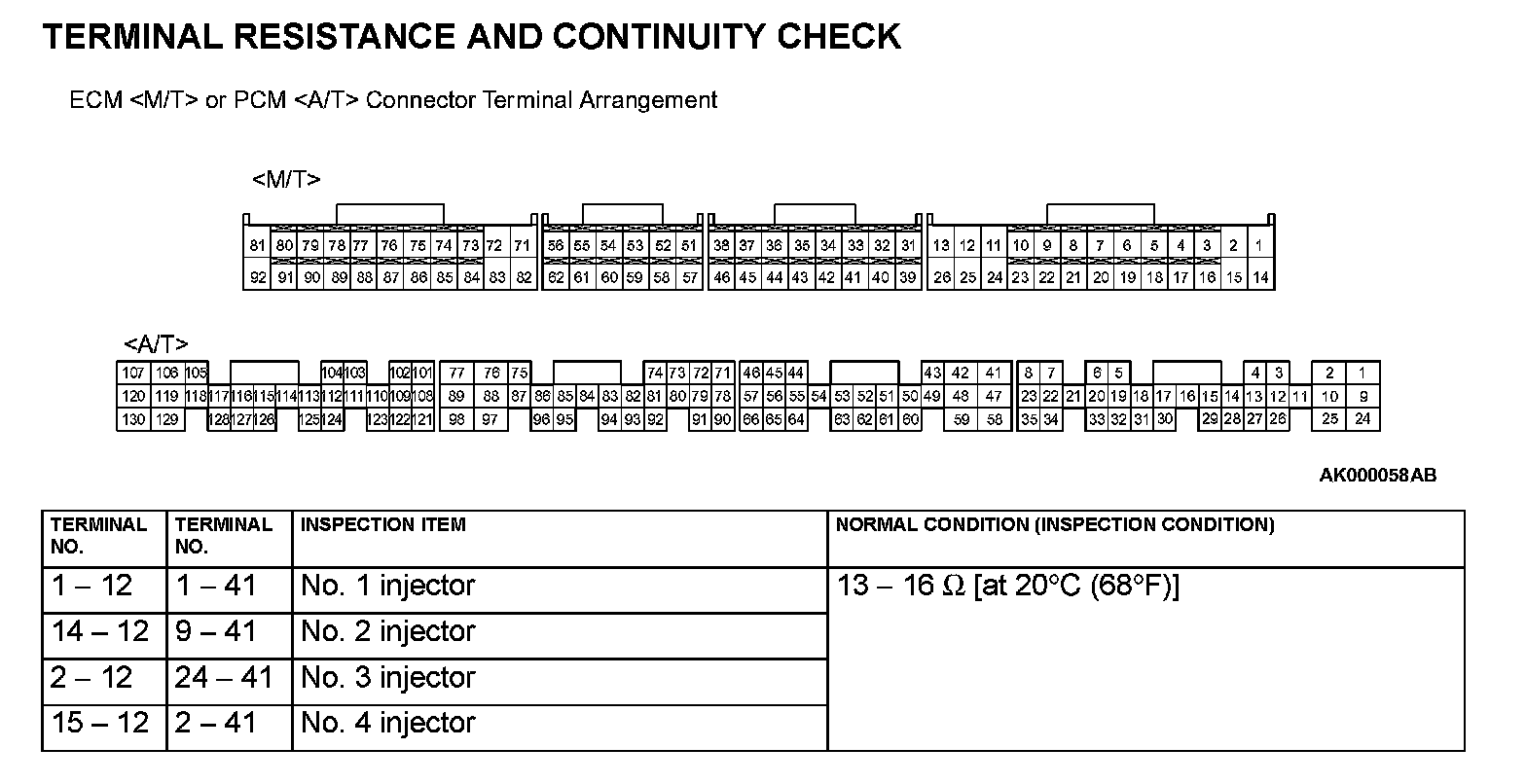

ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 1:

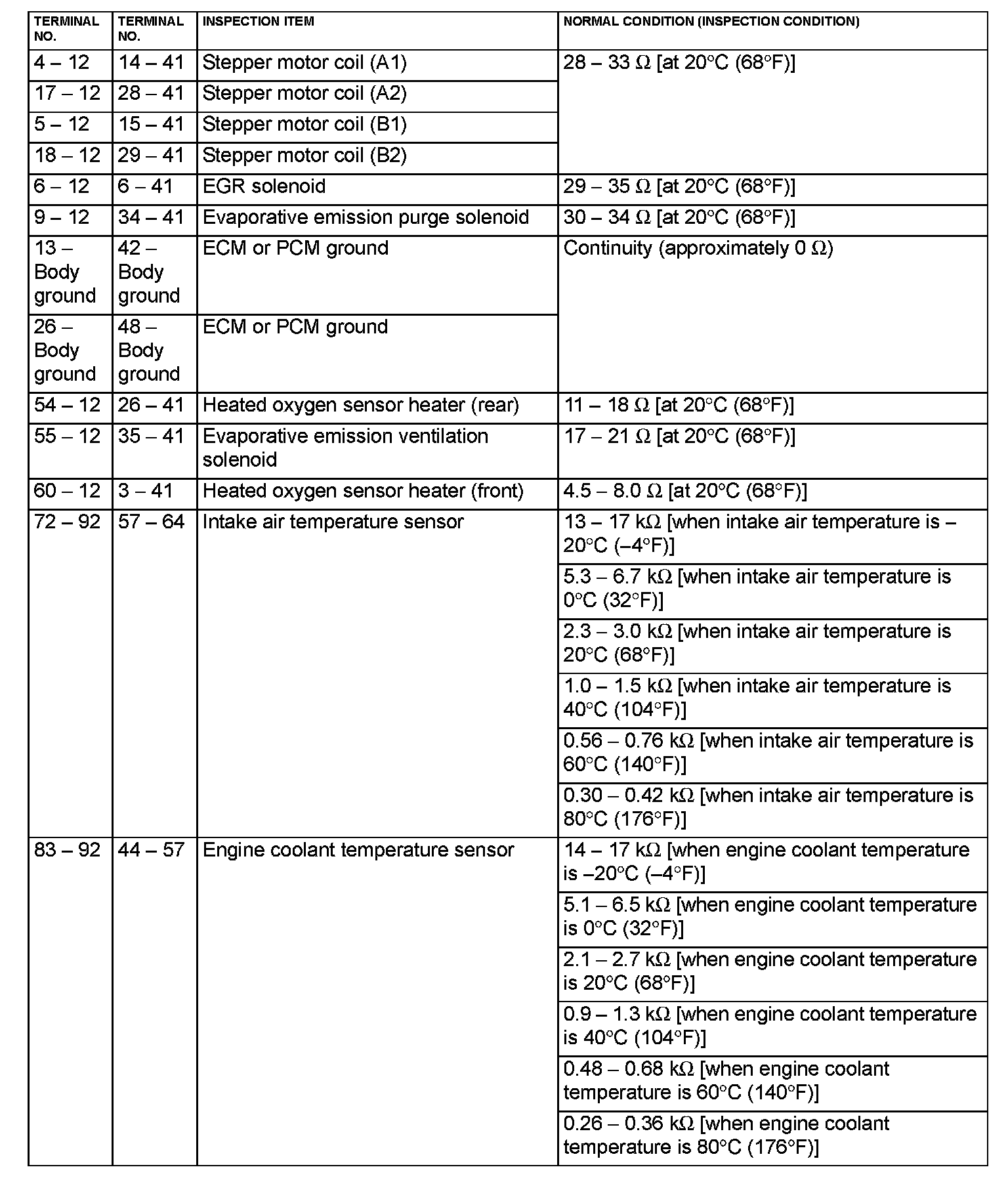

ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 2:



ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 3:



ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 4:



ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 5:
