INSPECTION PROCEDURE 16: Transaxle won't Downshift under Load with Auto-cruise Engaged.: Notes

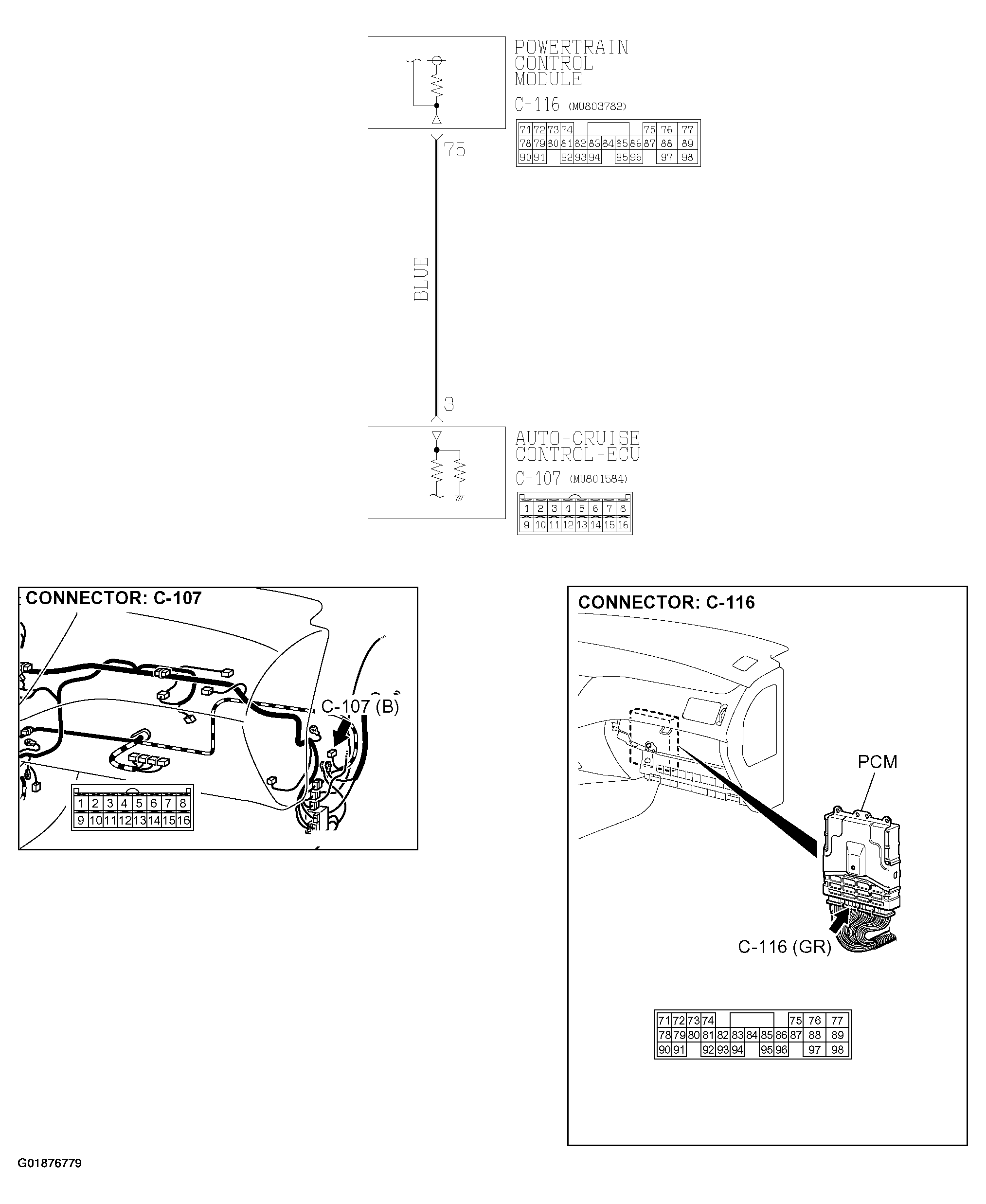

Fig 1: Auto Cruise Signal Line System Circuit Diagram
G01876779Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
