Key Reminder Switch And Ignition Key Ring Antenna Continuity Check

Ignition key reminder switch continuity check. Disconnect key reminder switch connector C-88 without removing the ignition switch and steering lock cylinder. Then check the continuity.

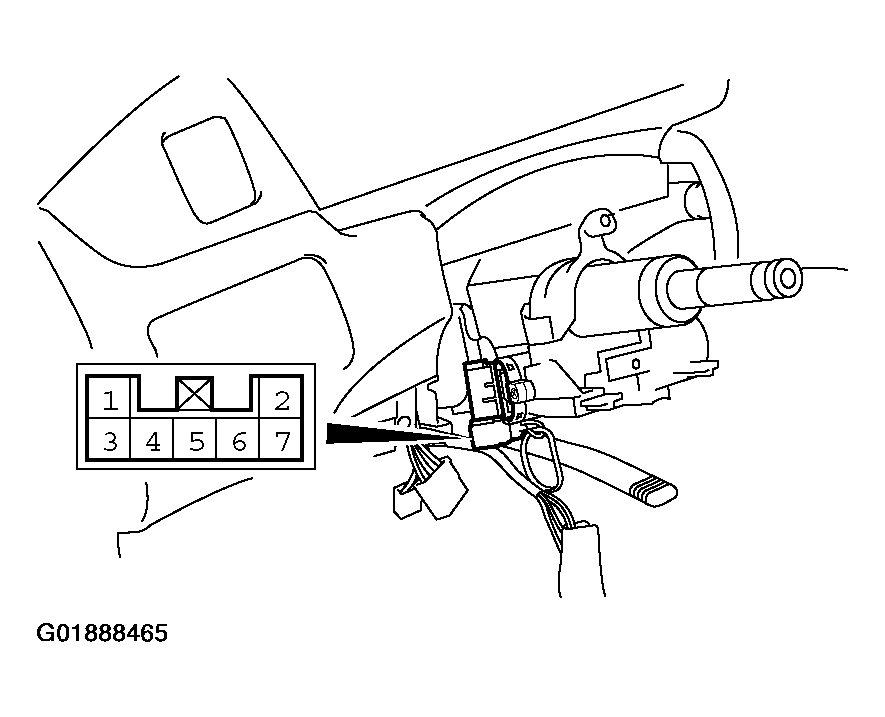

Fig 1: Checking Ignition Key Reminder Switch Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Ignition Key Reminder Switch Continuity Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Ignition key ring antenna check.
Check for continuity between terminal 3 and terminal 7.
1. Standard value: 2ohm or less
