Active Test Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

When conducting active test, vehicle must be stationary.
When ABS warning lamp stays on, never conduct active test.

Turn ignition switch OFF.

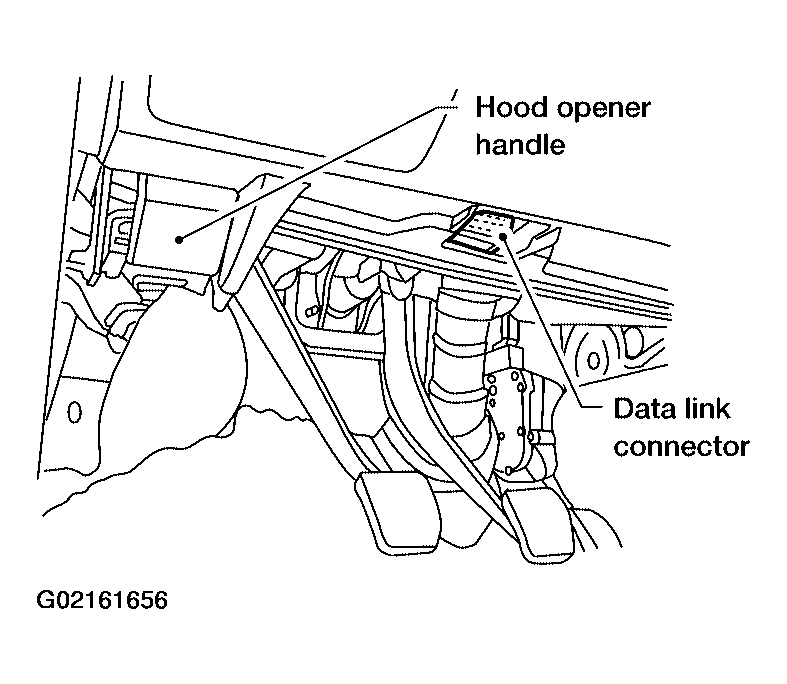

Fig 1: Connecting CONSULT-II To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect CONSULT-II to data link connector.
Start engine.
Touch "START" on CONSULT-II screen.

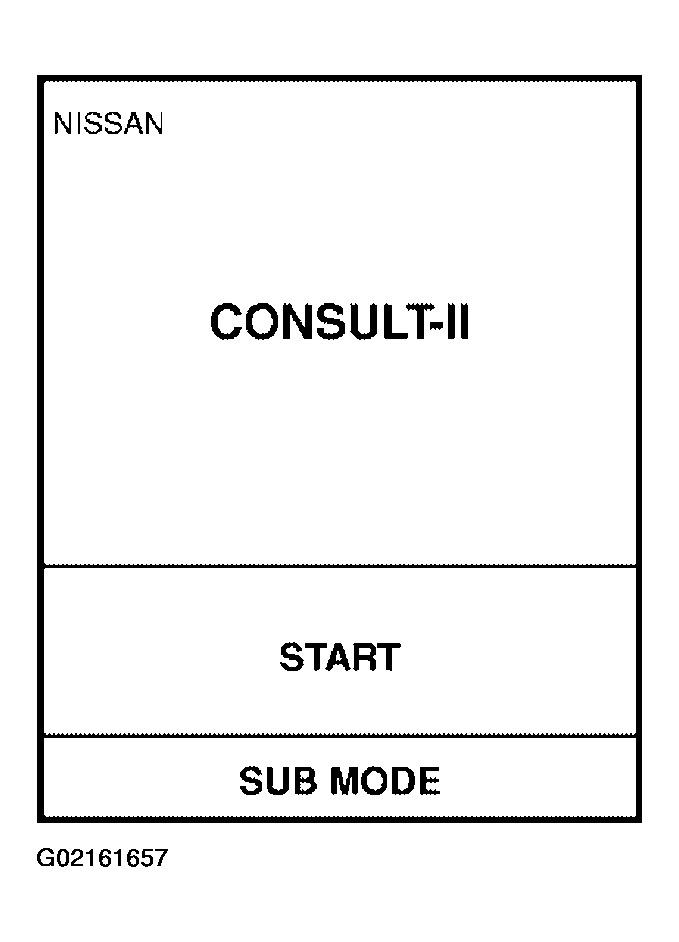

Fig 2: Displaying CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS".

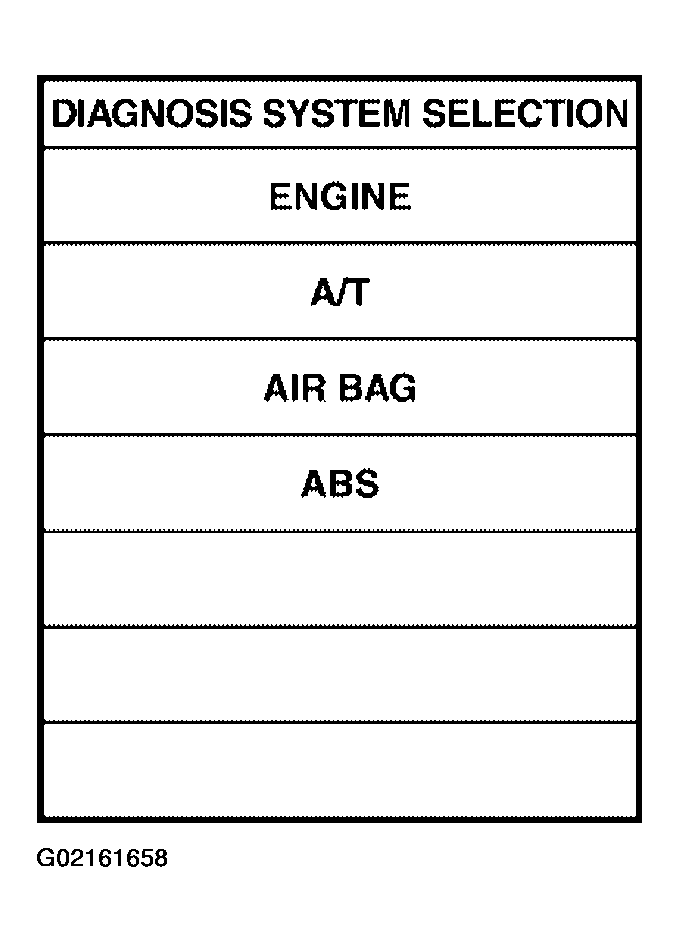

Fig 3: Displaying Diagnosis System Selection
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ACTIVE TEST".

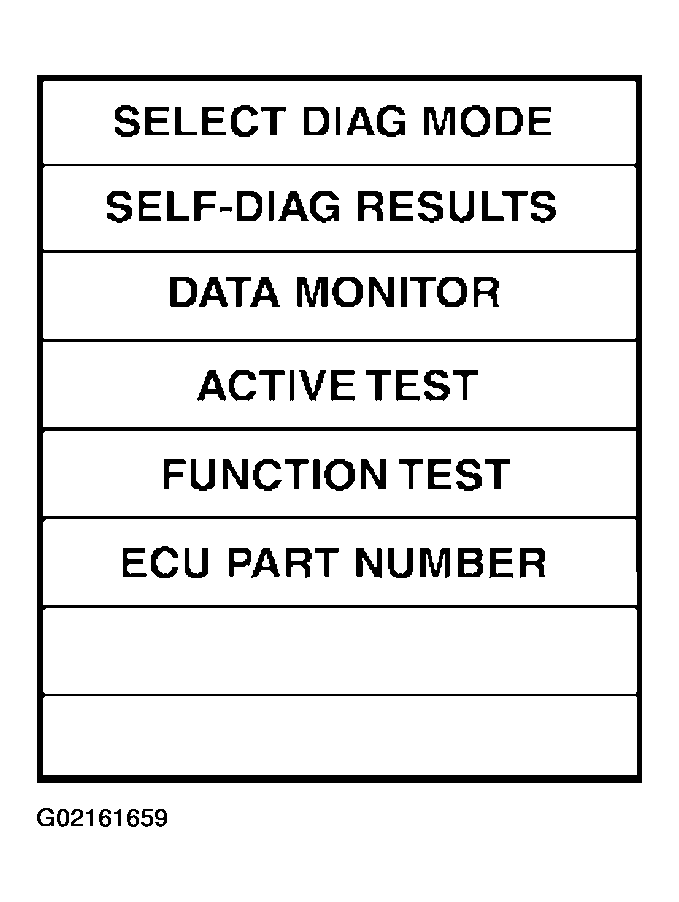

Fig 4: Displaying Self-Diag Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Select active test item by touching screen.

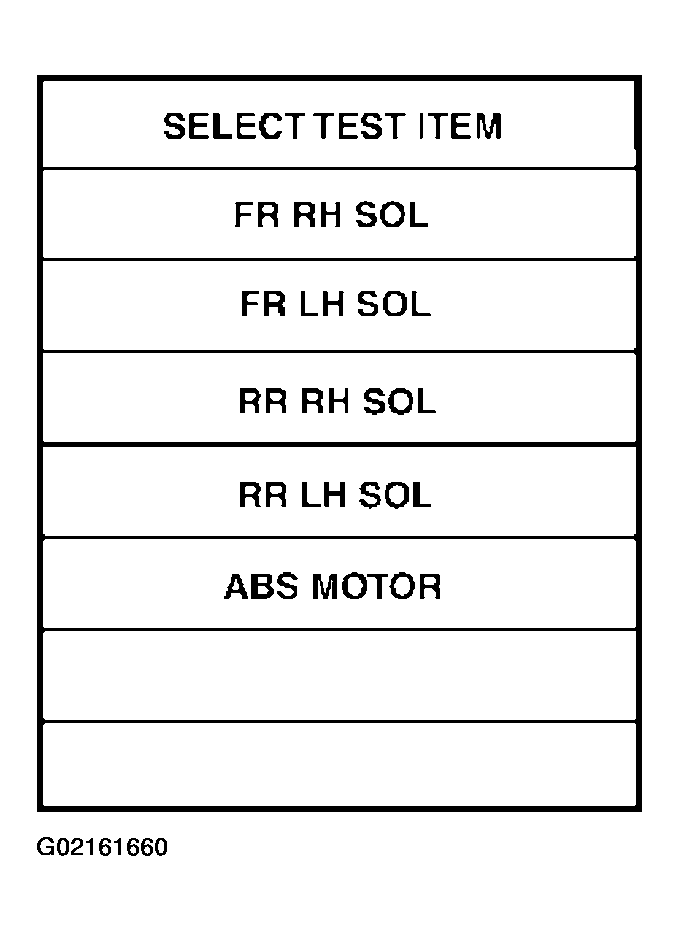

Fig 5: Displaying Select Test Item
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".
Carry out the active test by touching screen key.
