Fuel gauge unit (main)

WARNING: This page is about a different variant/trim than selected.

Move the float and measure height A at point "F" (highest) and B at point "E" (lowest) with the float arm touching stopper.
1. Standard value:
- A: 33.3 +/- 2 mm (0.95 inch)
- B: 121.9 +/- 2 mm (5.97 inches)
Adjust the float arm to the standard value, then go to the thermistor check.

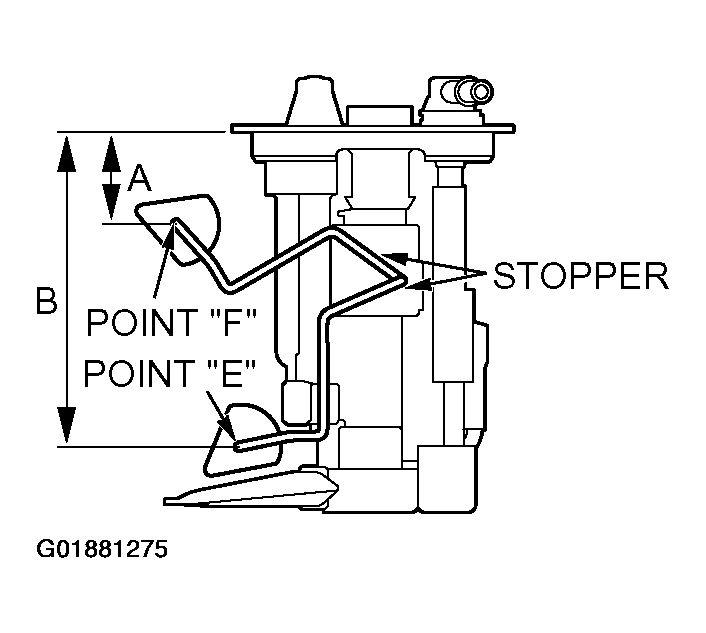

Fig 1: Identifying Fuel Gauge Unit Float Height (Main)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
