<< C >> Transaxle Assembly Removal

WARNING: This page is about a different variant/trim than selected.
  1. Pre-tighten the 2 bolts on the car to assemble the radiator support upper insulator to set the special tools MZ203827, MB991895 or MB991928.
  2. Remove the transaxle assembly. (Refer to appropriate TRANSAXLE article.)

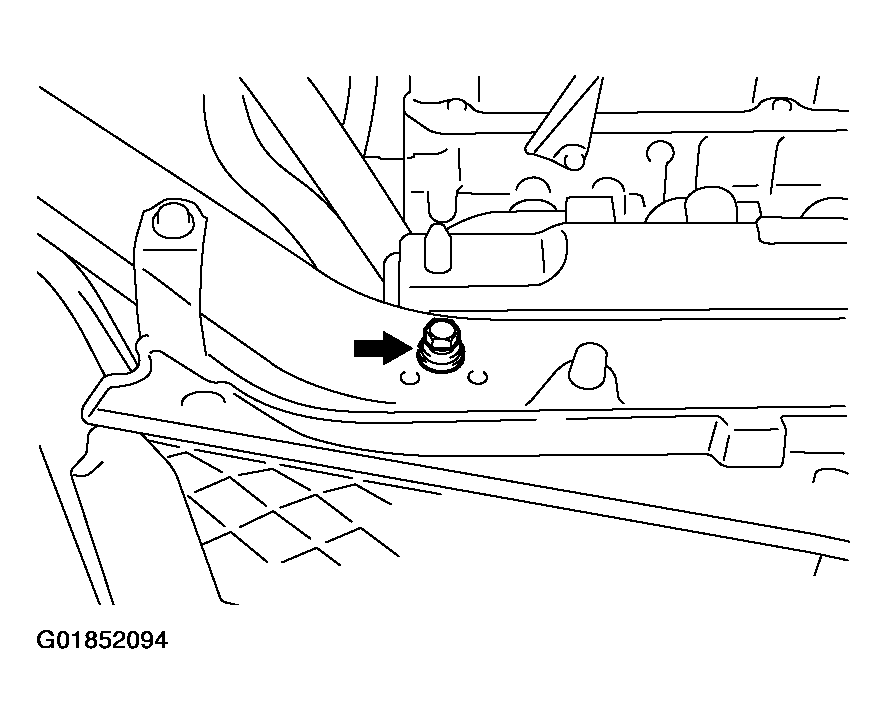

    Fig 1: Pre-Tightening 2 Bolts On Car To Assemble Radiator Support Upper Insulator
    G01852094Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
