Road Test

Check using the following procedures.

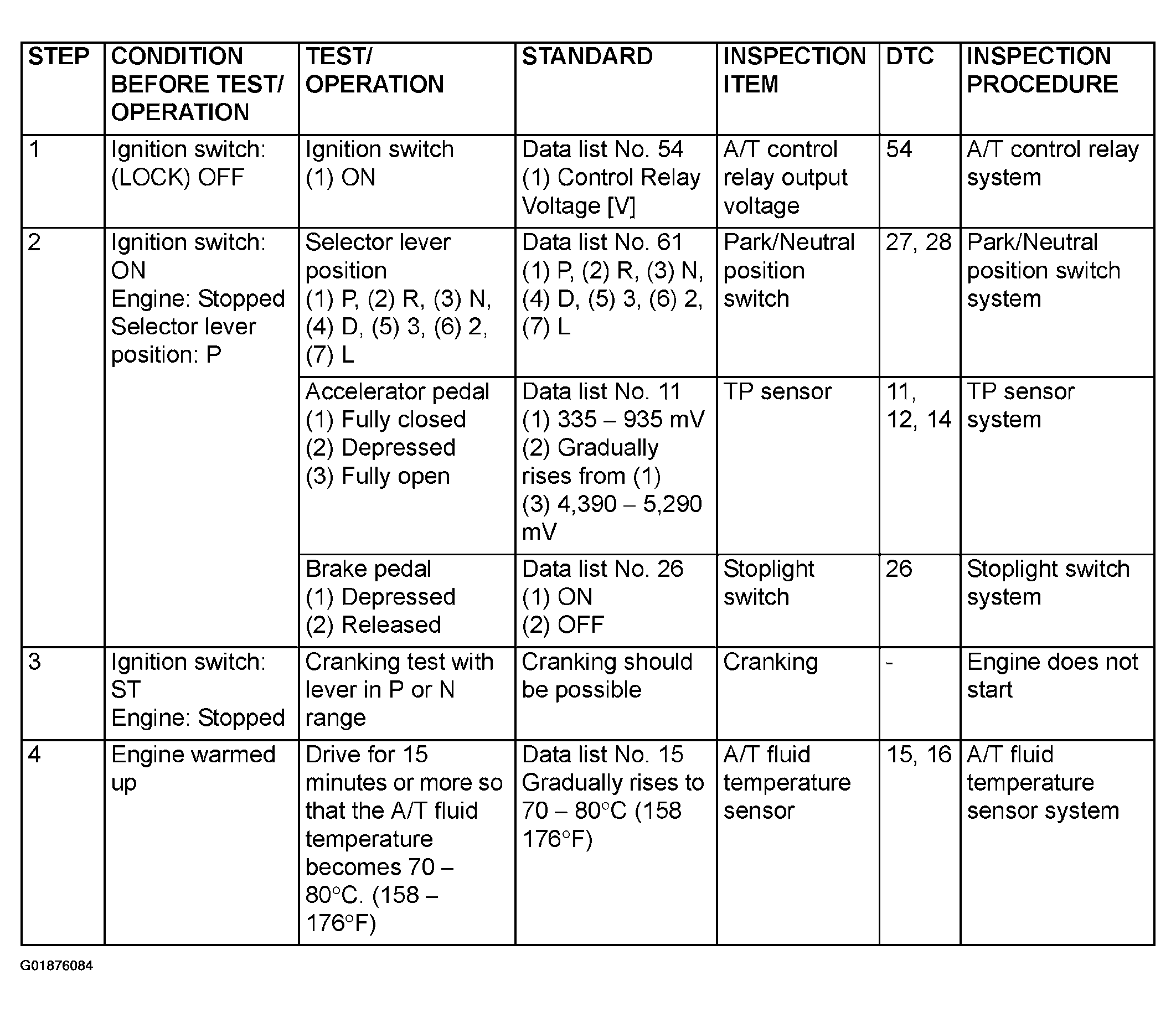

Fig 1: Road Test Chart (1 Of 6)

G01876084

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

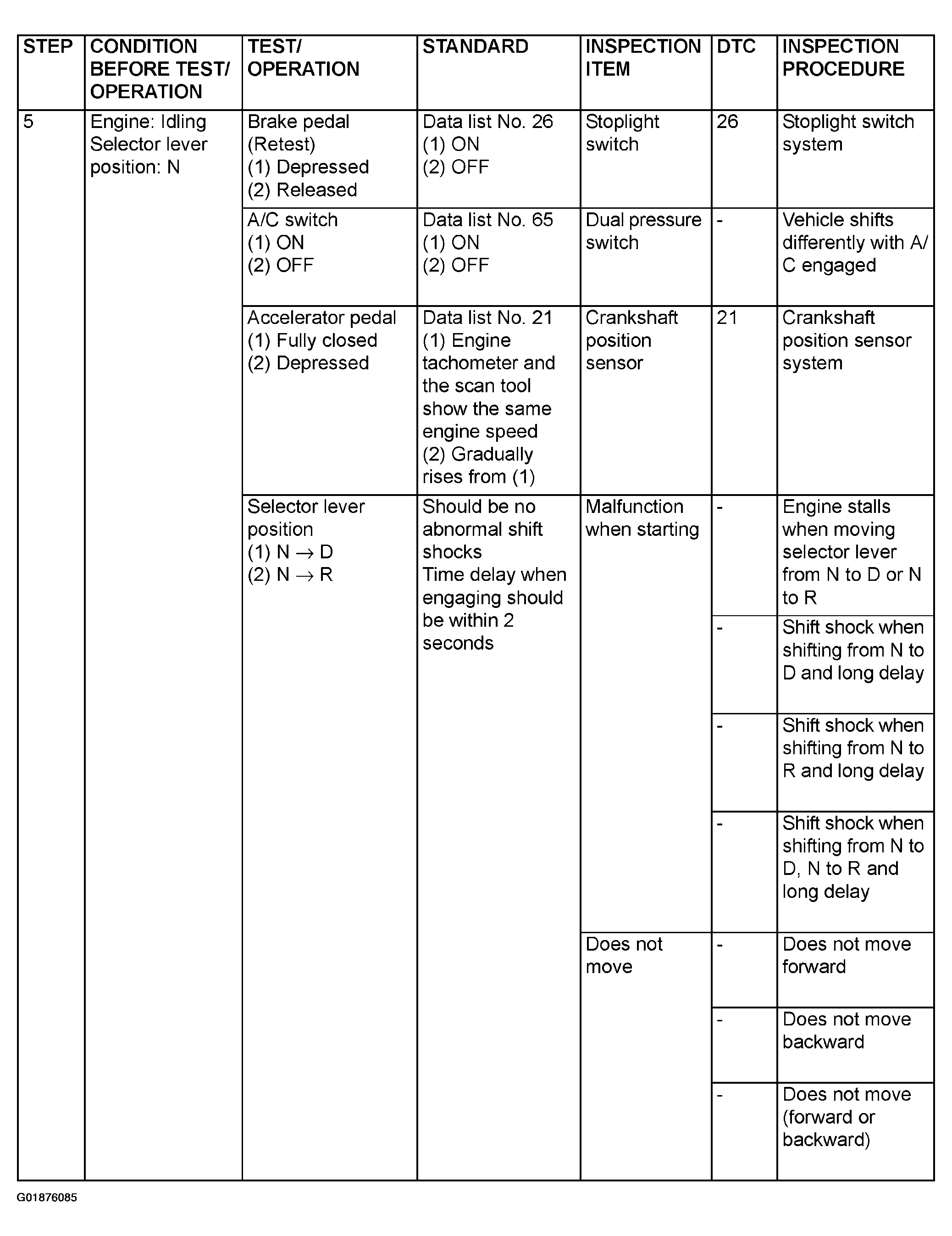

Fig 2: Road Test Chart (2 Of 6)

G01876085

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

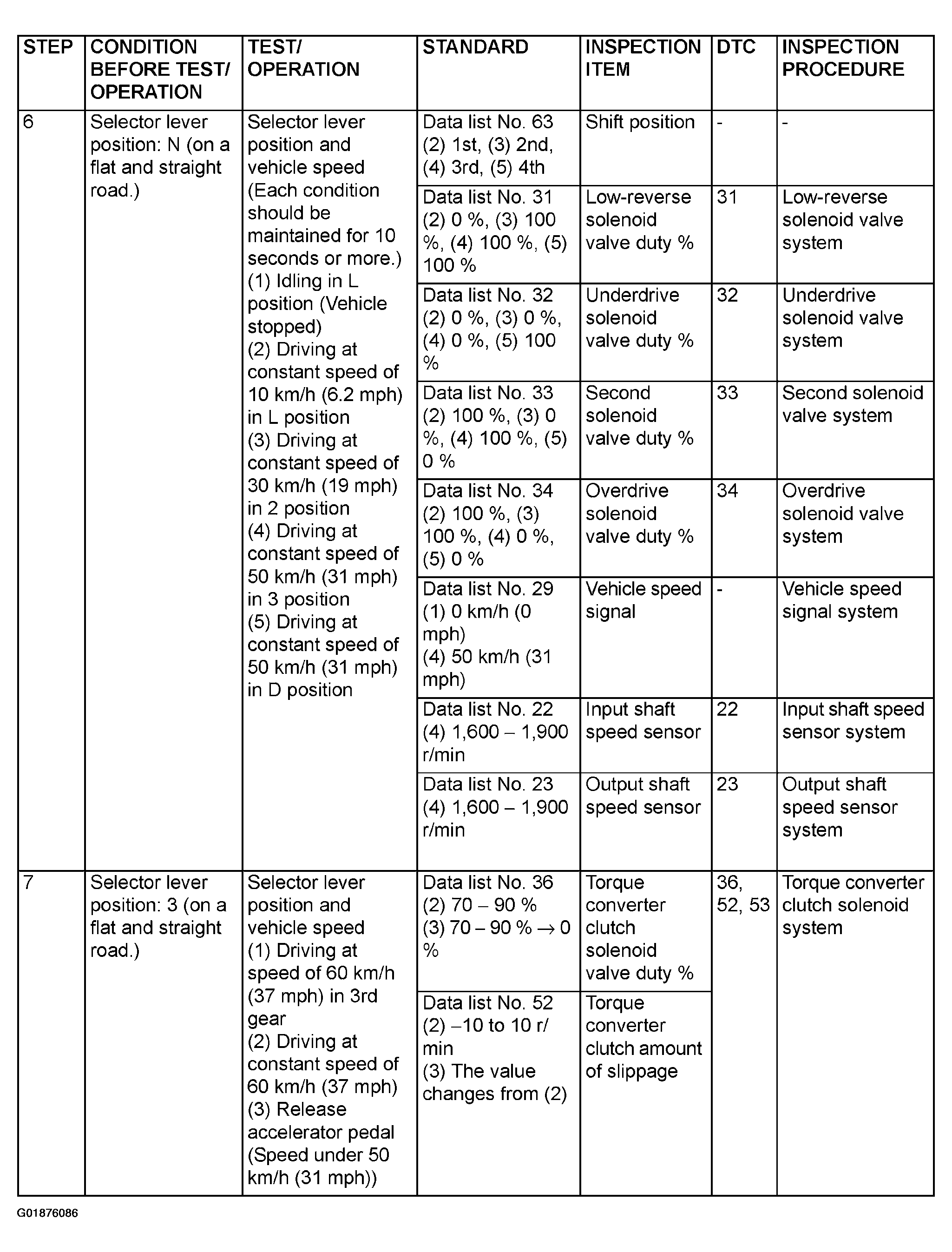

Fig 3: Road Test Chart (3 Of 6)

G01876086

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

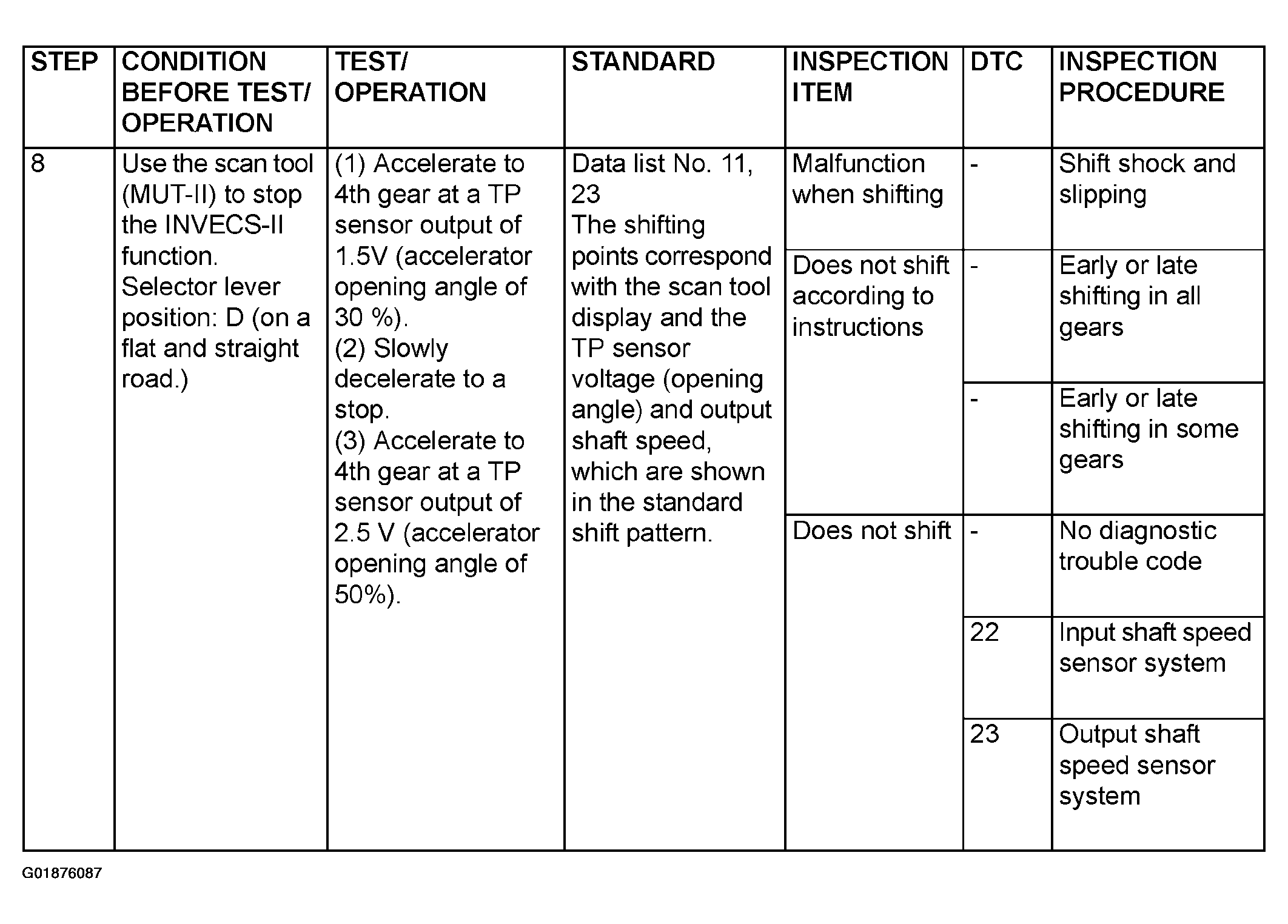

Fig 4: Road Test Chart (4 Of 6)

G01876087

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

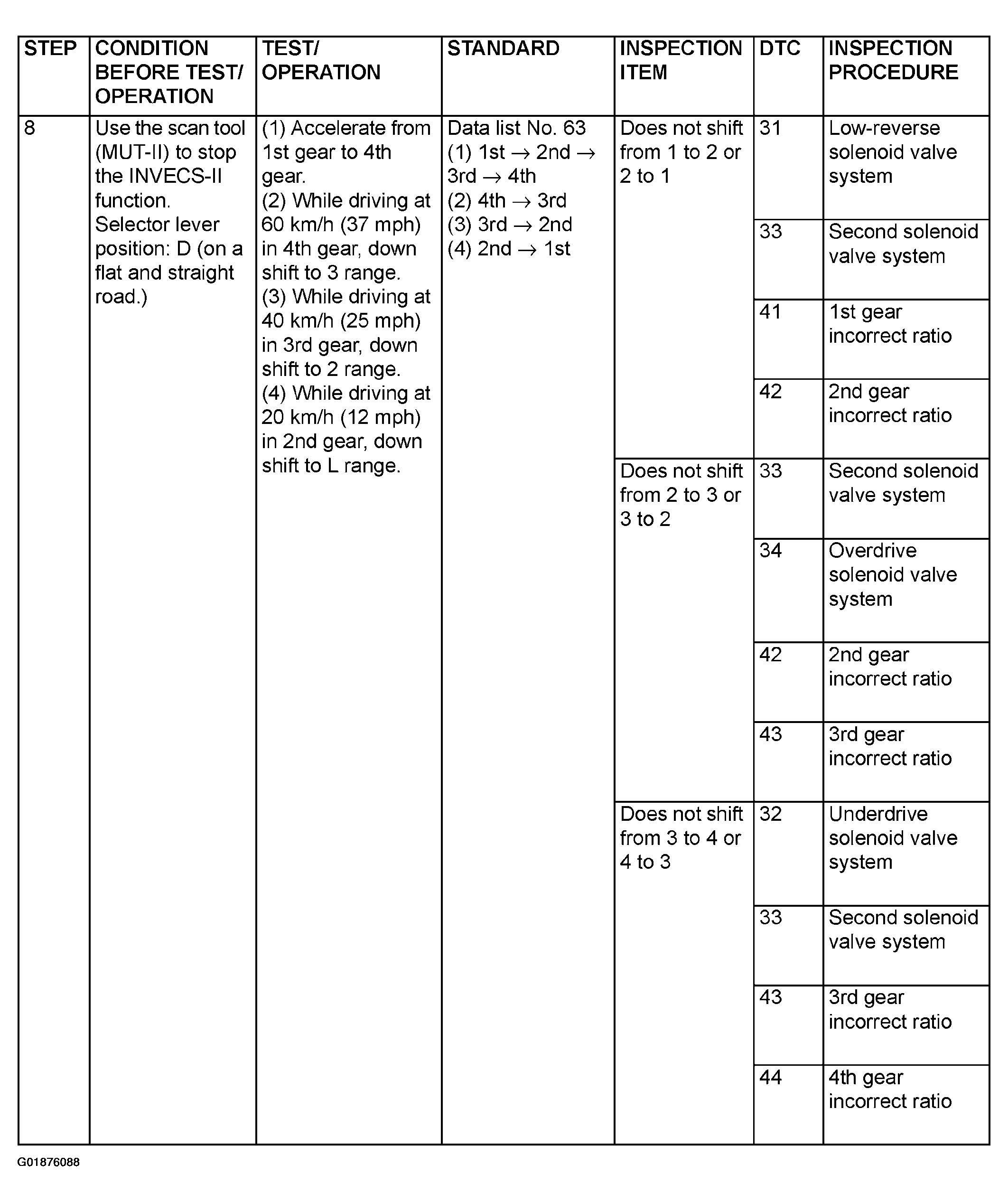

Fig 5: Road Test Chart (5 Of 6)

G01876088

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

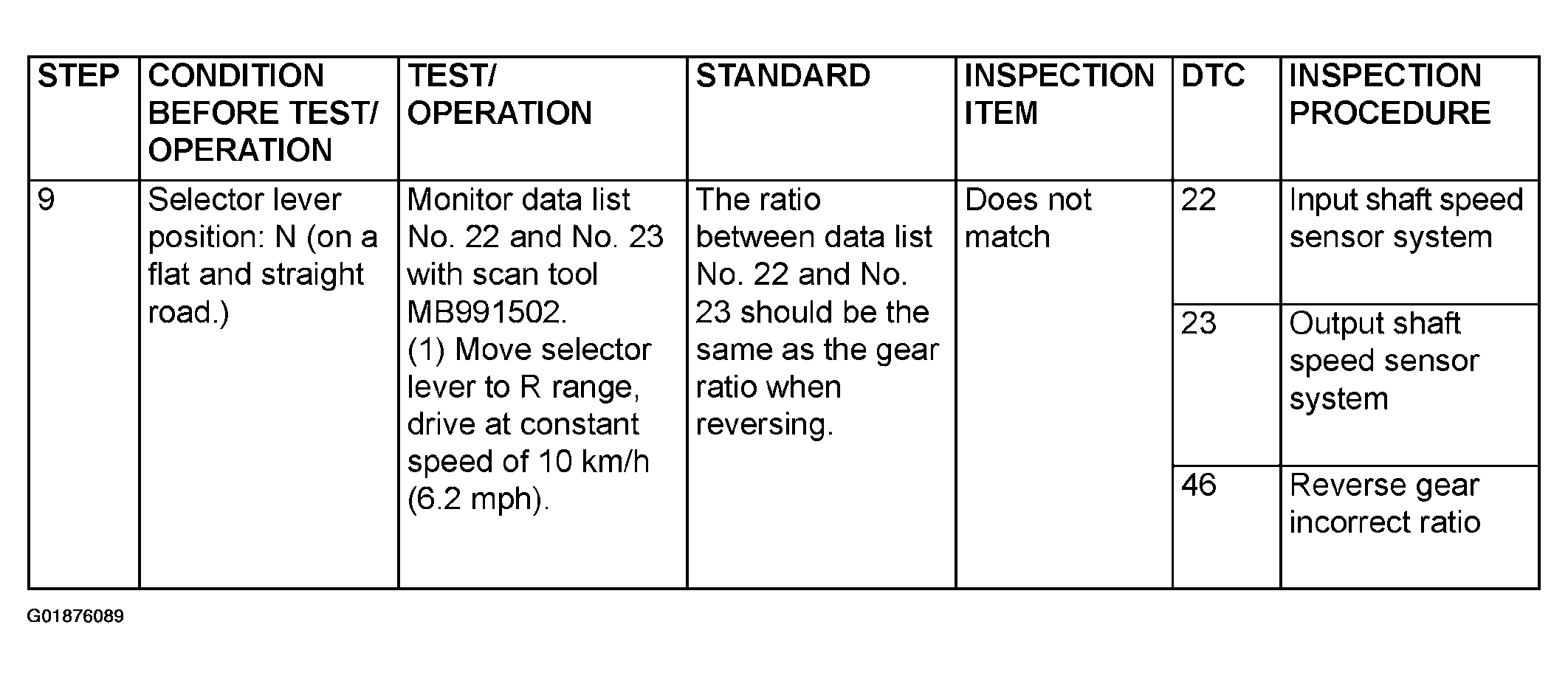

Fig 6: Road Test Chart (6 Of 6)

G01876089

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
