Components And Functions

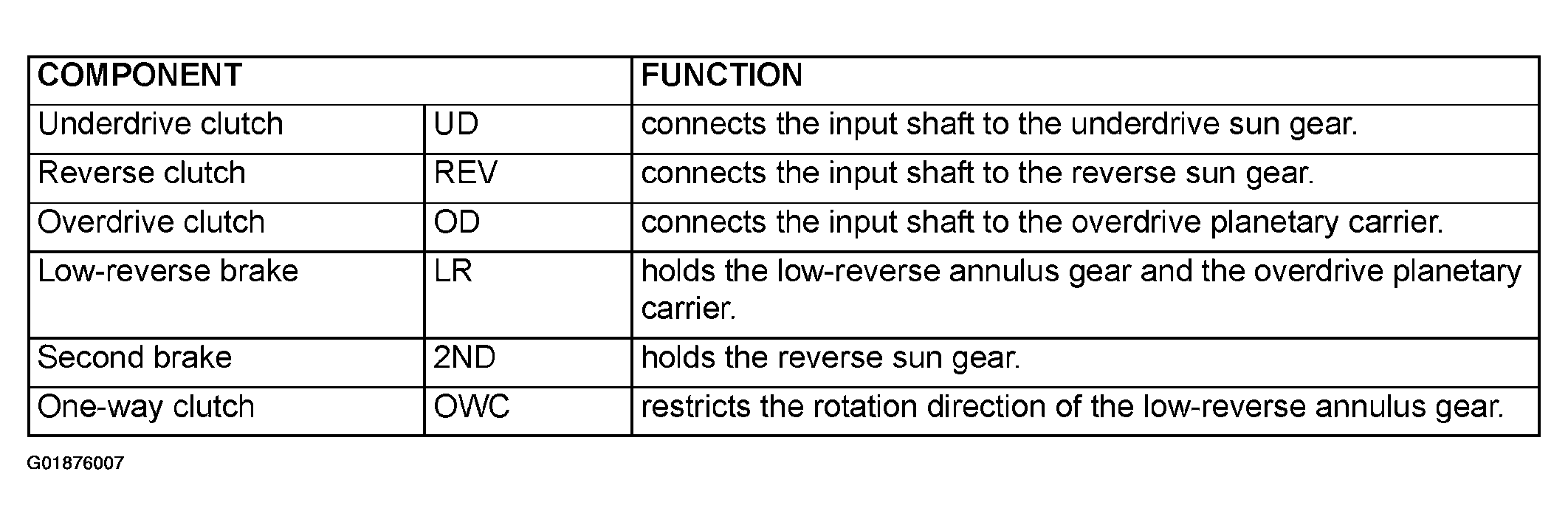

Fig 1: Transaxle Components & Functions Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
