Function Element Table

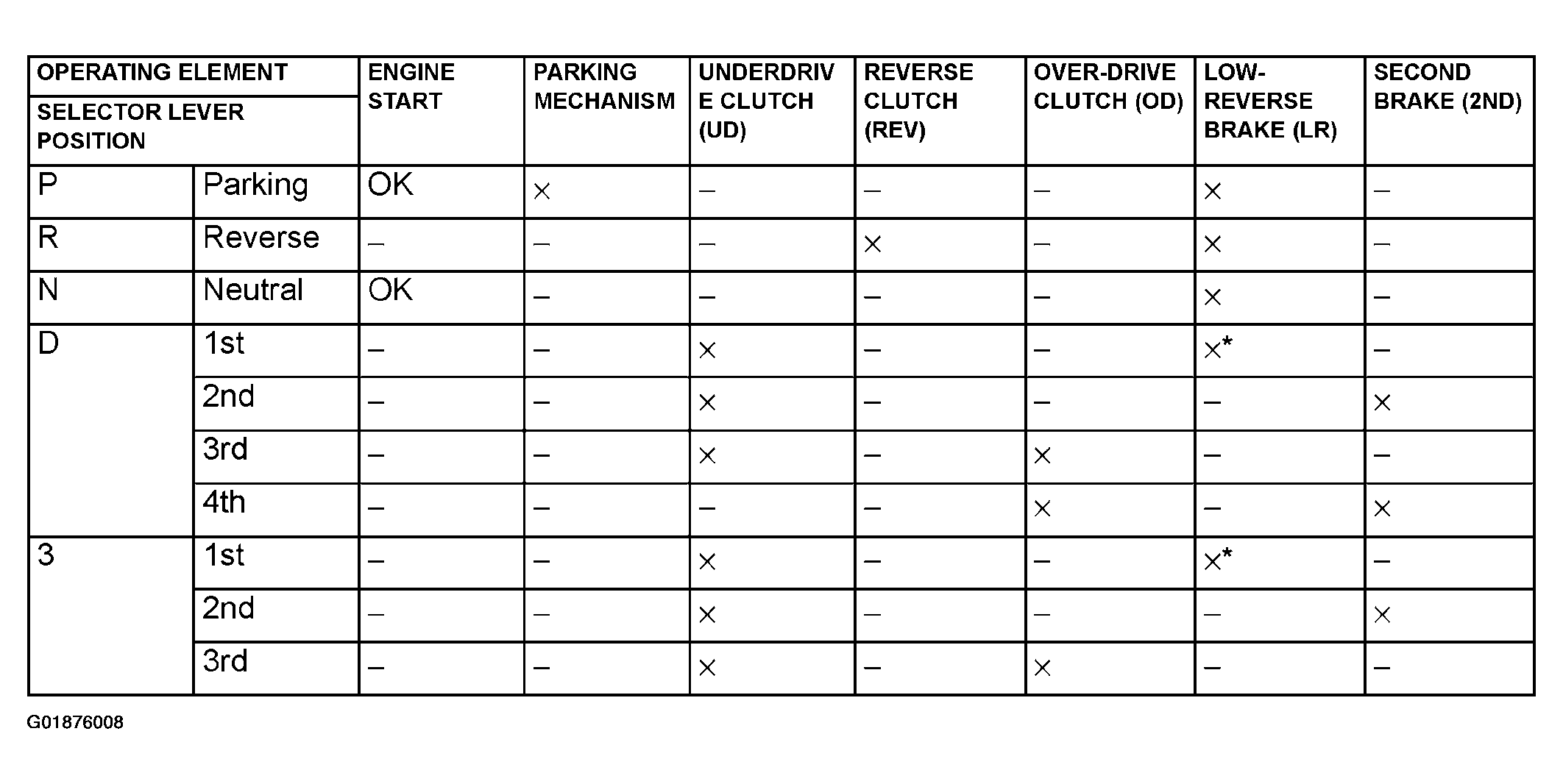

Fig 1: Function Element Table (1 Of 2)
G01876008Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

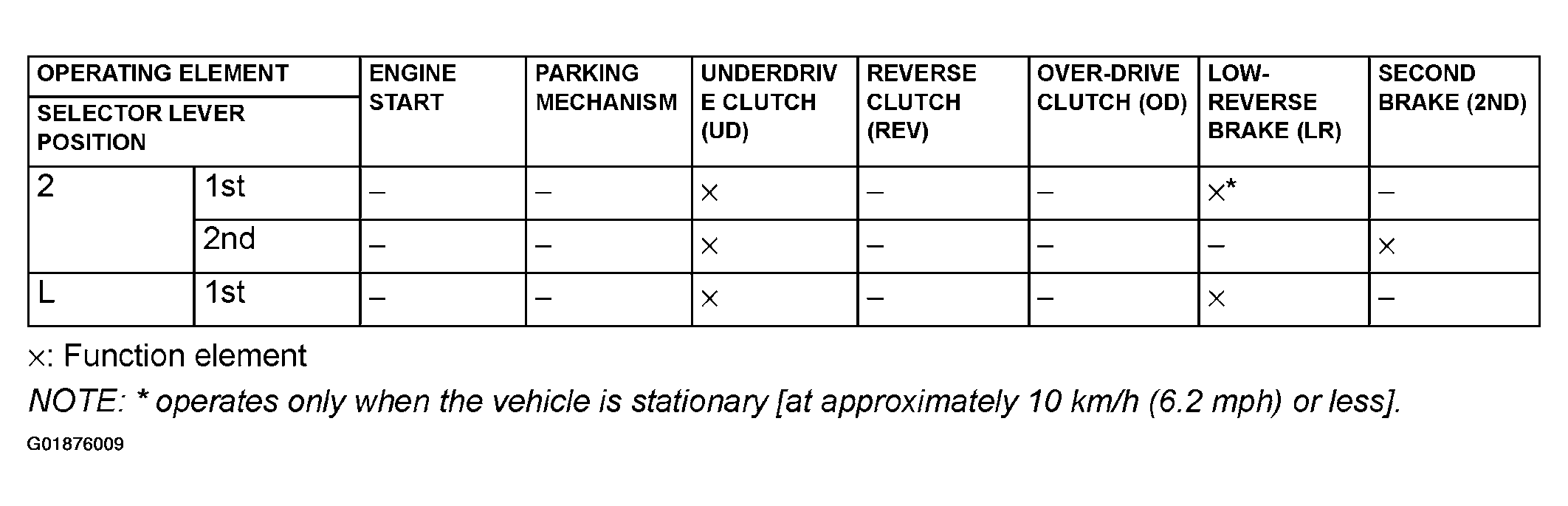

Fig 2: Function Element Table (2 Of 2)
G01876009Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
