A/T Control Component Layout

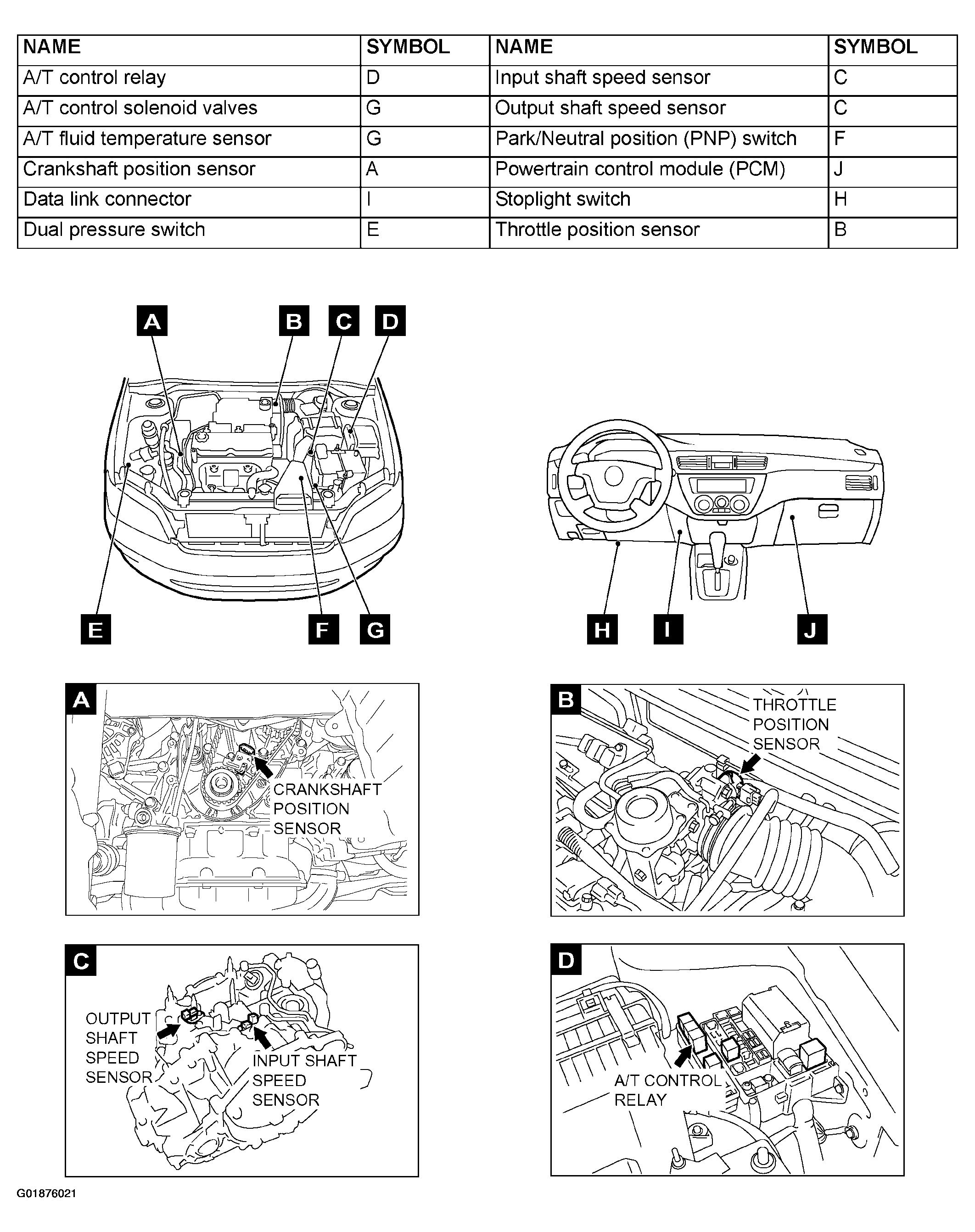

Fig 1: Identifying A/T Control Components (1 Of 2)
G01876021Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

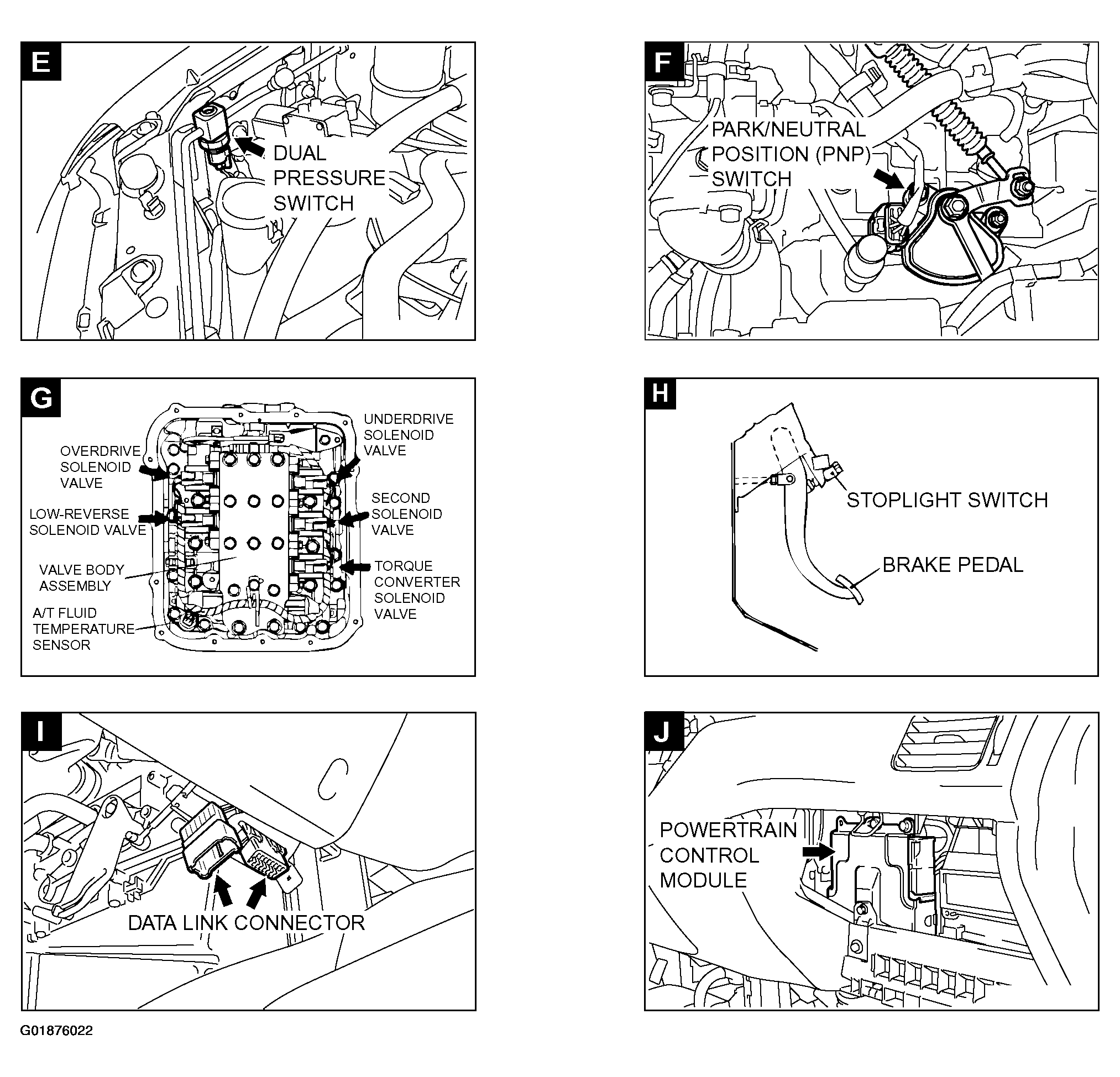

Fig 2: Identifying A/T Control Components (2 Of 2)
G01876022Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
