<< B >> Engine Assembly Supporting

< Engine lifter MZ2073827 is used >
Set special tools MB991453 and MZ203827 to the vehicle to support the engine assembly.

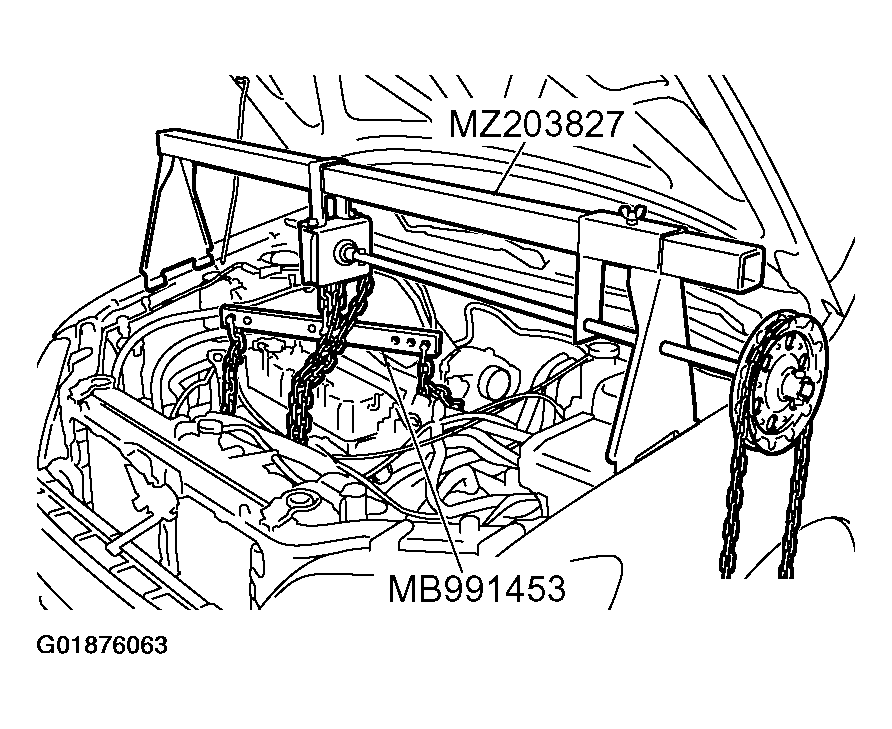

Fig 1: Supporting Engine Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< Engine hanger MB991895 is used >
1. Set special tool MB991895 to the strut assembly mounting nuts (A and B) and the radiator support upper insulator mounting bolts (C and D), which are located in the engine compartment, as shown.

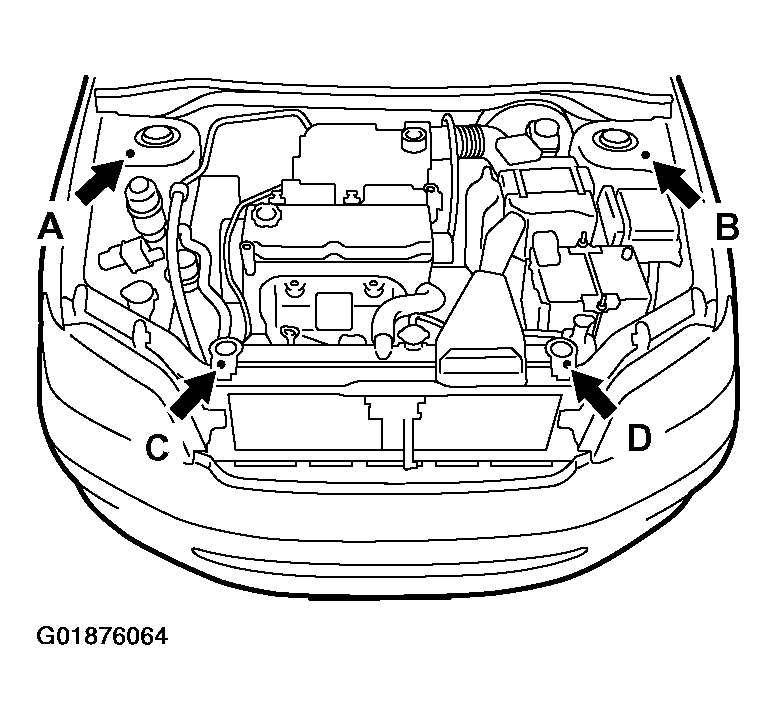

  Fig 2: Setting Special Tool To Mounting Nuts A, B, C & D
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Set special tool MB991454 to hold the engine/transaxle assembly.

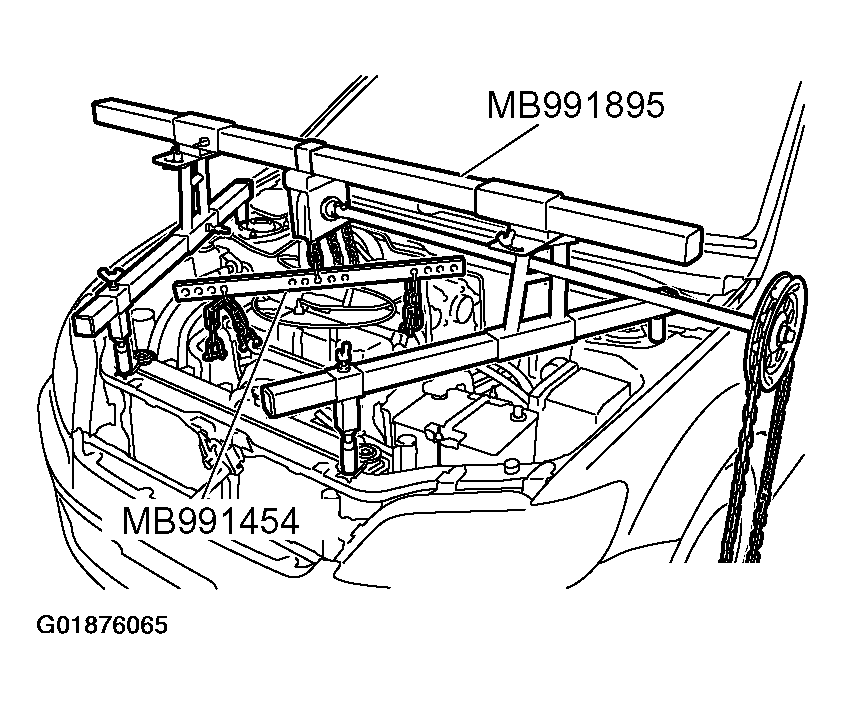

  Fig 3: Holding Engine/Transaxle Assembly
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
