Disassembly And Assembly

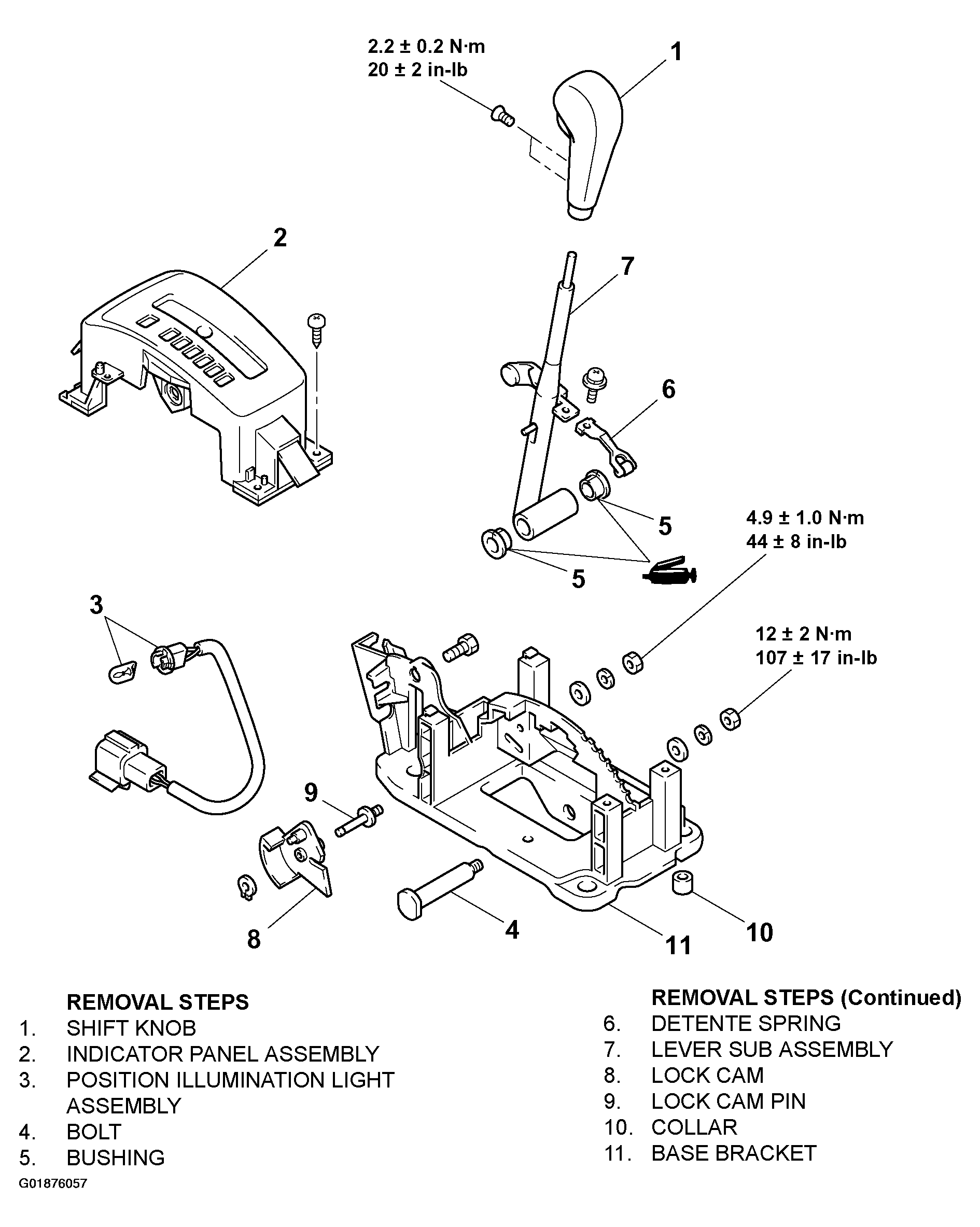

Fig 1: Disassembly/Assembly Of Transaxle Control Assembly
G01876057Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
