Disassembly And Assembly: Notes

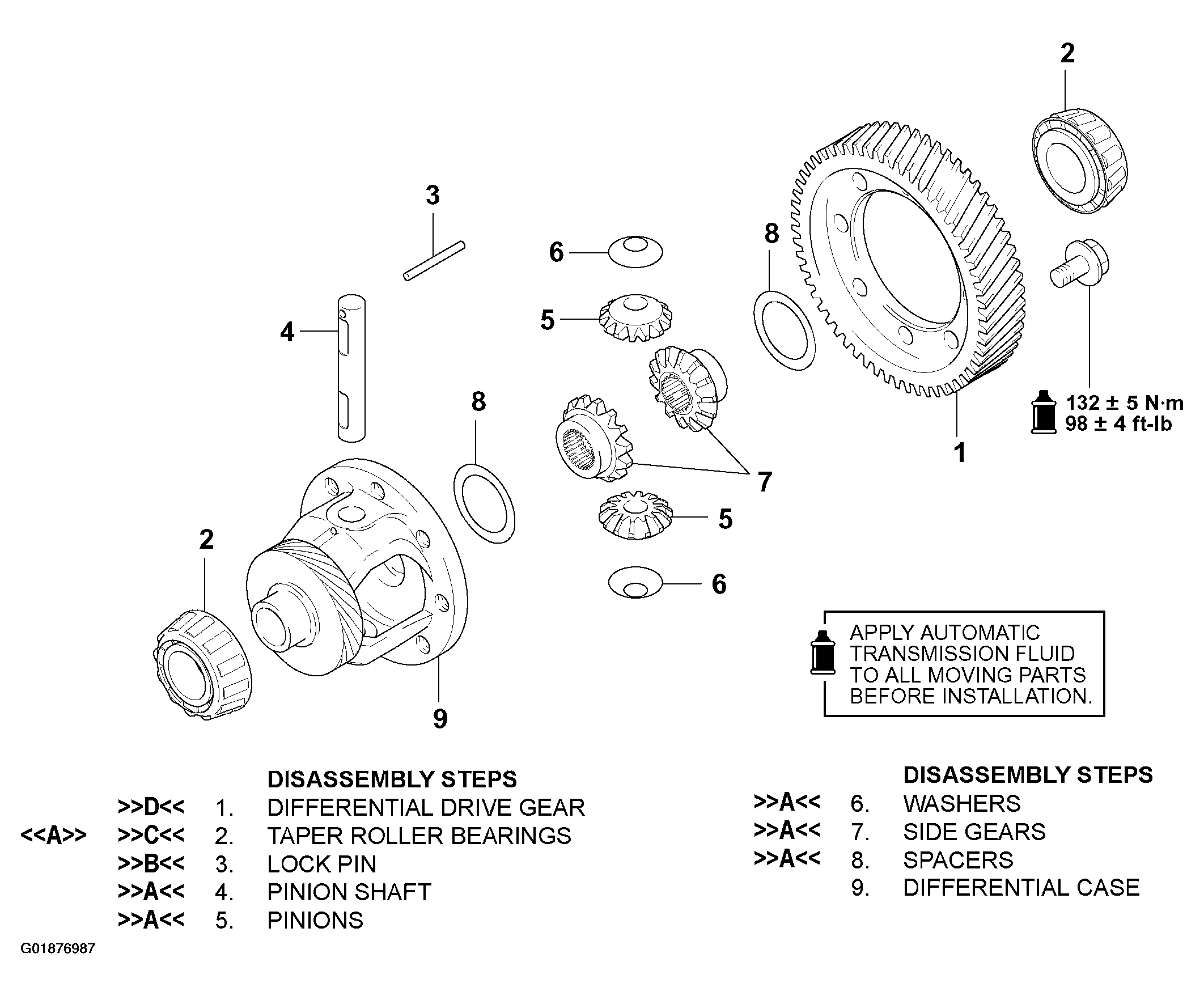

Fig 1: Disassembly & Assembly View Of Differential
G01876987Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
