Disassembly And Assembly: Notes

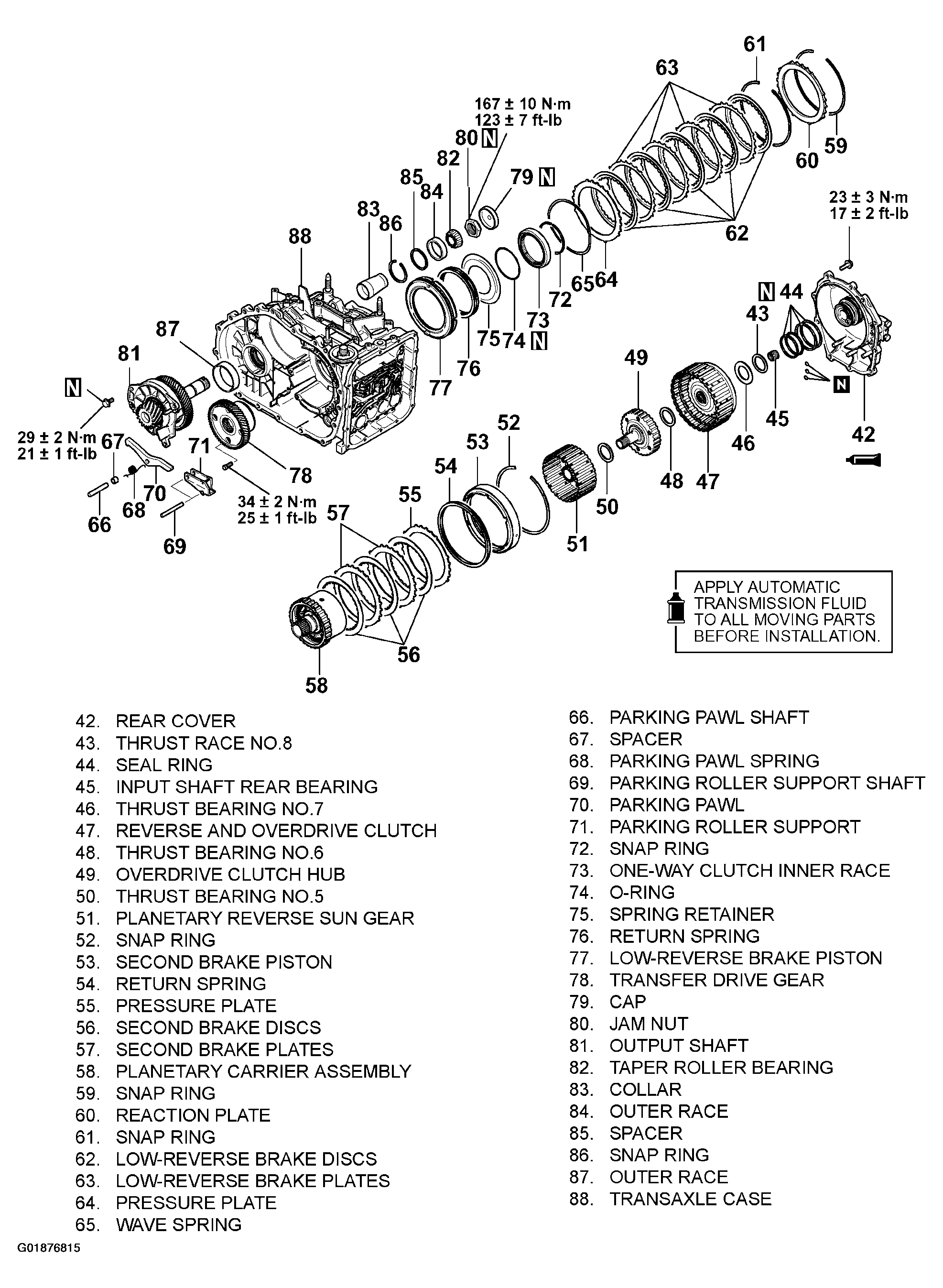

Fig 1: Disassembly & Assembly Of Transaxle (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990607: Torque Wrench Socket
• MB990930: Installer Adapter
• MB990931: Installer Adapter
• MB990935: Installer Adapter
• MB990936: Installer Adapter
• MB990938: Handle
• MB991625: Special Socket(41)
• MB991631: Clearance Dummy Plate
• MD998333: Oil Pump Remover
• MD998350: Bearing Installer
• MD998412: Guide
• MD998903: Spring Compressor
• MD998913: Dial Gauge Extension
• MD998924: Spring Compressor Retainer

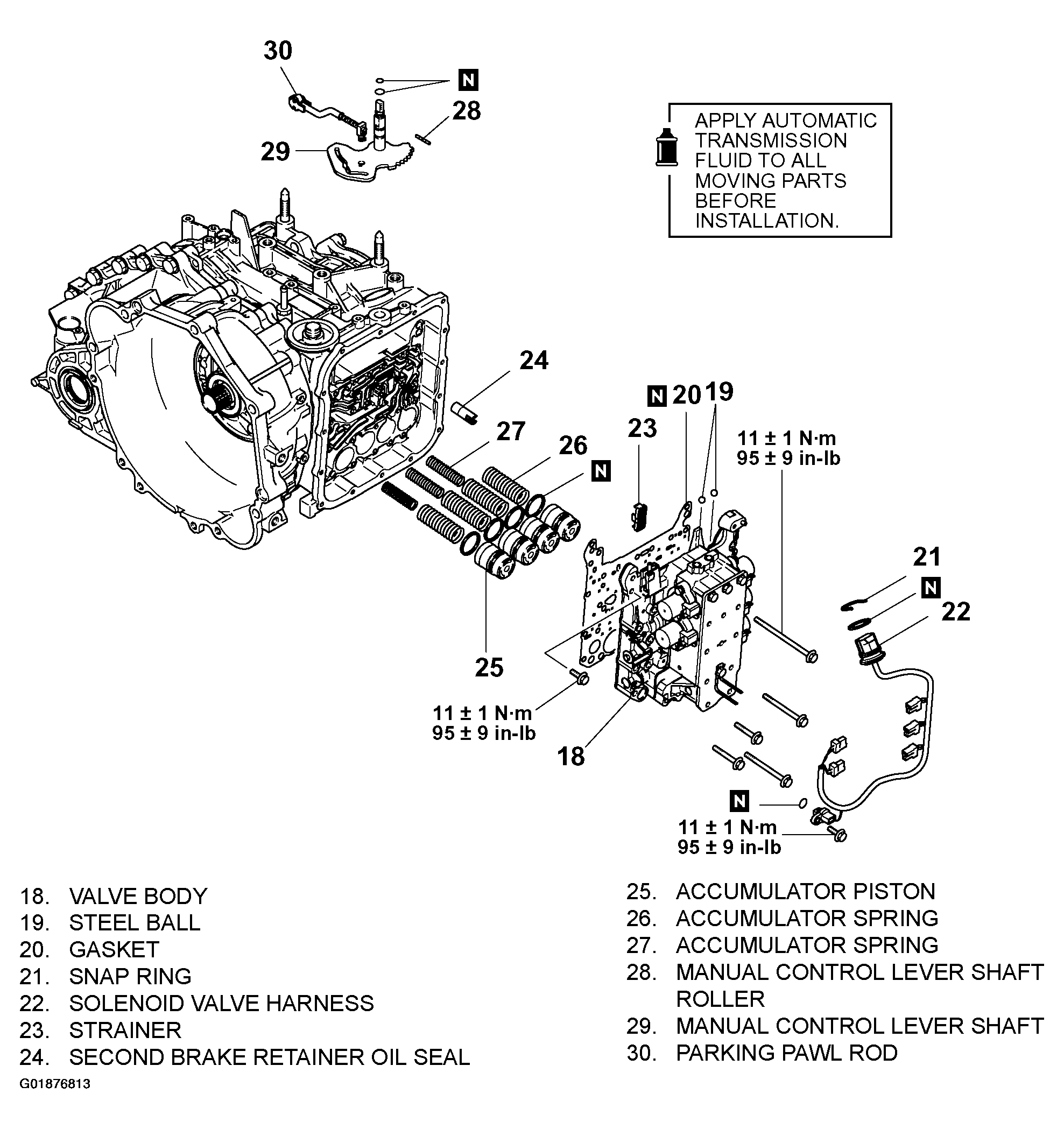

Fig 2: Disassembly & Assembly Of Transaxle (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

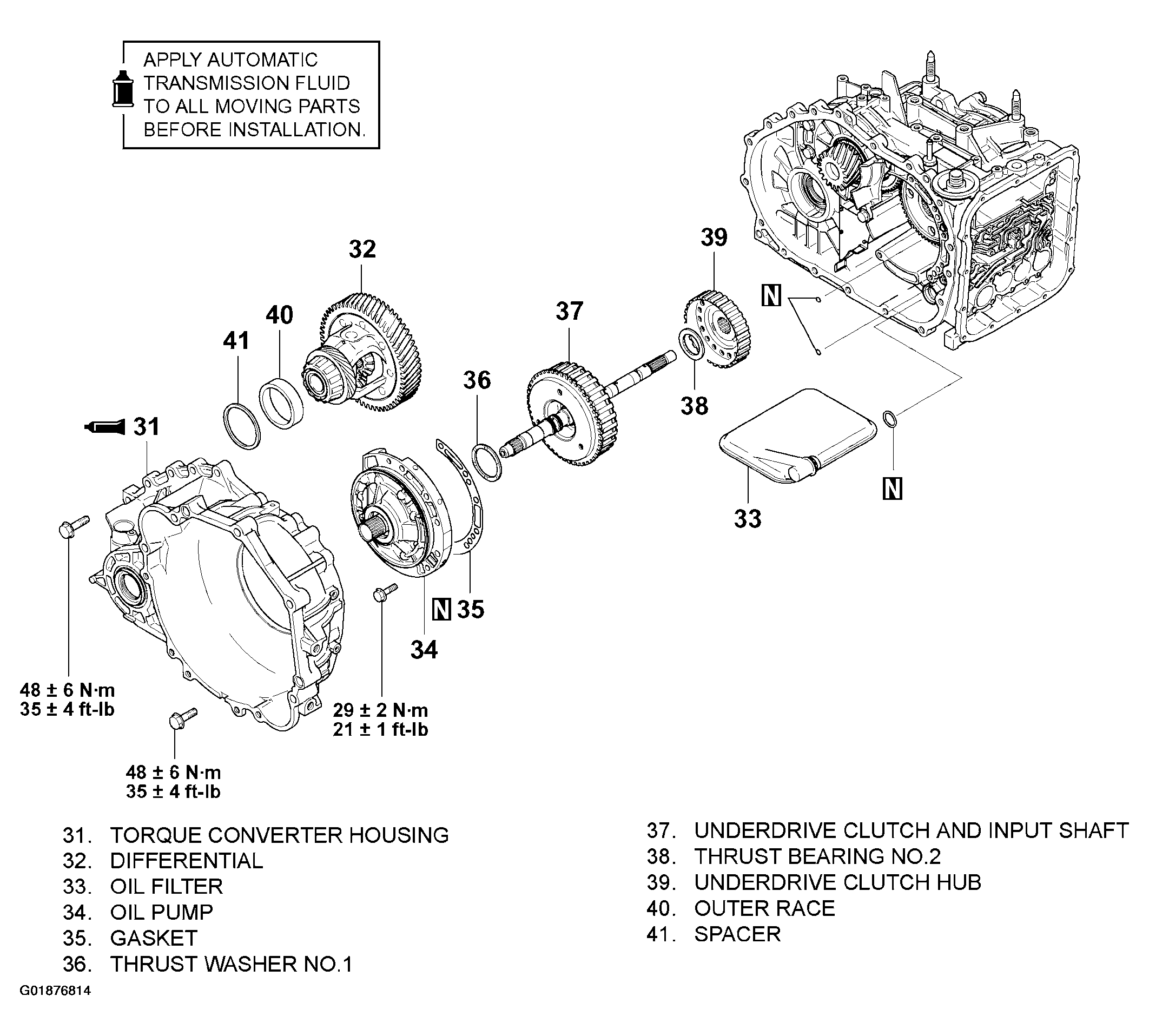

Fig 3: Disassembly & Assembly Of Transaxle (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

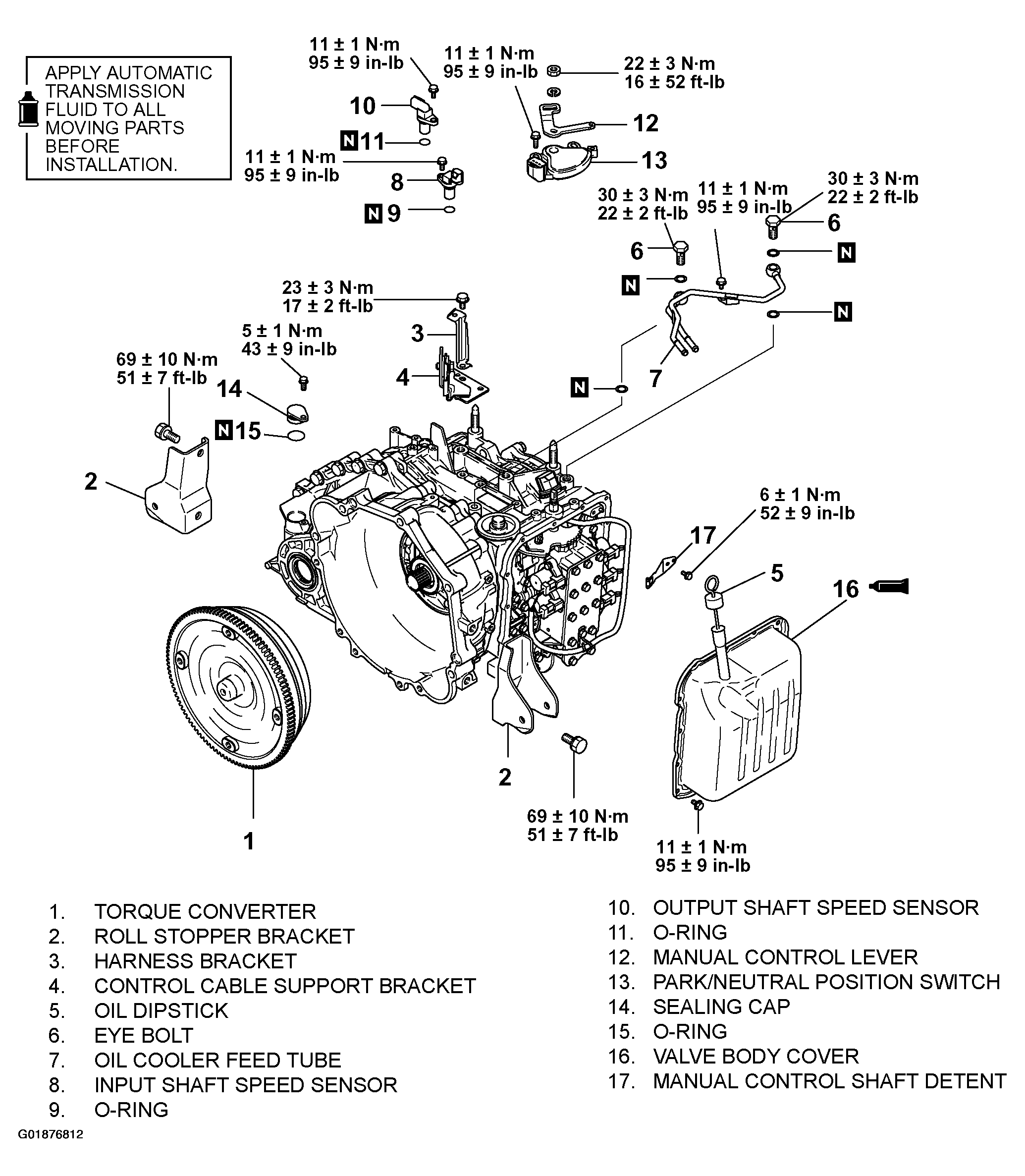

Fig 4: Disassembly & Assembly Of Transaxle (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
