Disassembly And Assembly: Notes

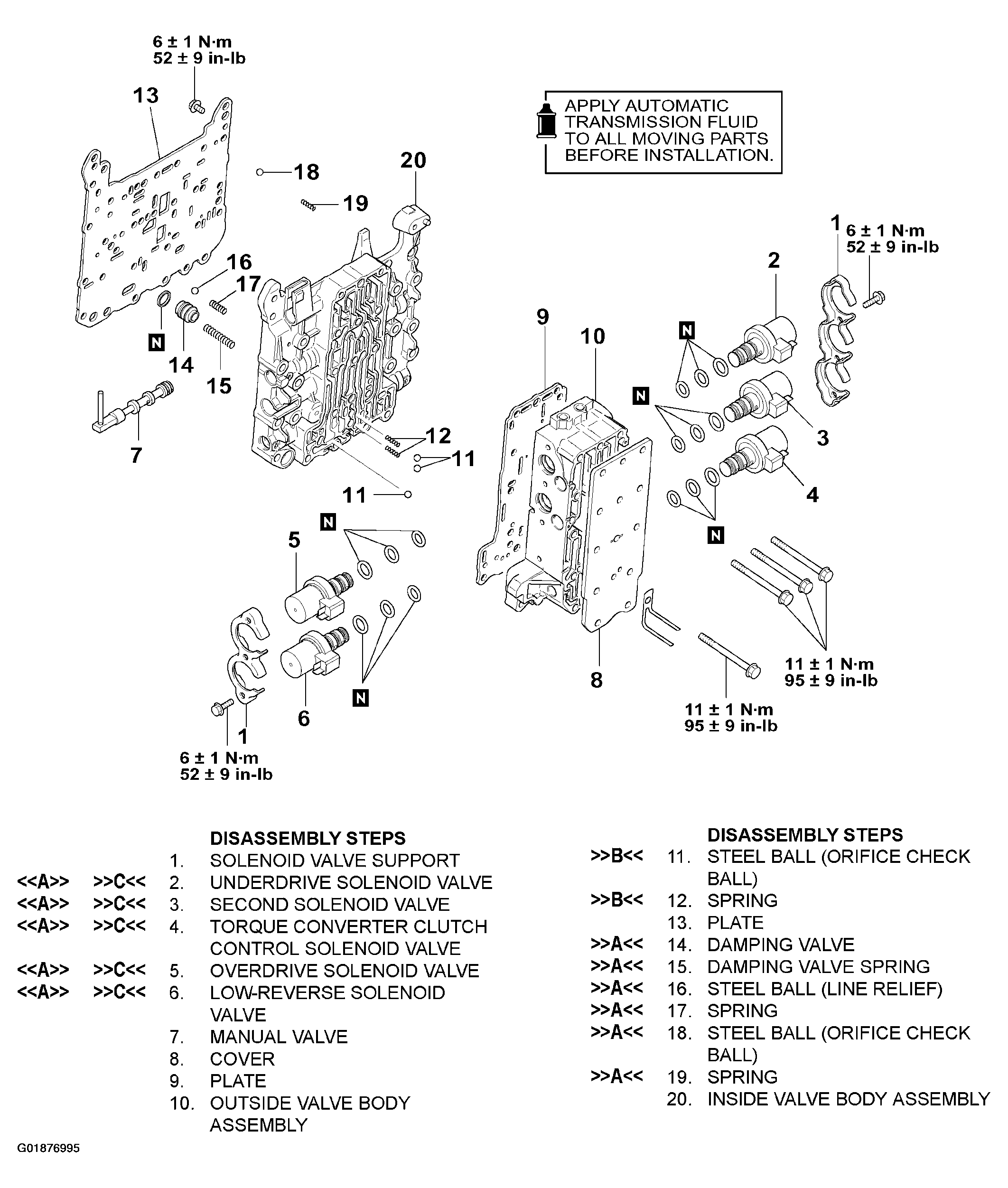

Fig 1: Disassembly & Assembly Of Valve Body (1 Of 3)
G01876995Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

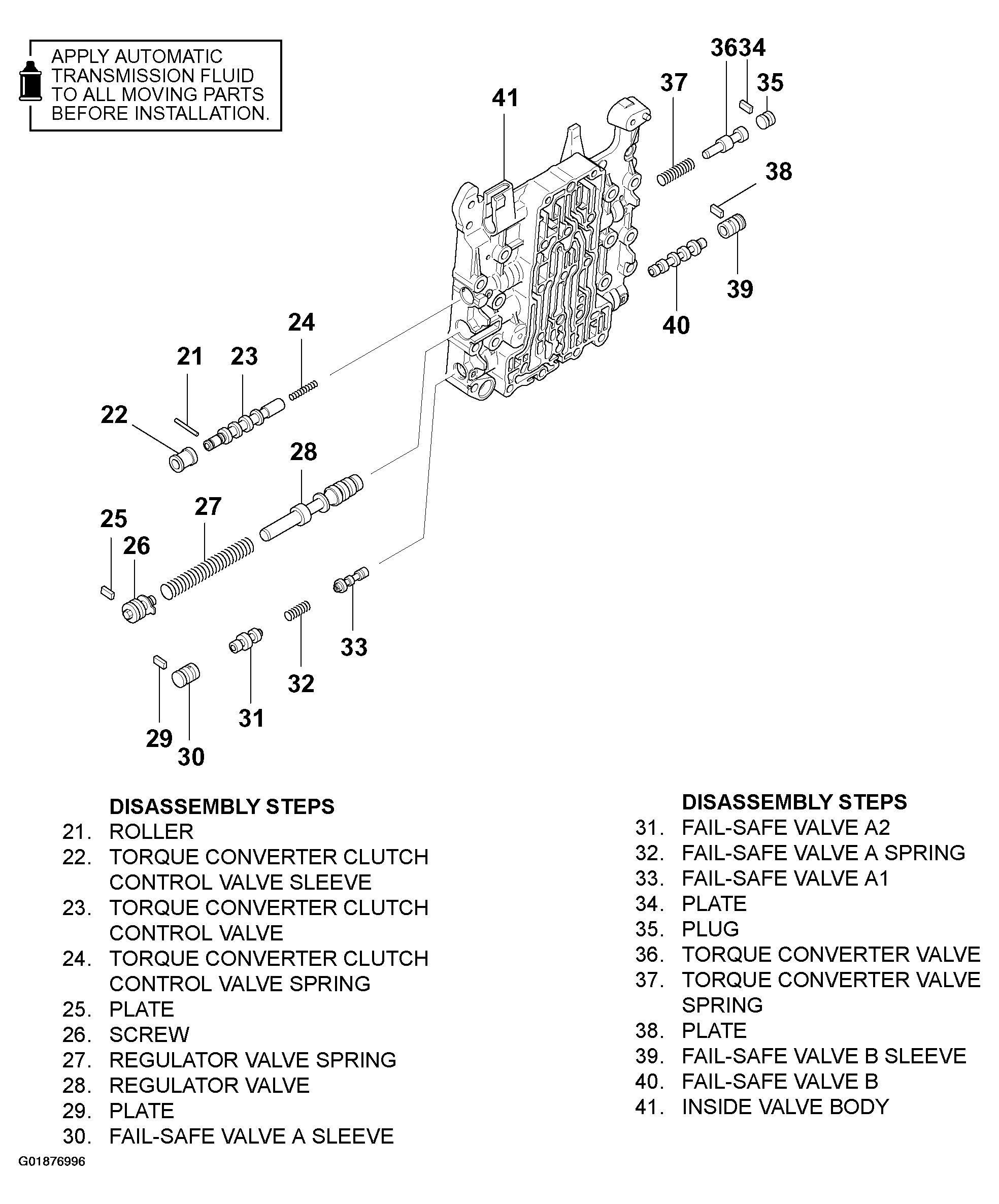

Fig 2: Disassembly & Assembly Of Valve Body (2 Of 3)
G01876996Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

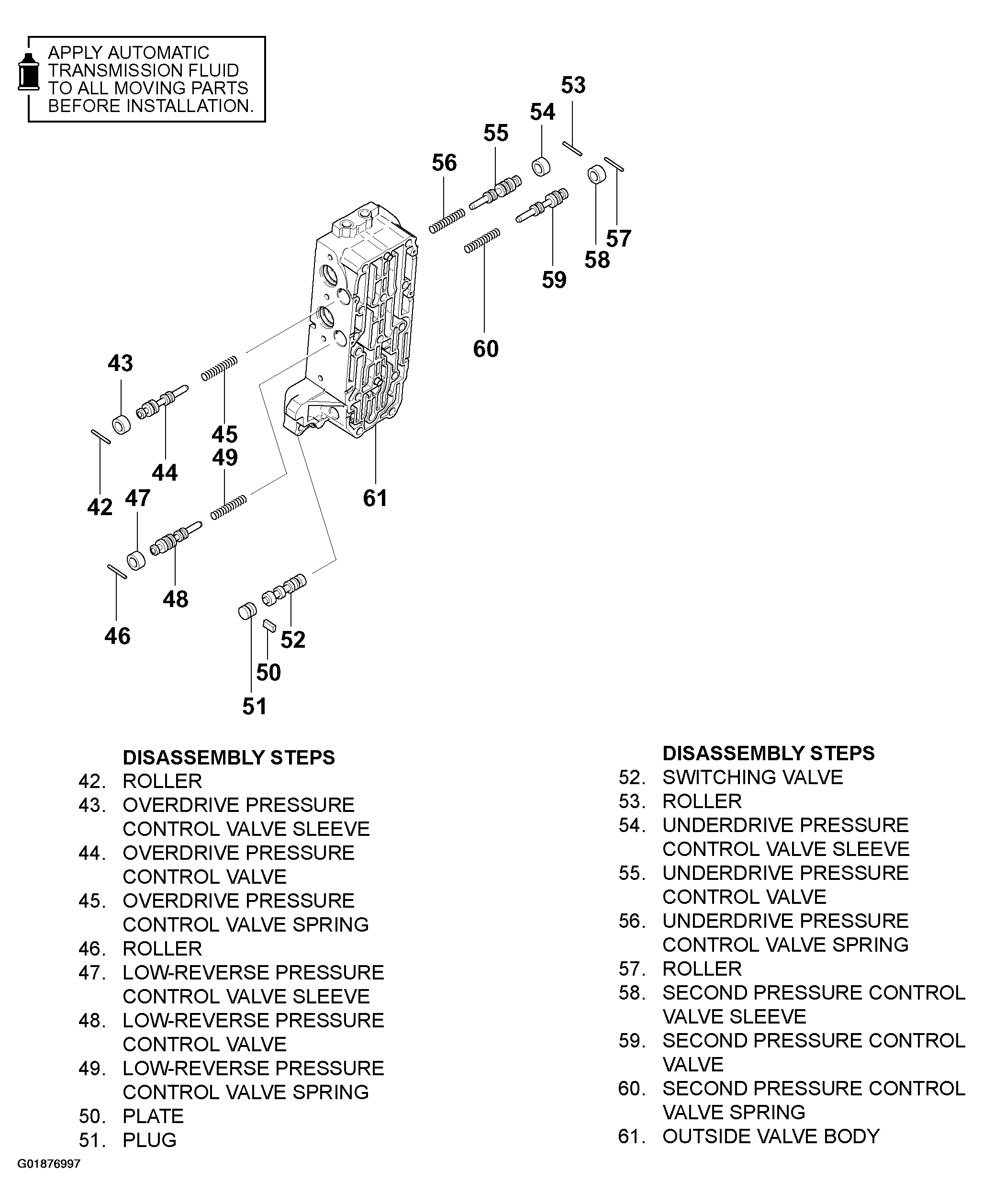

Fig 3: Disassembly & Assembly Of Valve Body (3 Of 3)
G01876997Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
