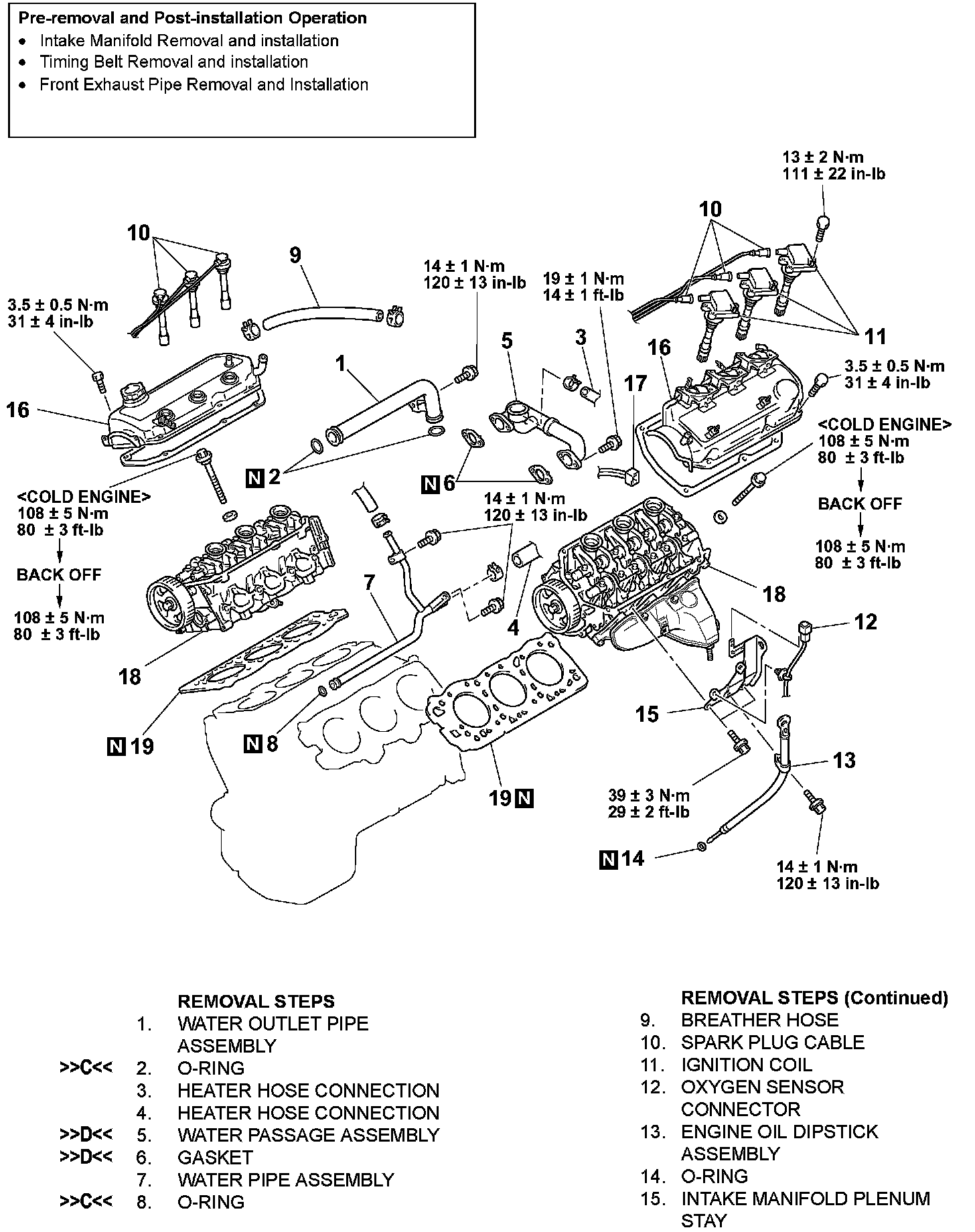

Cylinder Head Assembly

Part 1 Of 2:




Part 2 Of 2:





CYLINDER HEAD GASKET REPLACEMENT W/ RELATED COMPONENTS
