>> A << M-ASTC-Ecu Installation

• DTC No. 81: G NO ADJ
• DTC No. 84: TF NO CHECK
• DTC No. 85: M/CYL PRS NO CHECK

When installing a new M-ASTC-ECU, perform the initialization as follows, ensuring that the vehicle remains level.

1. Place the selector lever in the "P" position.
2. Connect scan tool MB991502 to the data link connector.

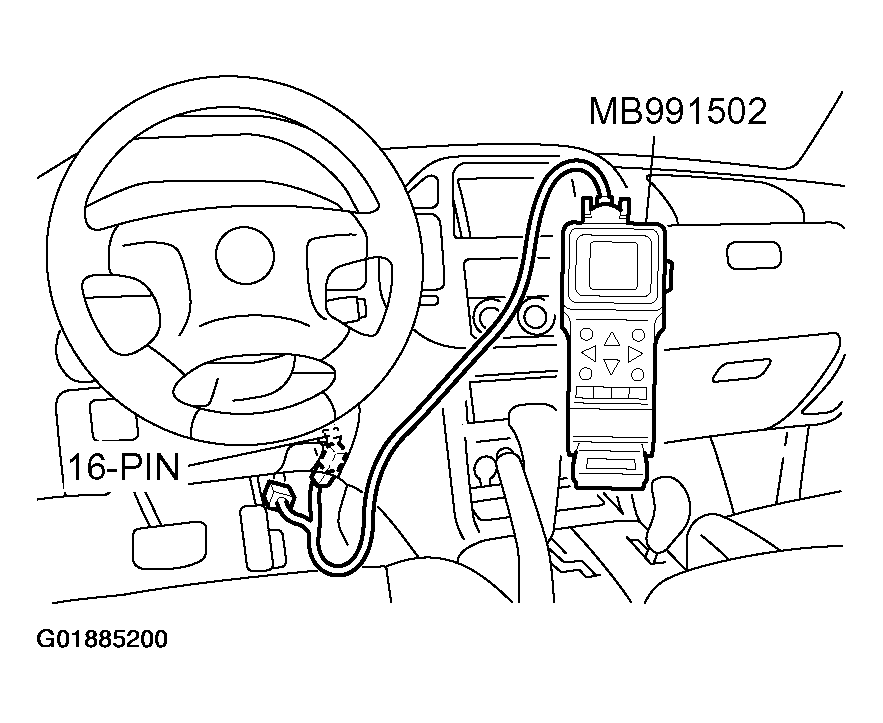

   Fig 1: Connecting Scan Tool To Data Link Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Turn the ignition switch to the "ON" position.
4. Execute item No. 16 "G SNSR:" on the Actuator test.
5. Depress the brake pedal by a pressure of approximately 40 kg quickly once.
6. Move the transfer lever through all positions (2H, 4H, 4HLc, 4LLc).
7. Turn the ignition switch to the "LOCK" (OFF) position.
8. Disconnect scan tool MB991502.
