DTC 35, 37, 78: Defective power control module: Notes

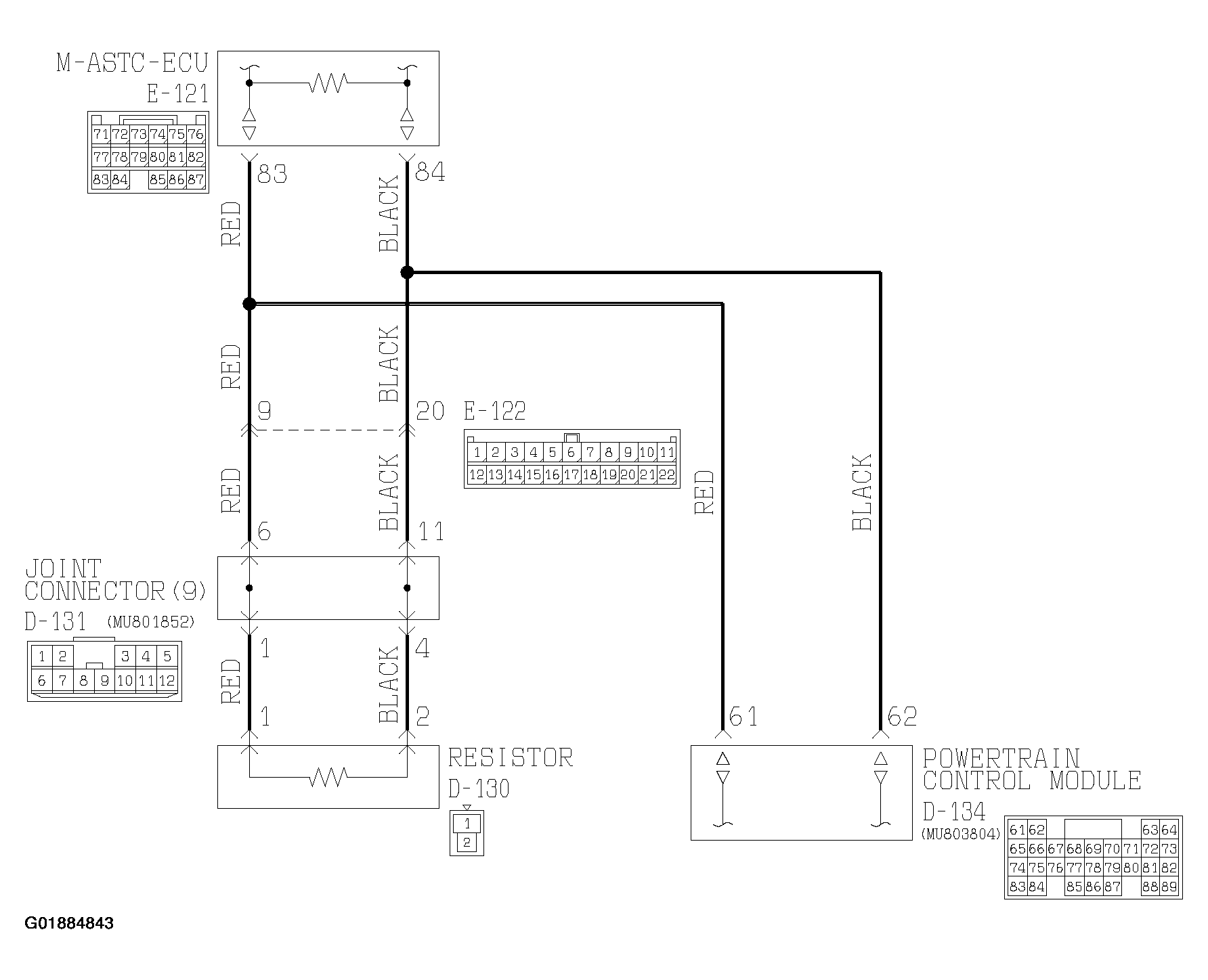

Fig 1: CAN Bus Communication Circuit (Powertrain Control Module) Diagram
G01884843Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
