INSPECTION PROCEDURE 4: The Active skid control system OFF indicator light remains illuminated after the engine is started.: Notes

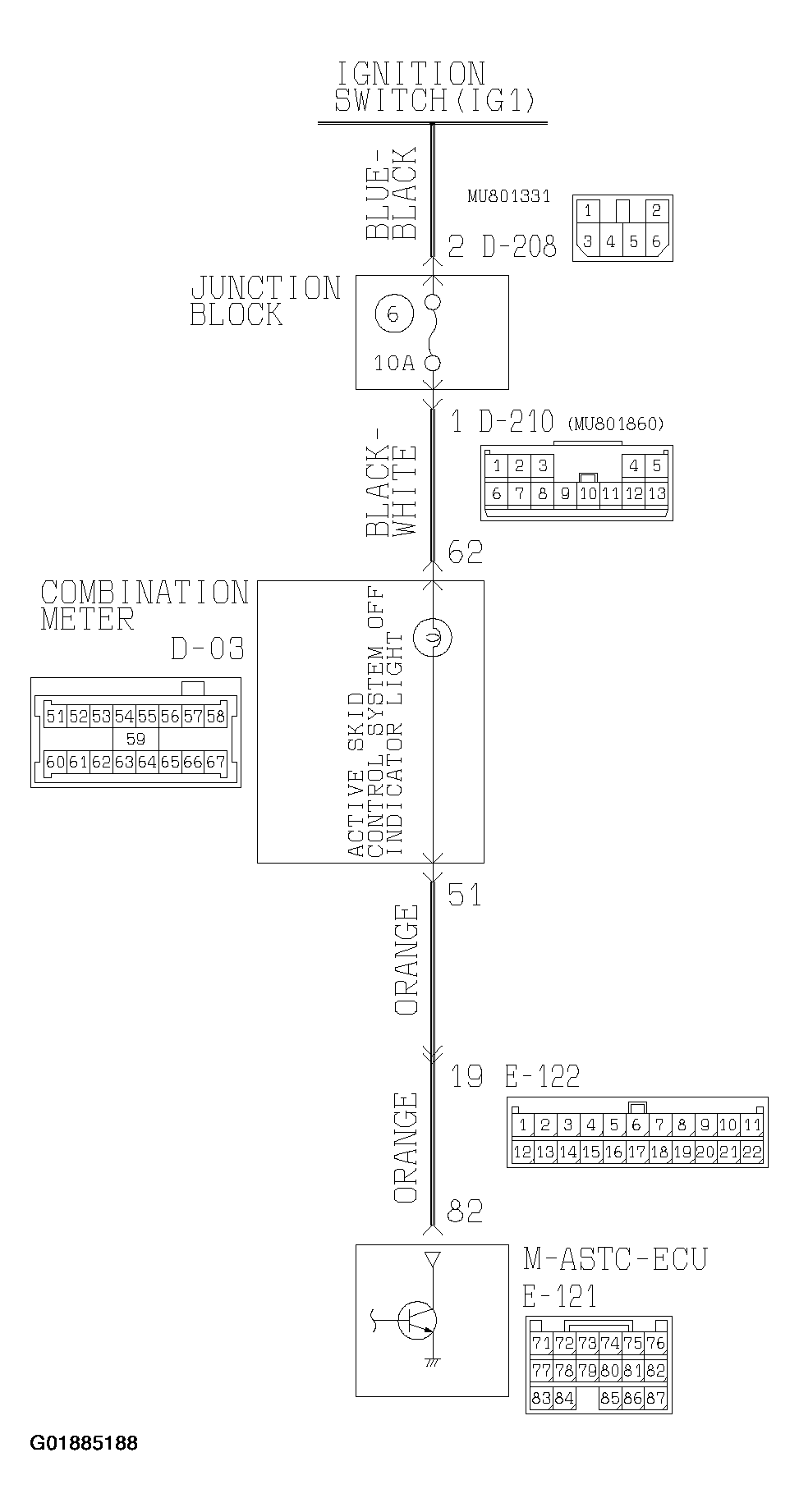

Fig 1: Active Skid Control System OFF Indicator Light Circuit Diagram (1 Of 2)
G01885188Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

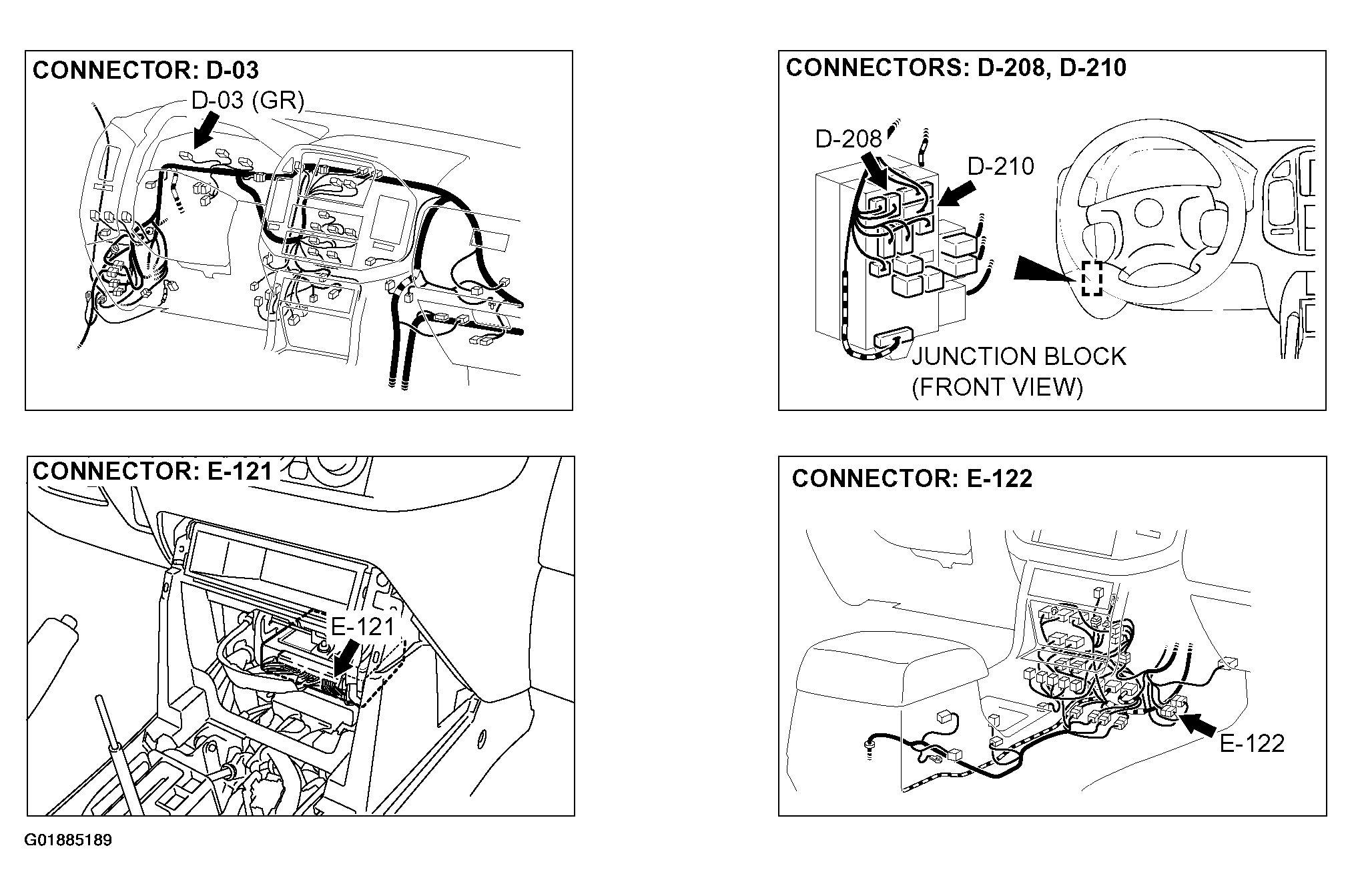

Fig 2: Active Skid Control System OFF Indicator Light Circuit Diagram (2 Of 2)
G01885189Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
