Disassembly & Assembly: Notes

CAUTION: Never disassemble the terminal assembly. It cannot be reassembled.

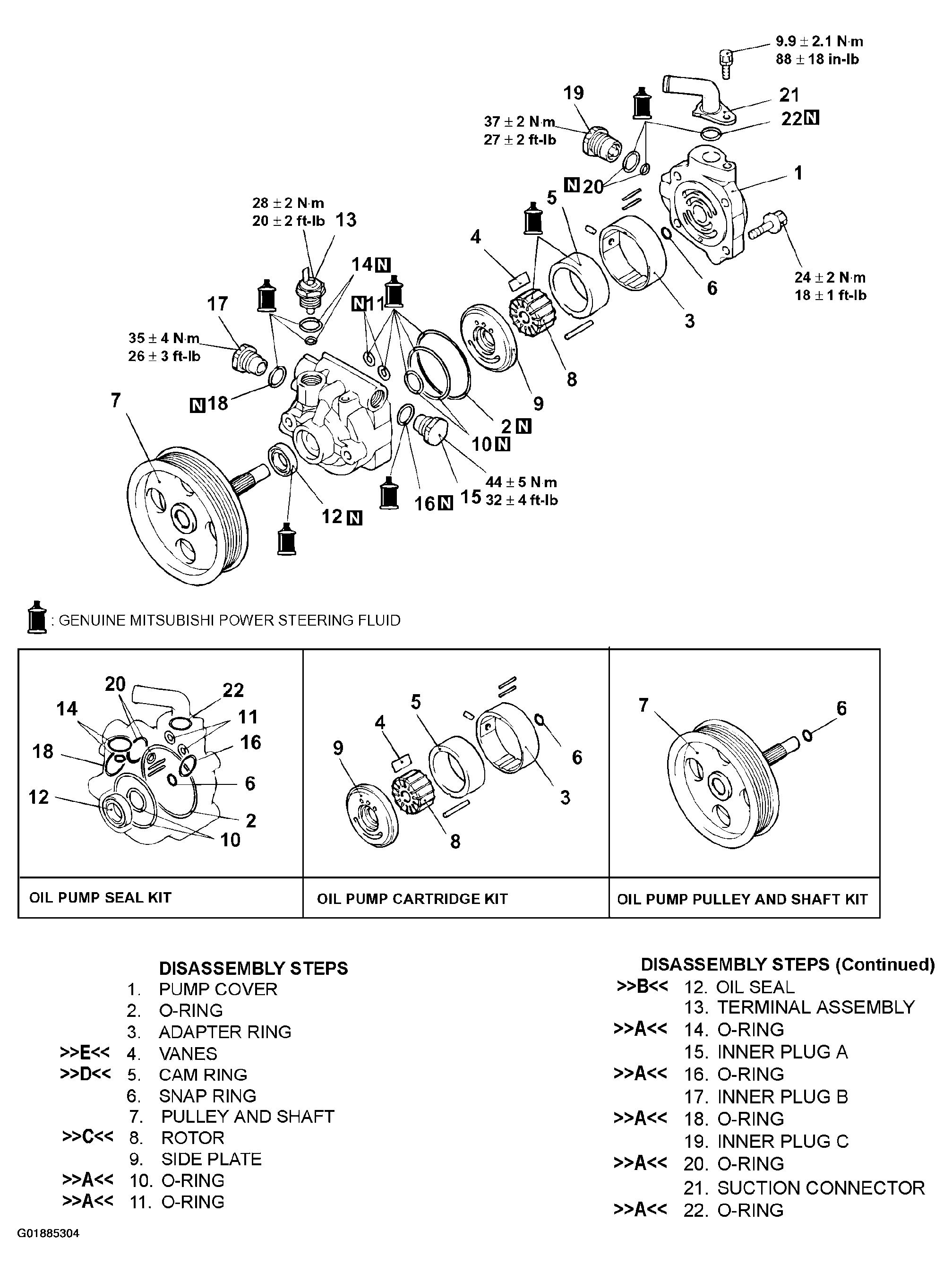

Fig 1: Exploded View & Torque Specifications Of Power Steering Oil Pump Assembly
G01885304Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
