DTC 35: Free-wheel Engage Switch System: Notes

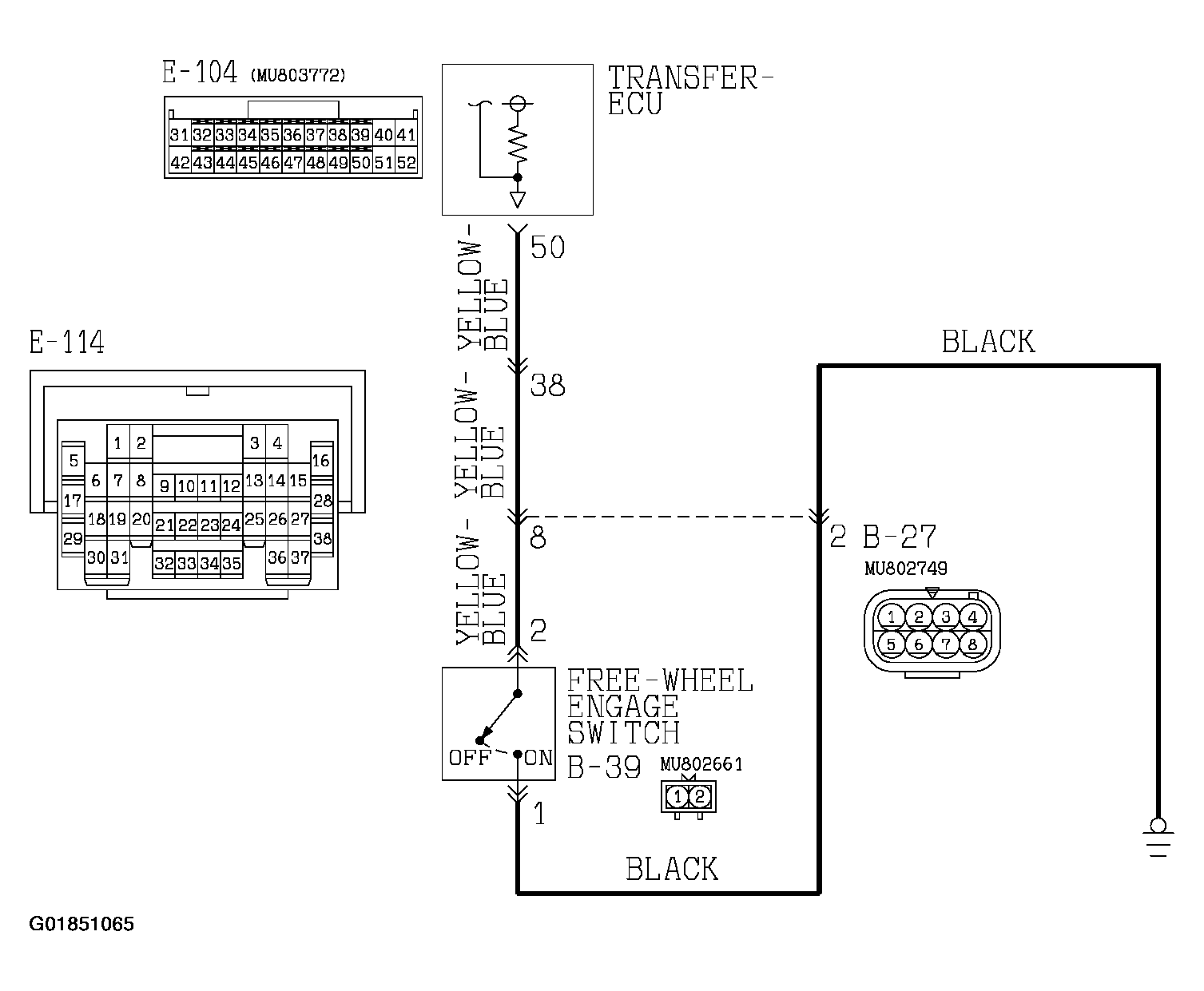

Fig 1: Free-Wheel Engage Switch System Circuit Diagram (1 Of 2)
G01851065Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

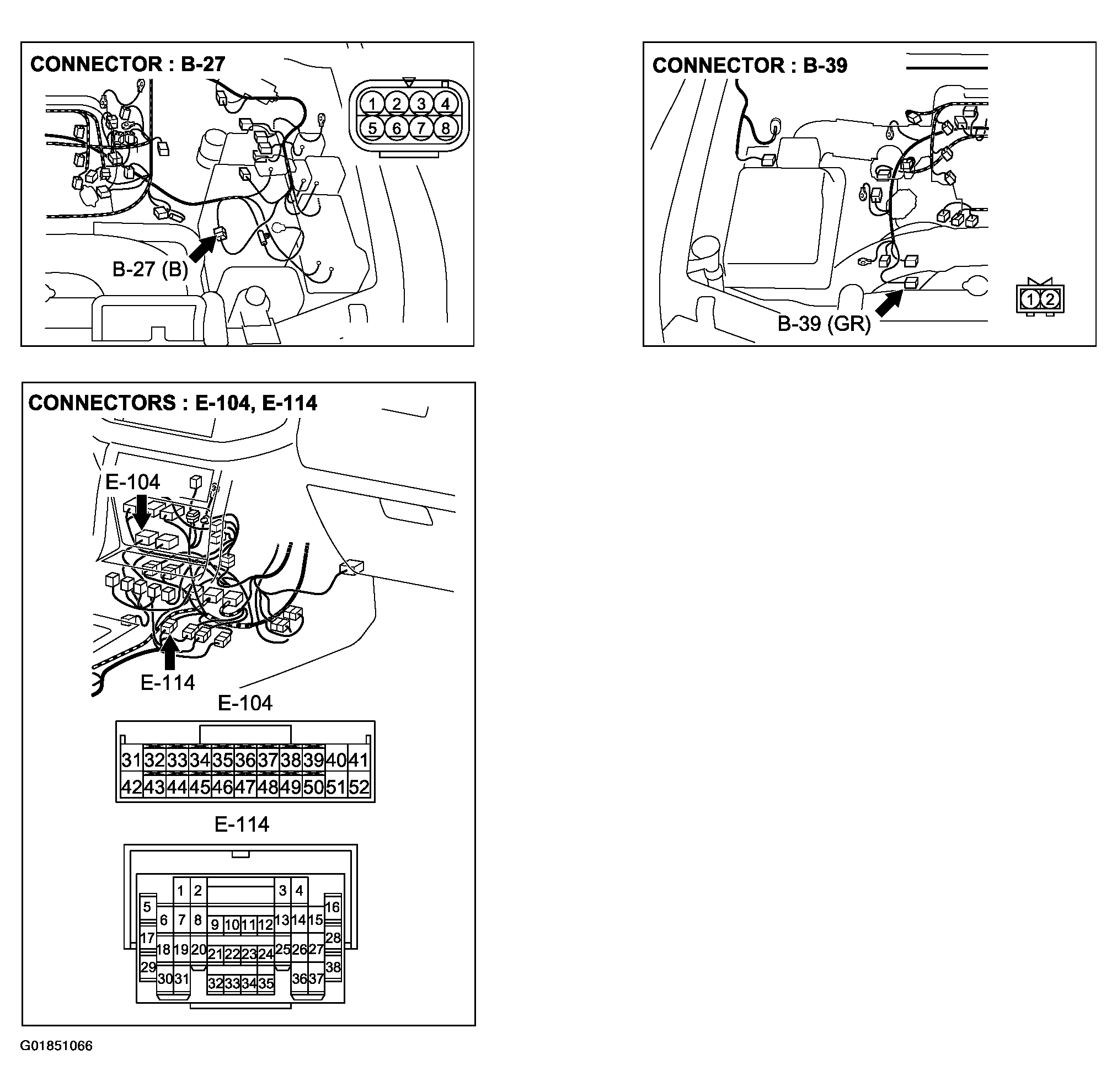

Fig 2: Free-Wheel Engage Switch System Circuit Diagram (2 Of 2)
G01851066Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
