DTC 23: Output Shaft Speed Sensor System: Notes

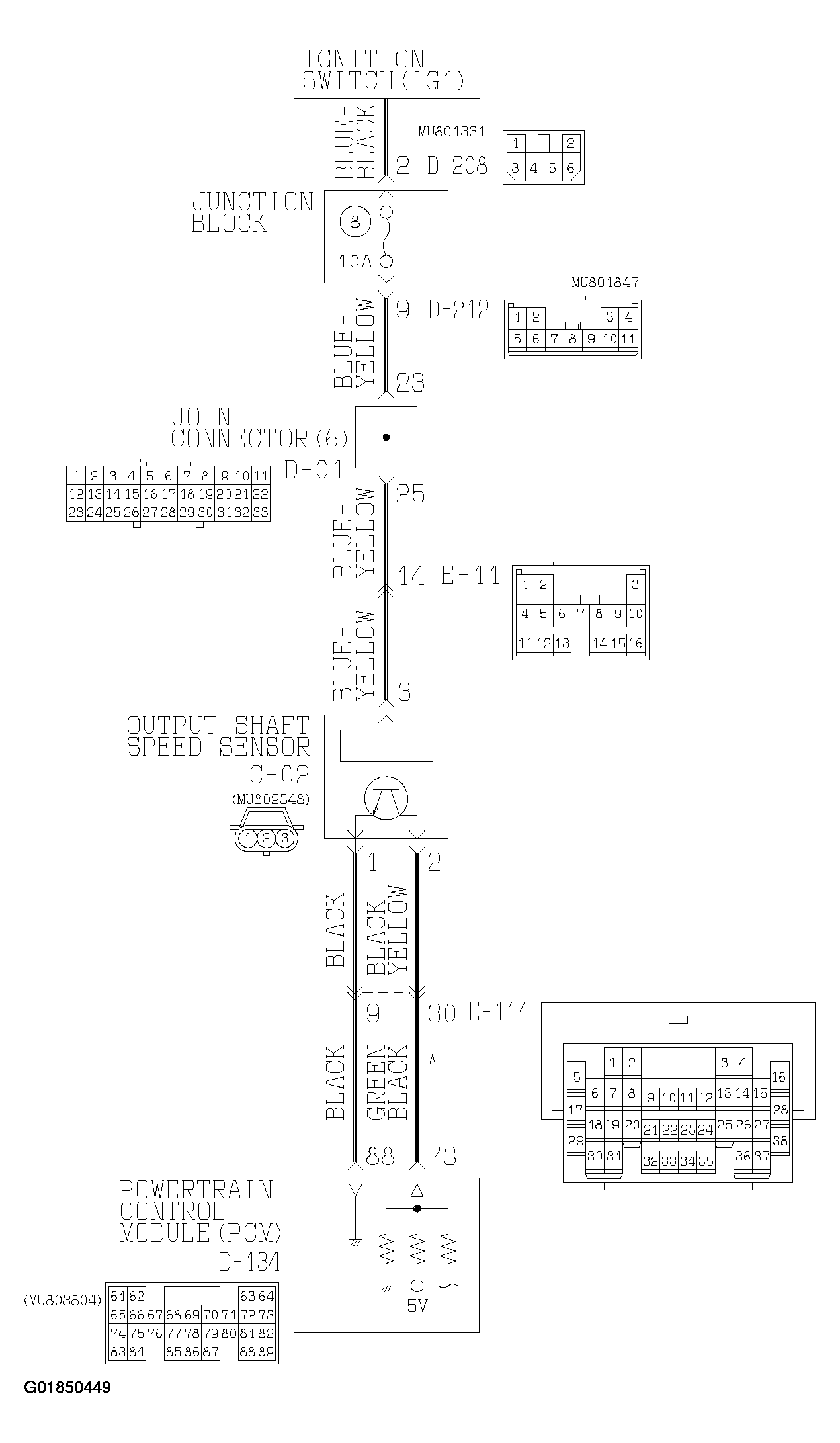

Fig 1: Output Shaft Speed Sensor System Circuit Diagram (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

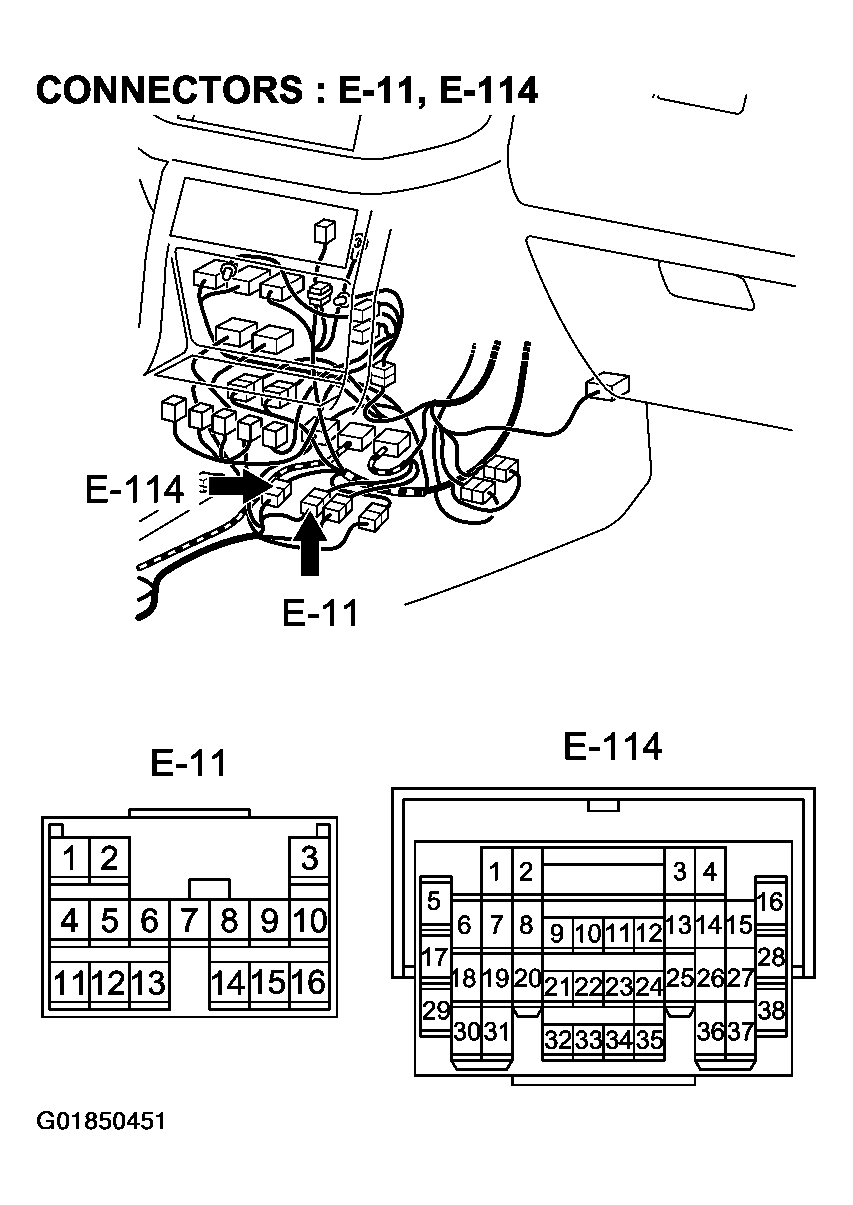

Fig 2: Output Shaft Speed Sensor System Circuit Diagram (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

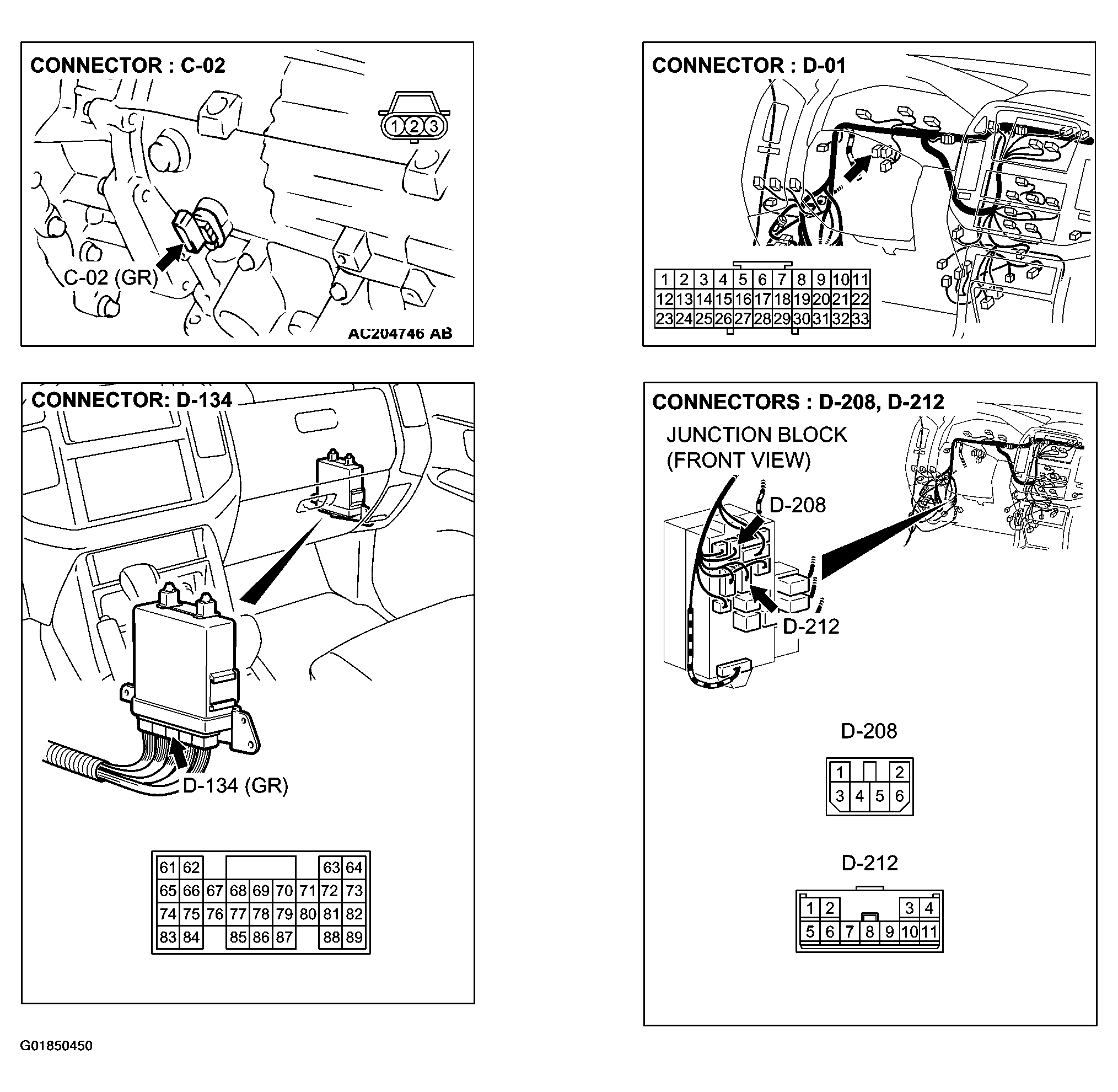

Fig 3: Output Shaft Speed Sensor System Circuit Diagram (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
