Disassembly And Assembly

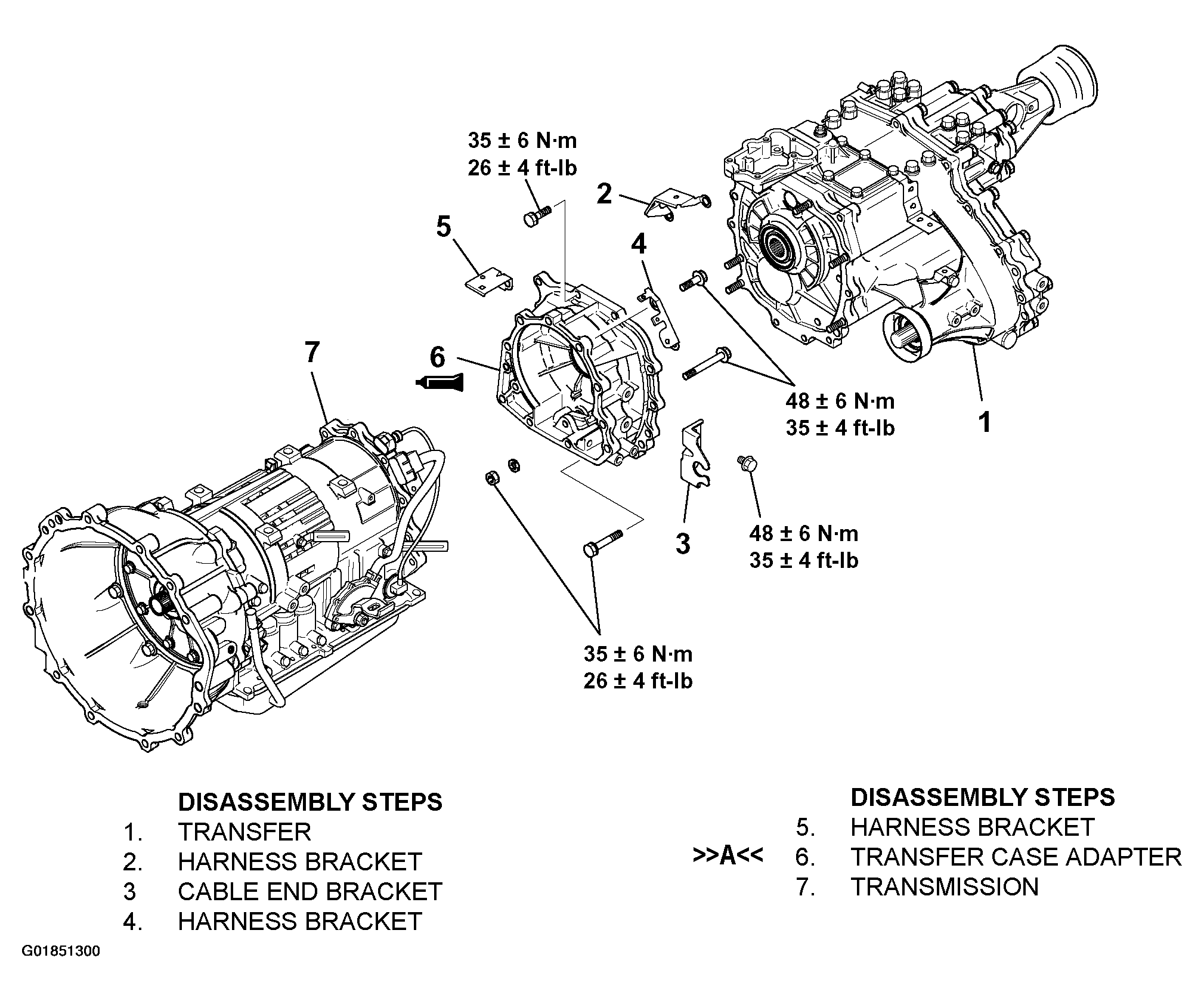

Fig 1: Disassembly/Assembly Of Transmission & Transfer
G01851300Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
