2WD Detection Switch Check

Check for continuity between the terminal of the black connector located on the transfer case.

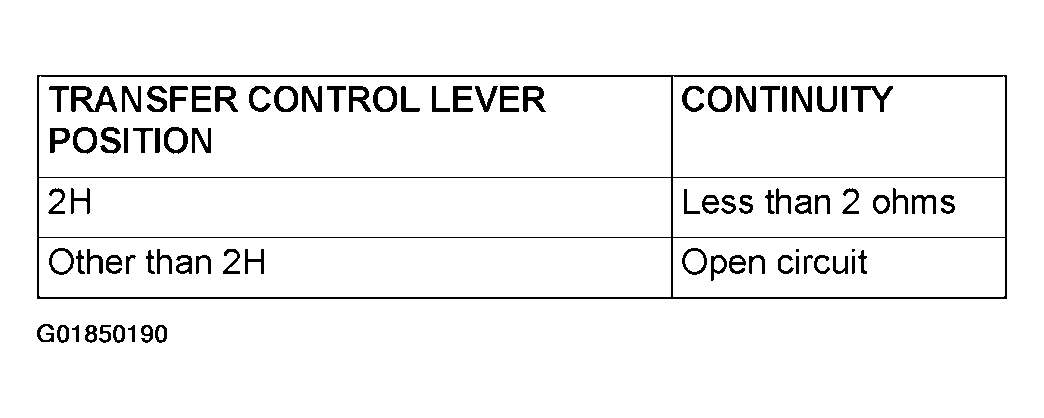

Fig 1: Checking Continuity Between Terminal Of Black Connector Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

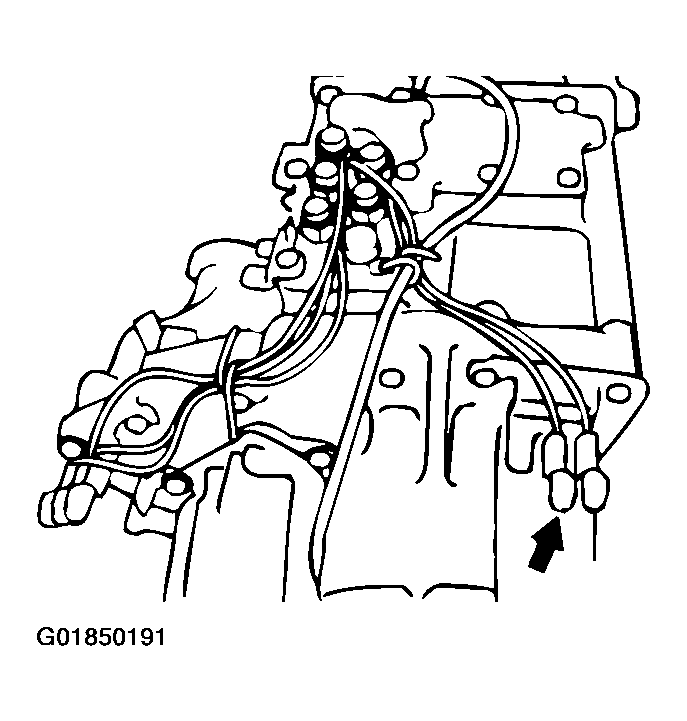

Fig 2: Identifying 2WD Detection Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
