4H Detection Switch Check

Check for continuity between the terminal of the white connector located on the transfer case.

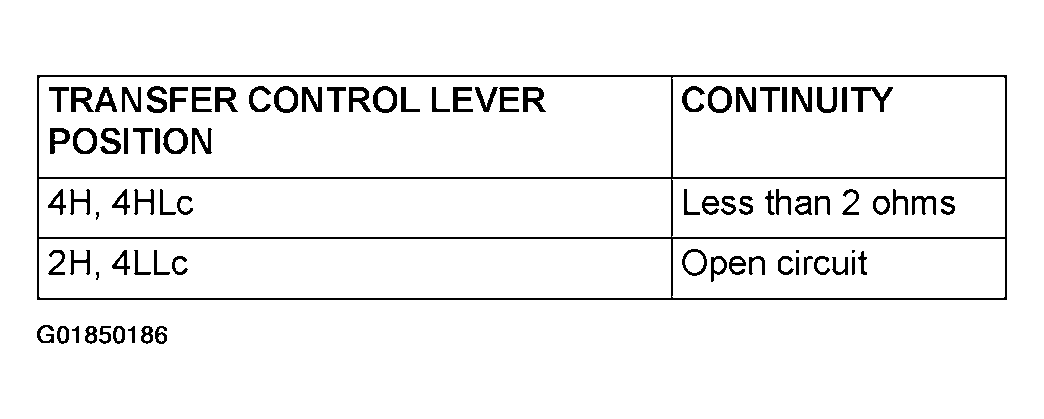

Fig 1: Checking Continuity Between Terminal Of White Connector Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

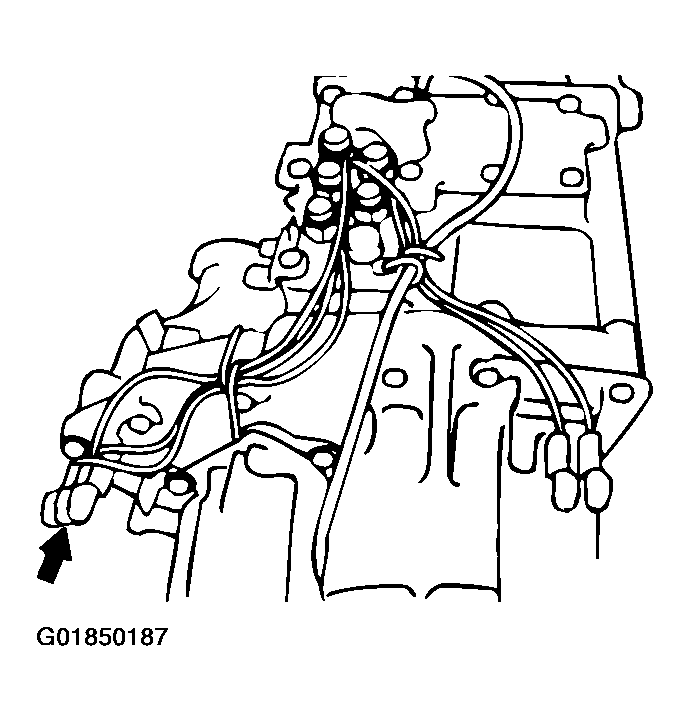

Fig 2: Identifying 4H Detection Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
