Automatic Transmission Control Component Layout

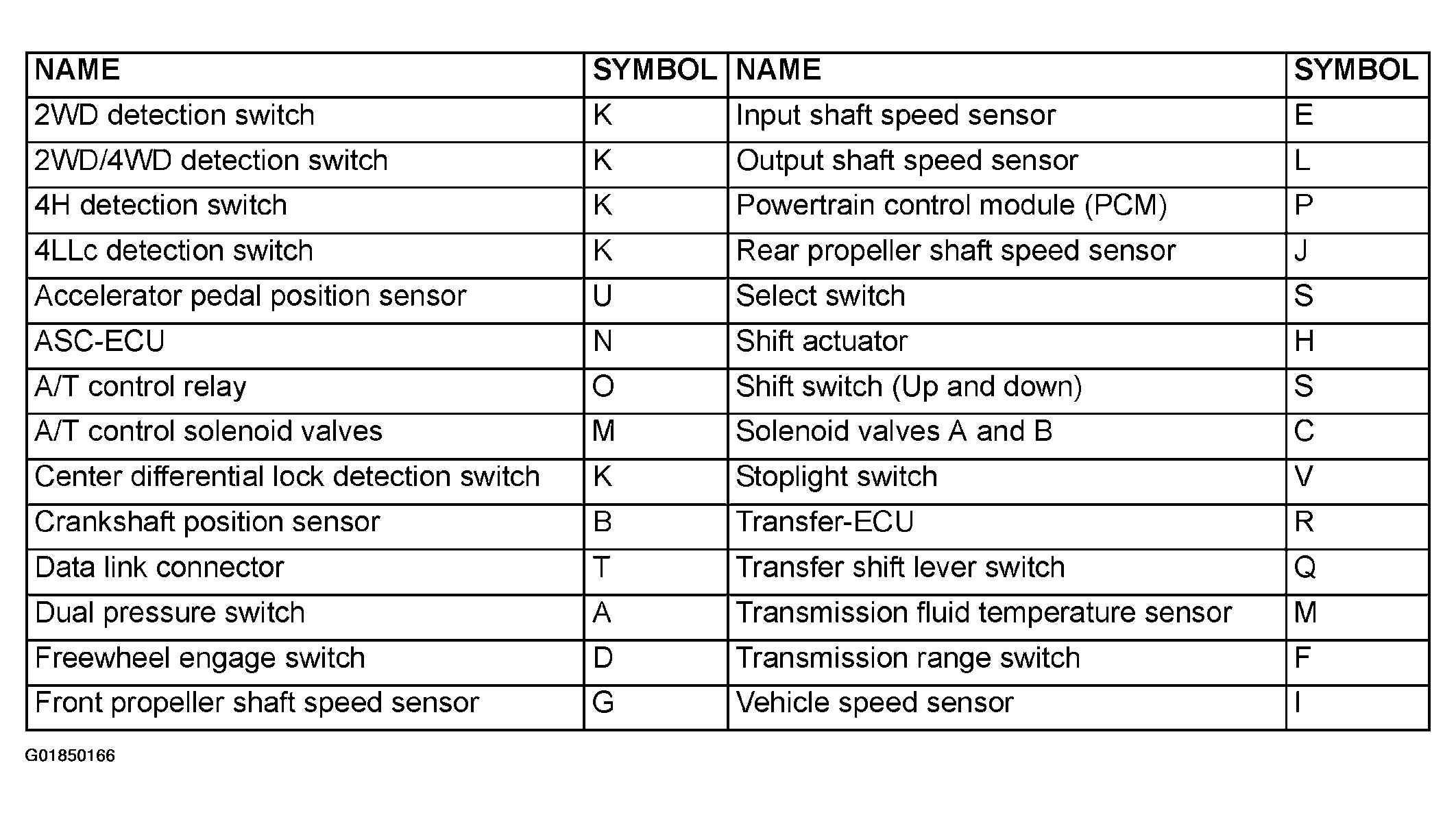

Fig 1: Automatic Transmission Control Component Layout (1 Of 5)
G01850166Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

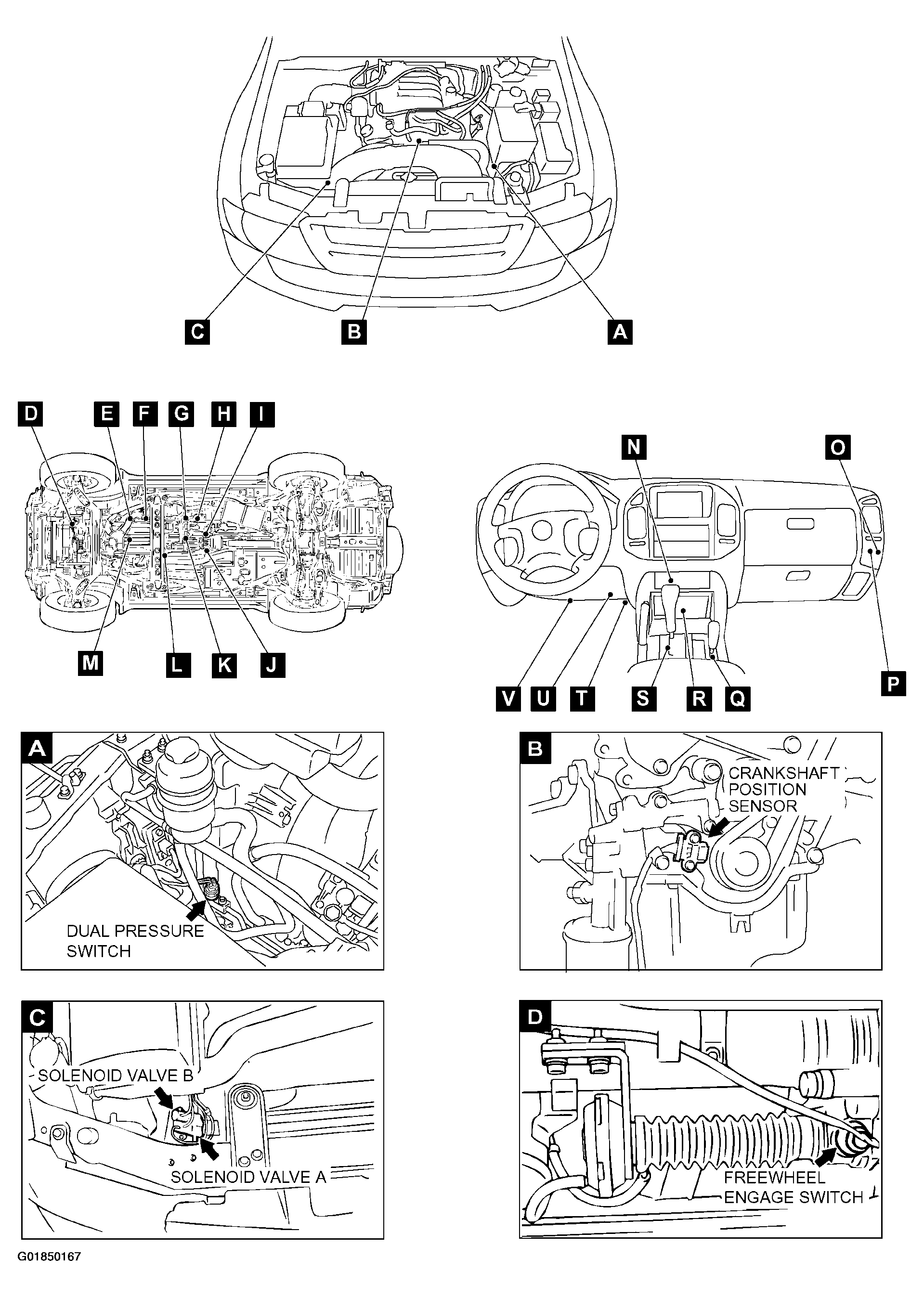

Fig 2: Automatic Transmission Control Component Layout (2 Of 5)
G01850167Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

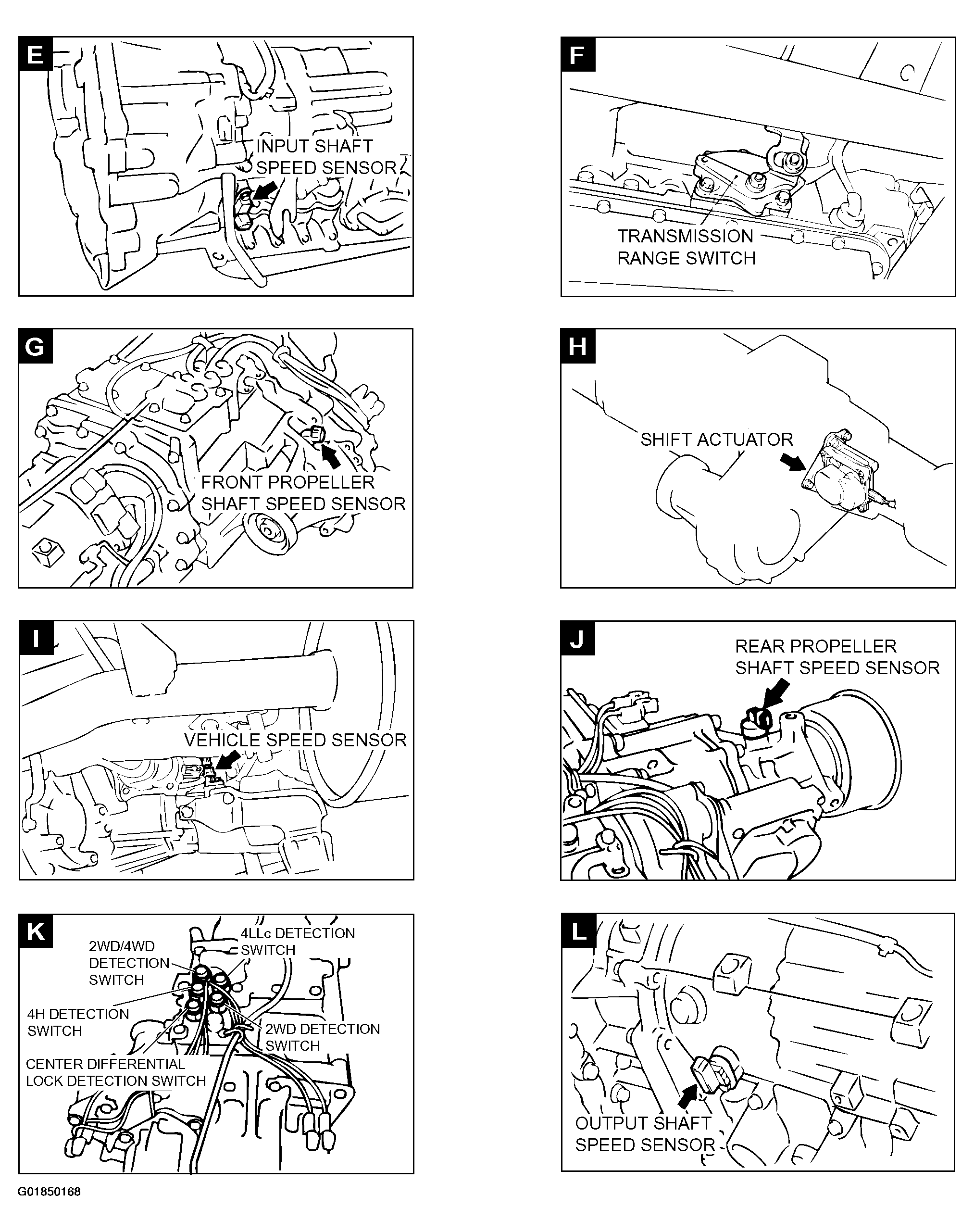

Fig 3: Automatic Transmission Control Component Layout (3 Of 5)
G01850168Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

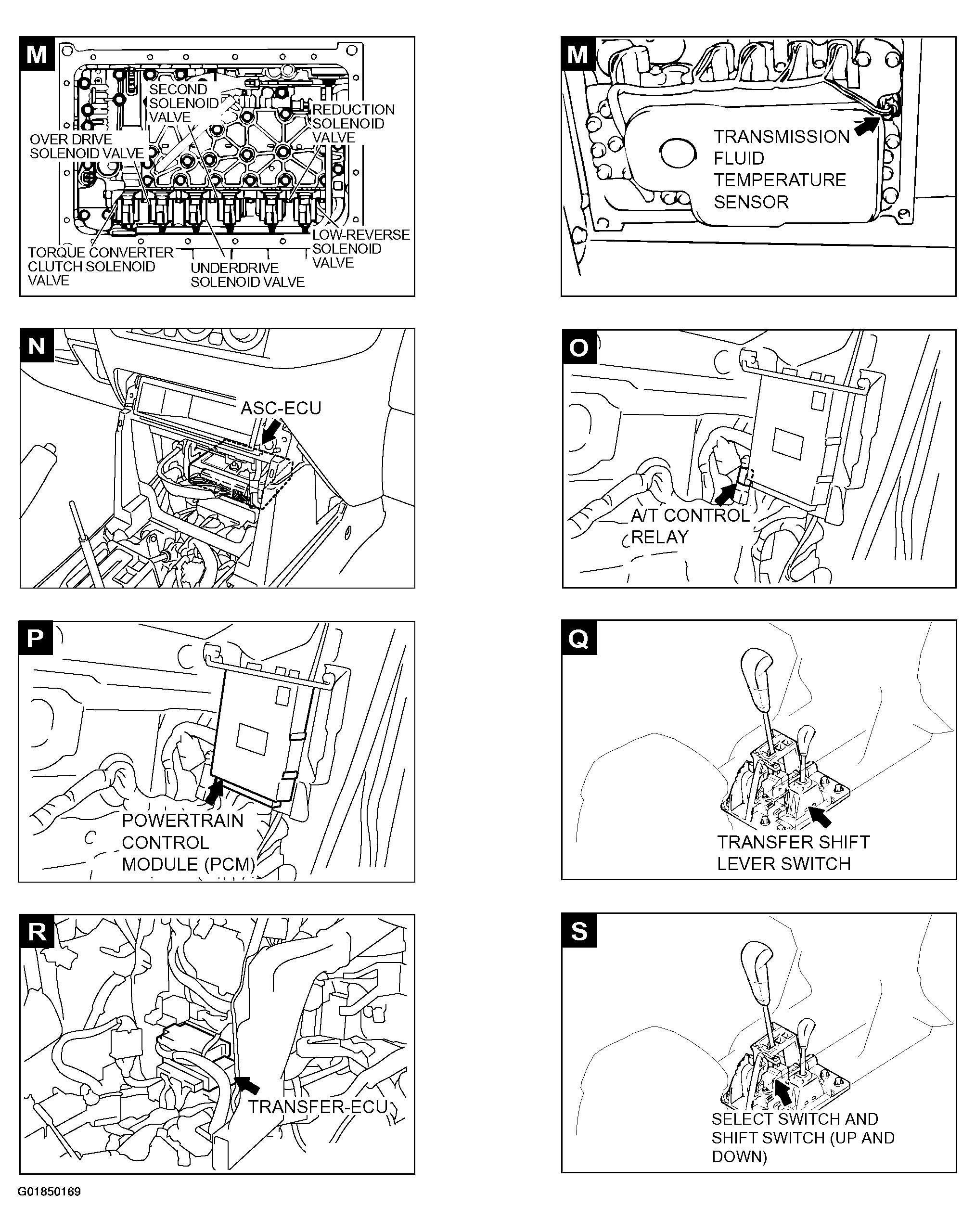

Fig 4: Automatic Transmission Control Component Layout (4 Of 5)
G01850169Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

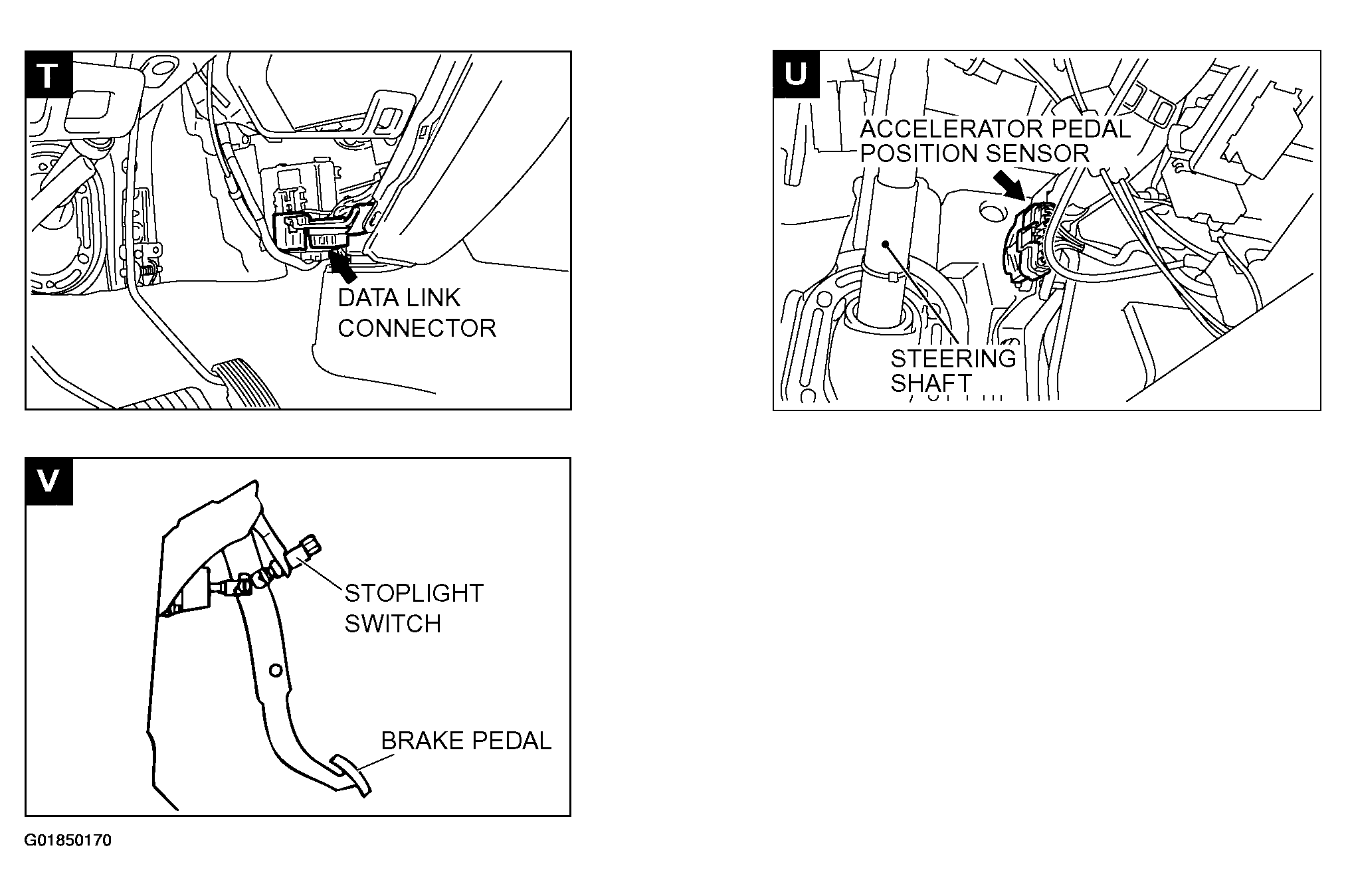

Fig 5: Automatic Transmission Control Component Layout (5 Of 5)
G01850170Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
