Disassembly And Assembly

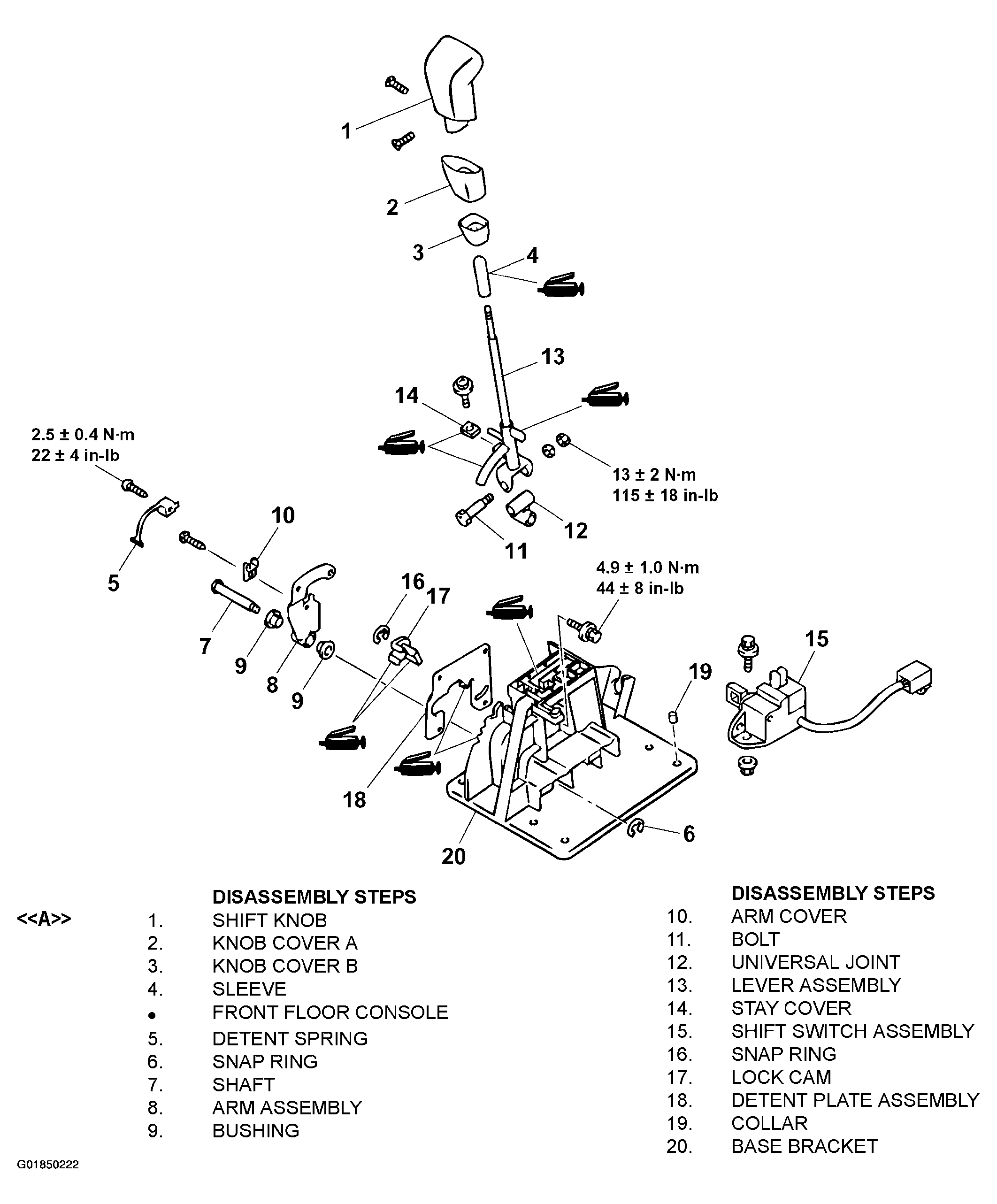

Fig 1: Disassembly & Assembly Of Transmission Control
G01850222Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

  1. MB990784: Ornament Remover
