Transfer Shift Lever Switch Continuity Check

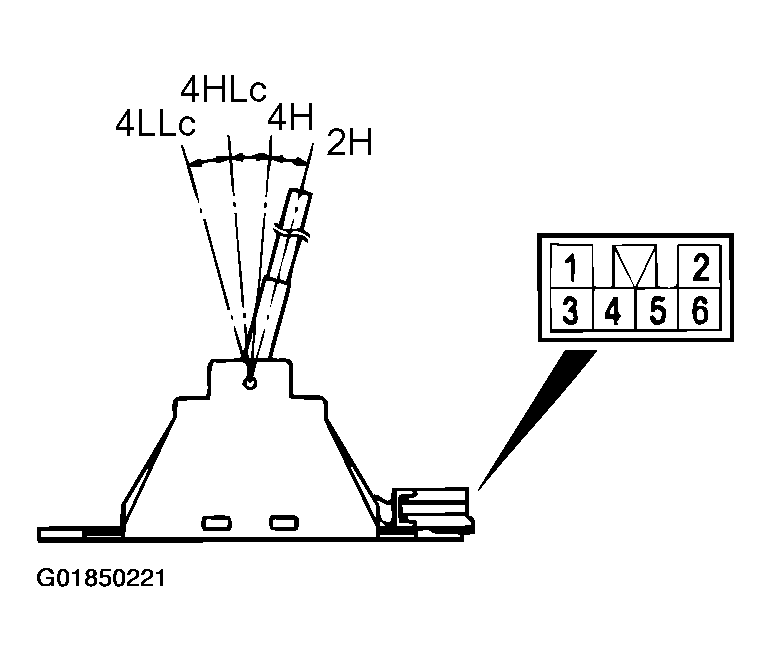

Fig 1: Checking Continuity Between Transfer Shift Lever Switch Terminals
G01850221Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

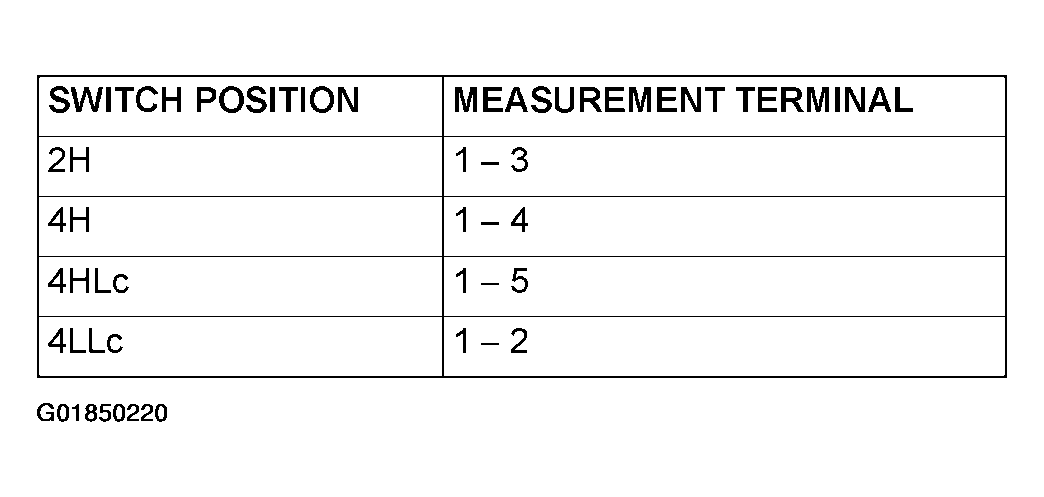

Fig 2: Transfer Shift Lever Switch Continuity Check Table
G01850220Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
