INSPECTION PROCEDURE 18: 4LLc Detection Switch System: Notes

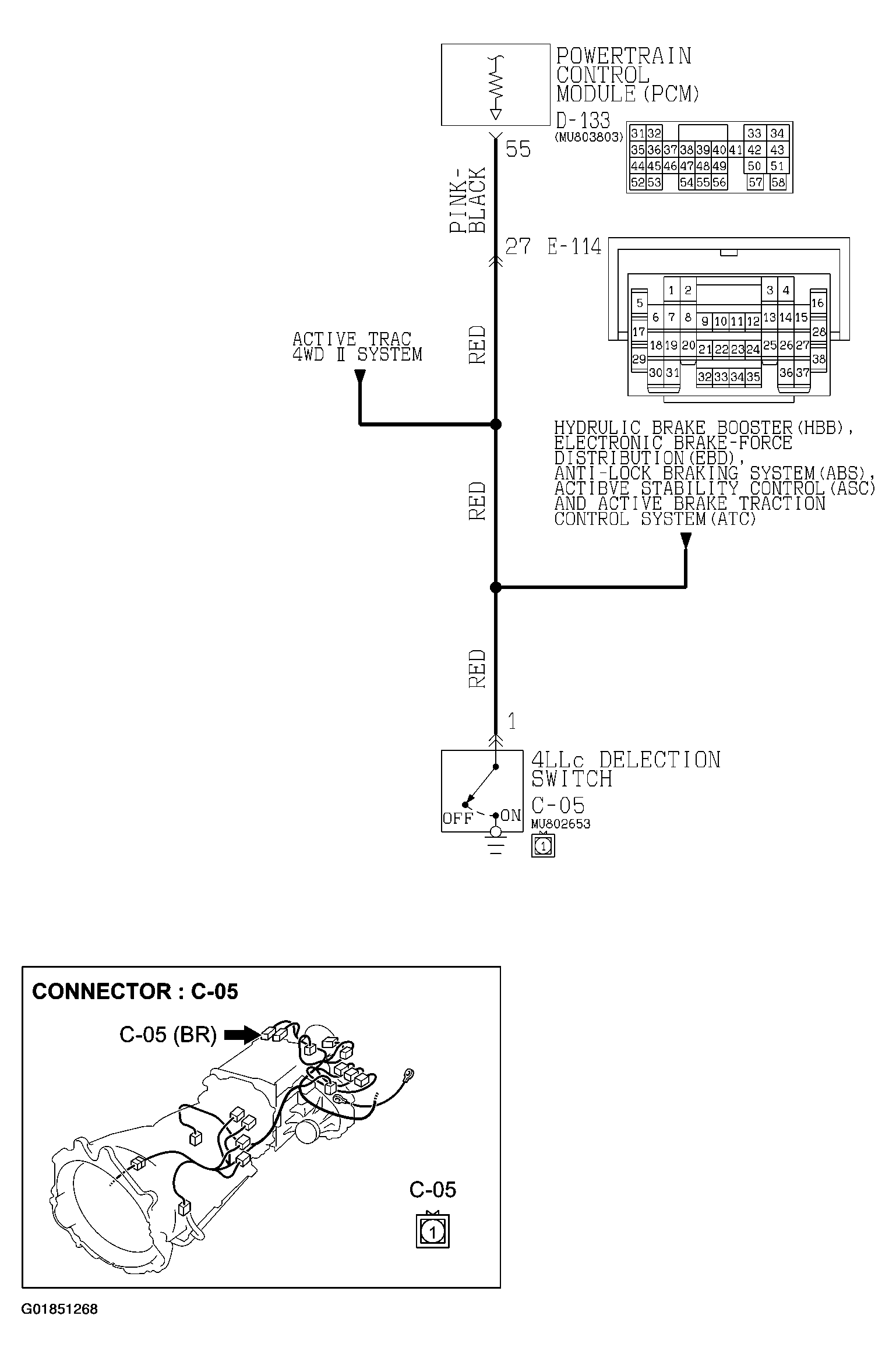

Fig 1: 4LLc Detection Switch System Circuit Diagram (1 Of 2)
G01851268Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

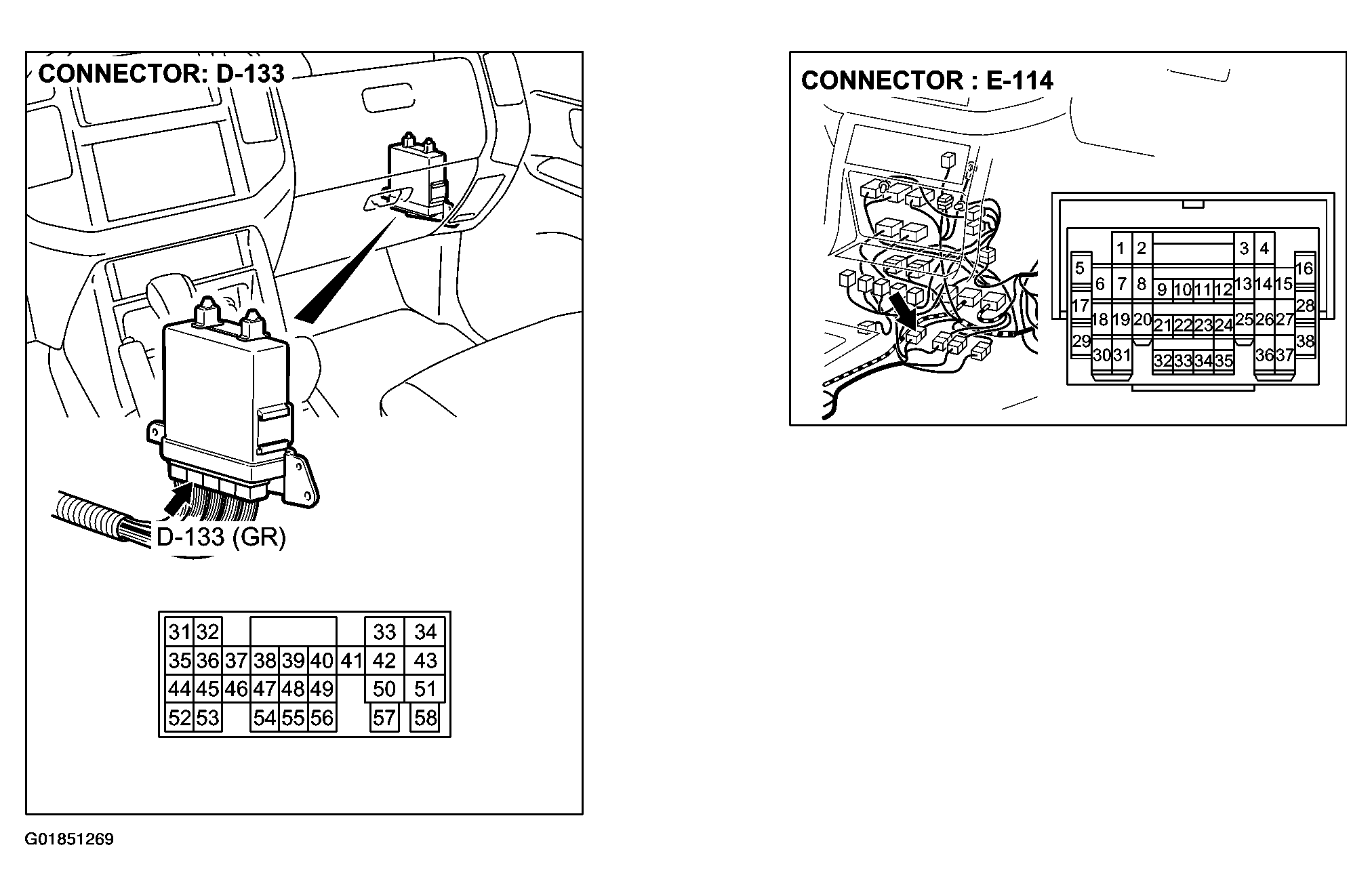

Fig 2: 4LLc Detection Switch System Circuit Diagram (2 Of 2)
G01851269Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
