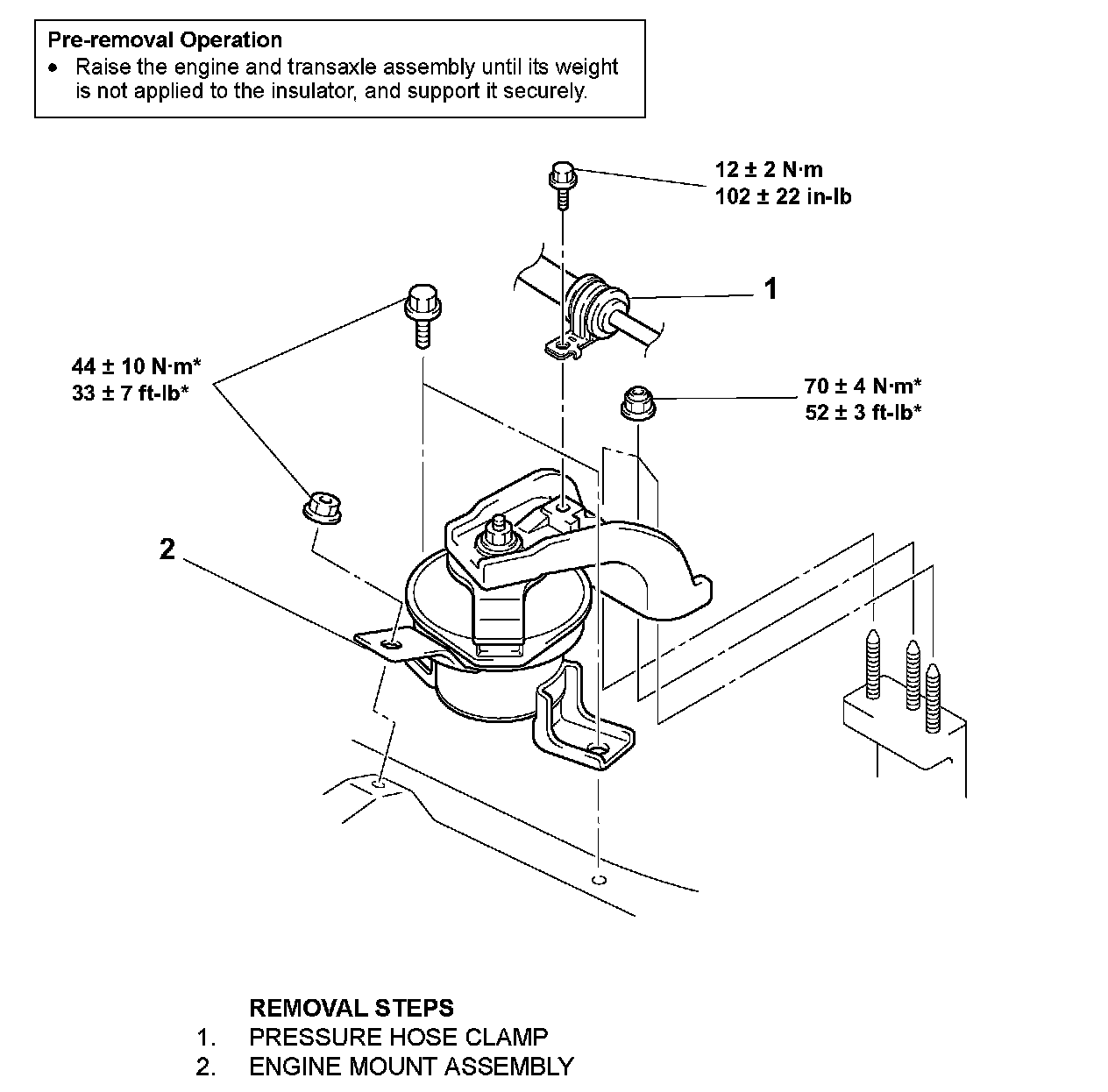

Engine Mount




Part 1 Of 2:




Part 2 Of 2:

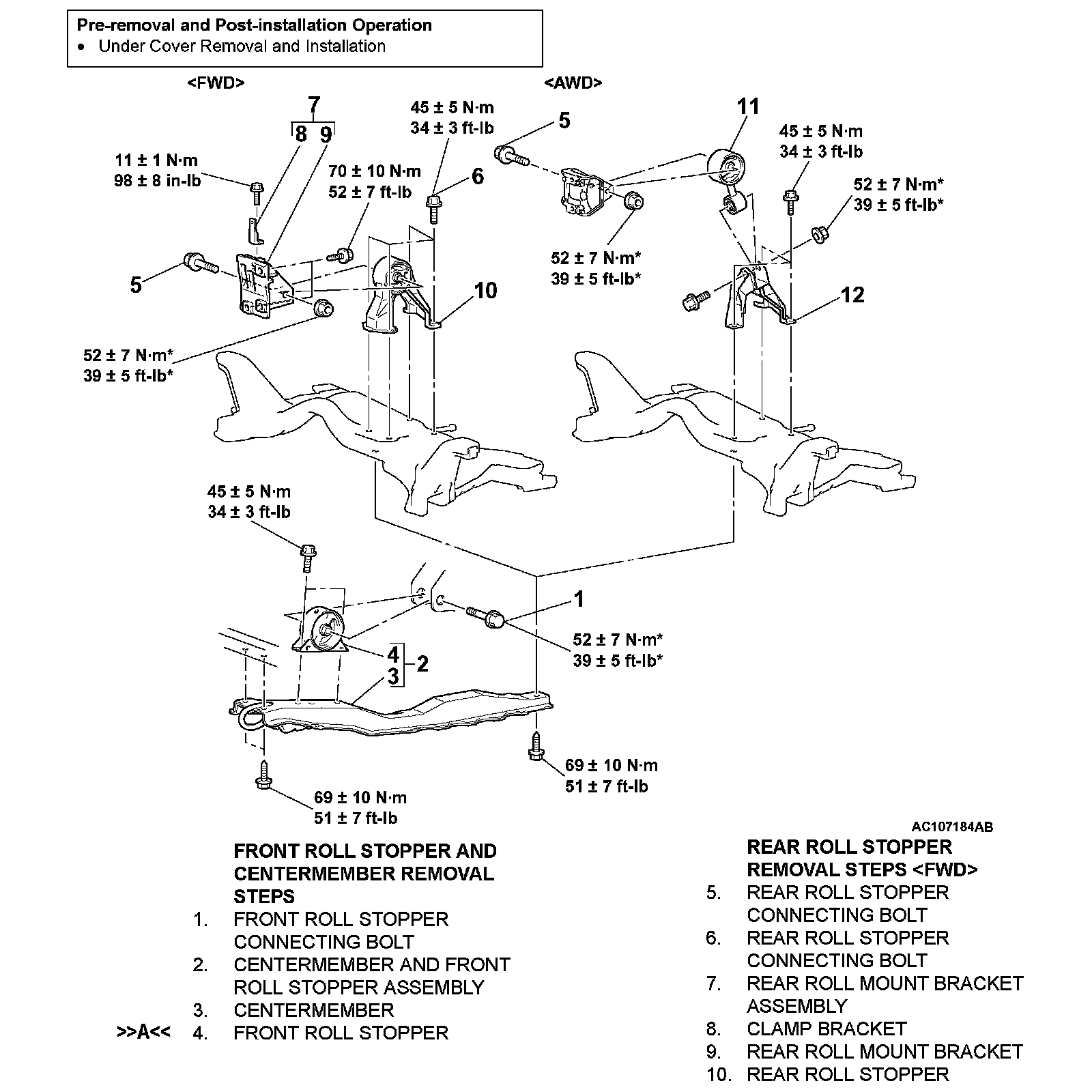

ENGINE ROLL STOPPER AND CENTERMEMBER REPLACEMENT W/ RELATED COMPONENTS
