Control Assembly: Service and Repair

Heater Control Assembly And A/C Switch:

INSTALLATION SERVICE POINT

>>A<< BLOWER VENT CHANGEOVER DAMPER CABLE







1. Set the heater control assembly's blower vent changeover knob to the DEF position.

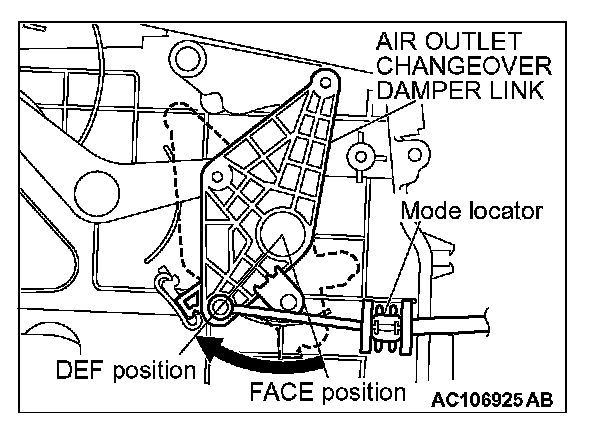

2. Set the heater unit's blower vent changeover damper relay to the DEF position (turn the damper relay to the left until it stops) and install the cable.
3. Set the mode locator to the heater unit case and secure with a clip.

>>B<< AIR MIX DOOR CABLE CONNECTION







1. Turn the heater control assembly's temperature adjustment knob all the way to the HOT side.

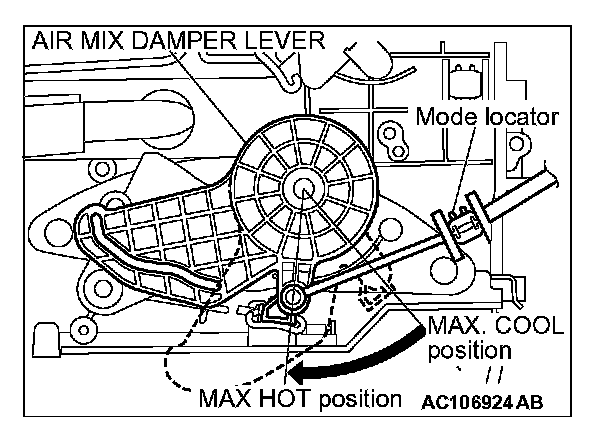

2. Set the heater unit's air mix door lever to the MAX HOT position (turn the damper lever as the left illustration) and attach the cable.
3. Set the mode locator to the heater unit case and secure with a clip.
