Fuel Tank Pressure Sensor: Service and Repair

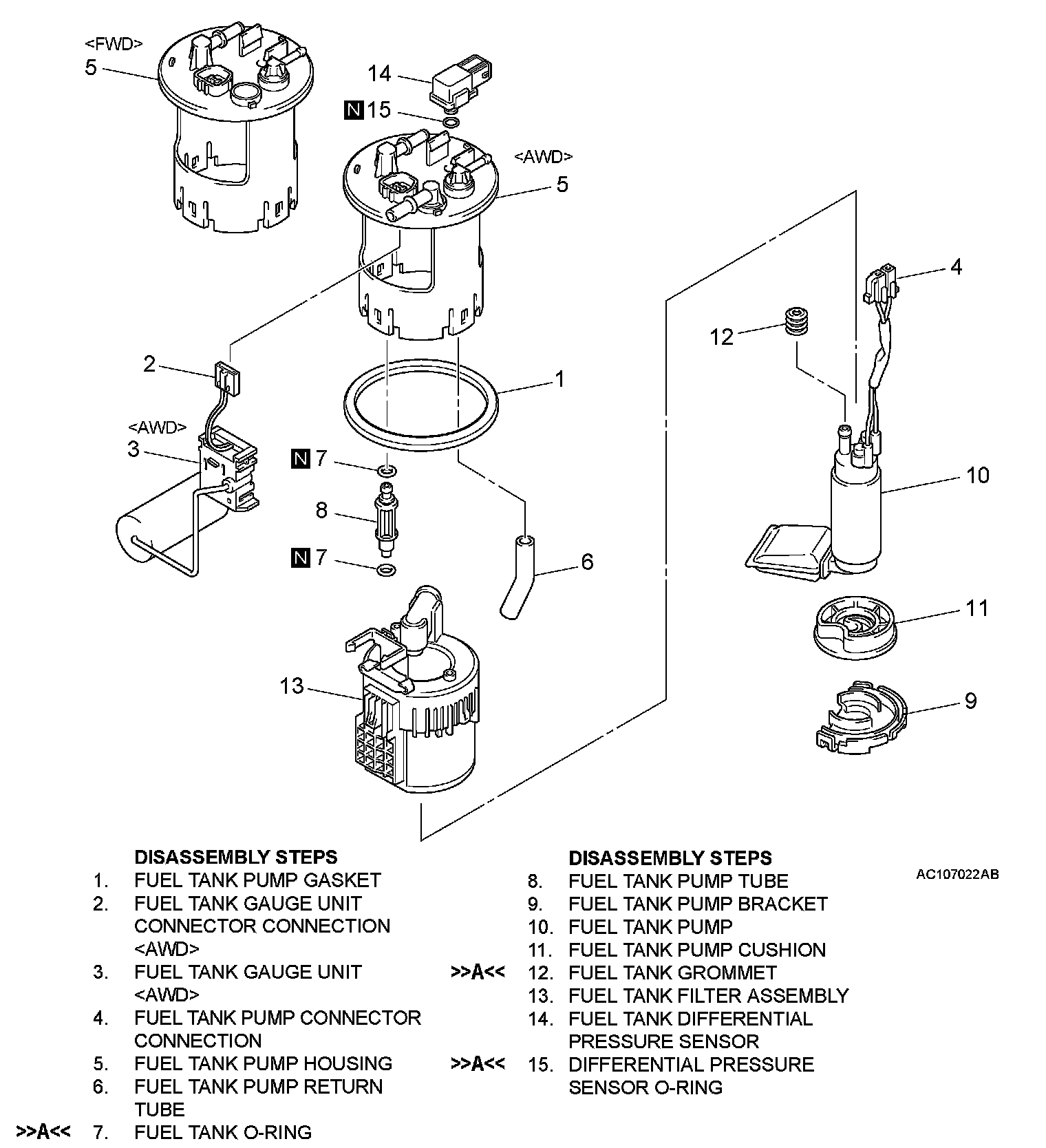

FUEL PUMP MODULE DISASSEMBLY AND ASSEMBLY






ASSEMBLY SERVICE POINT

>>A<< GROMMET/O-RING INSTALLATION
Apply gasoline on the grommet and the O-ring before mounting them to prevent damage or twisting.
