Data List Reference Table

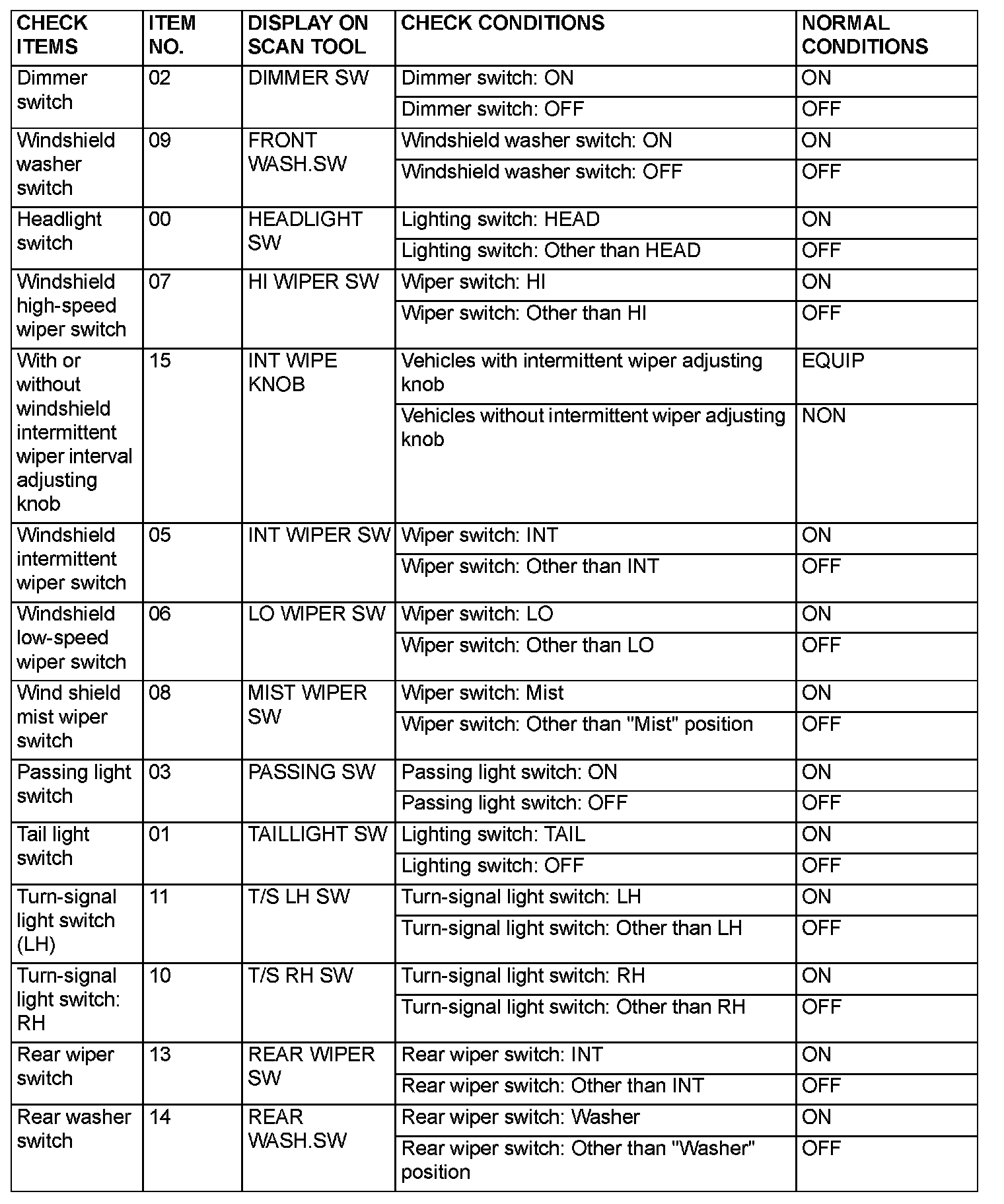

COLUMN ECU (column switch):

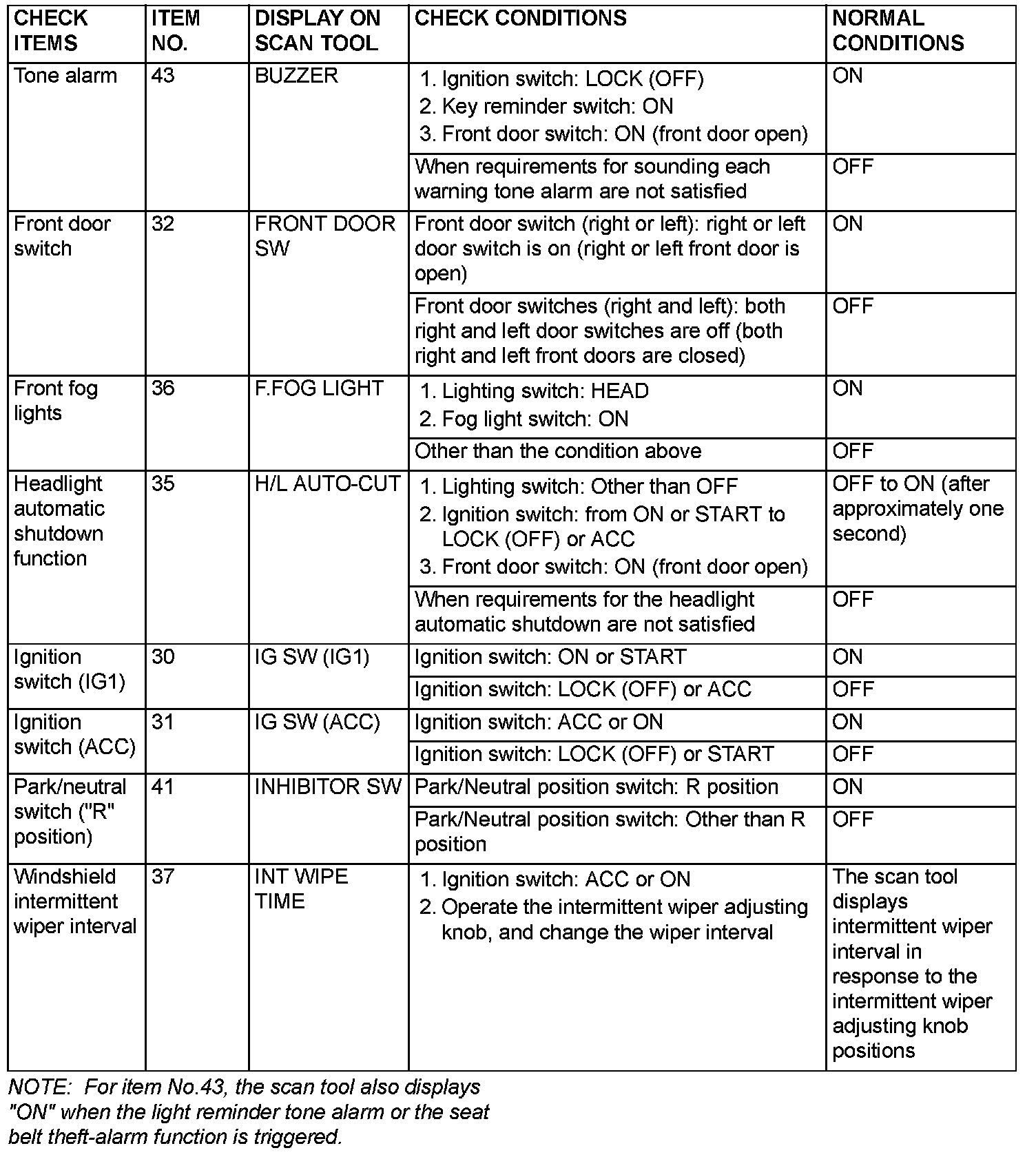

ETACS ECU:

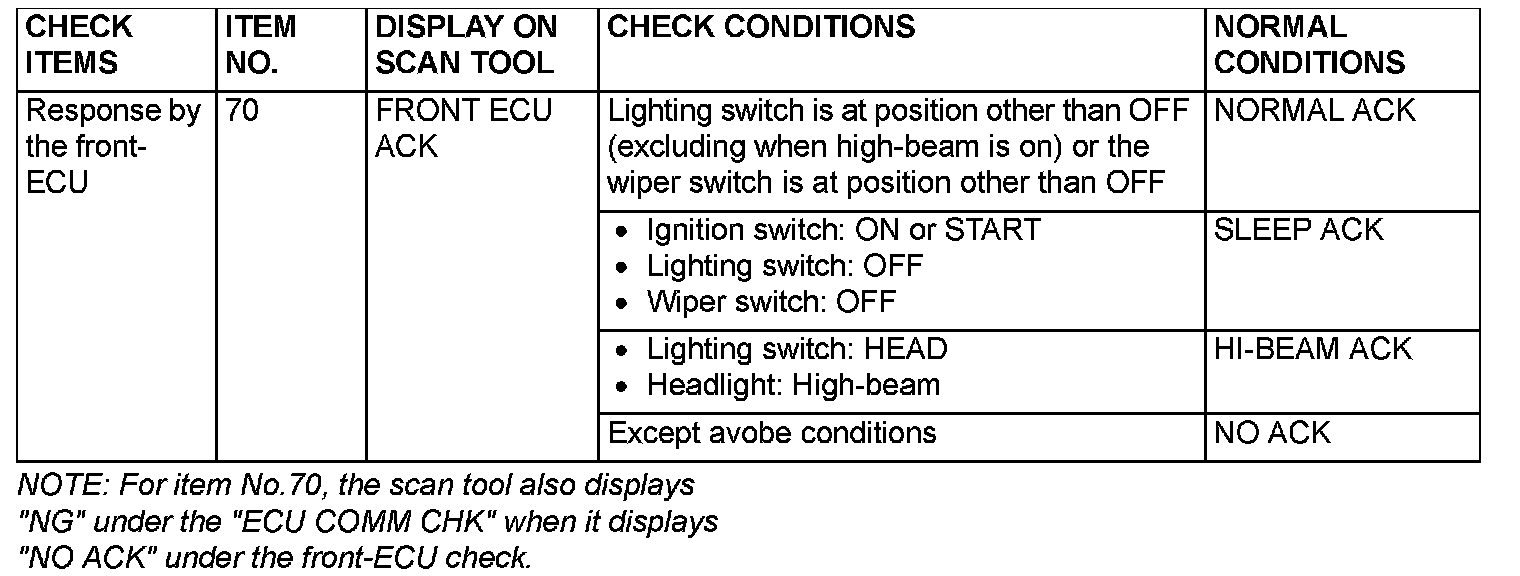

FRONT ECU:

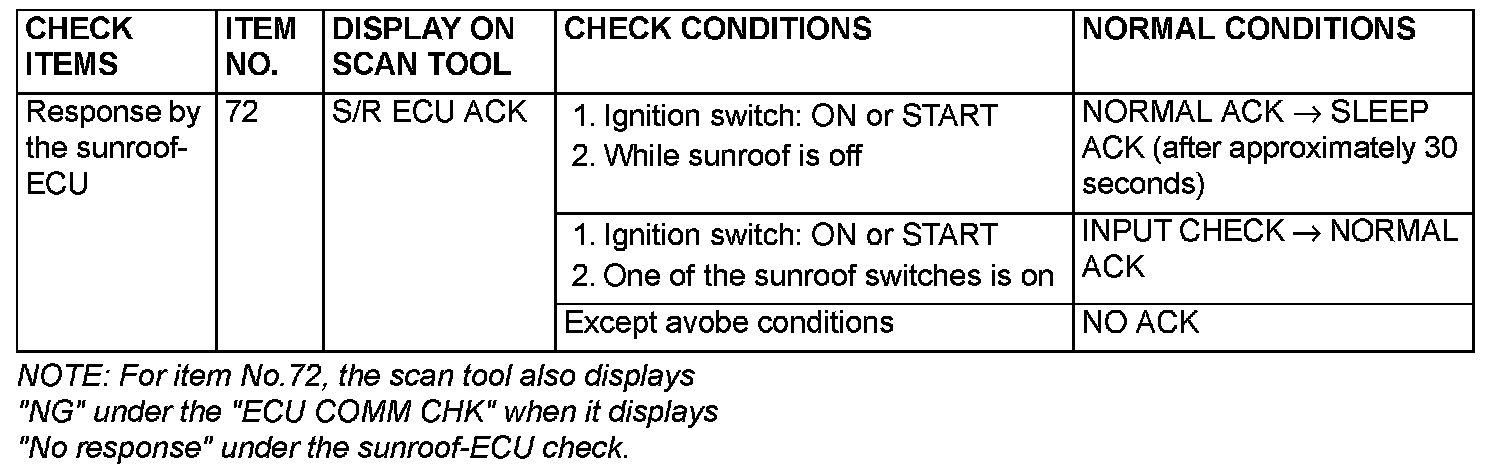

SUNROOF ECU (sunroof motor assembly):

The table below shows the service data and their normal condition, which are displayed during the "DATA LIST."
