Service Data Check

SERVICE DATA CHECK
1. Use the scan tool and the SWS monitor kit to check "DATA LIST" or "FUNCTION DIAG."
This "DATA LIST" or "FUNCTION DIAG." check is applicable for signals, which are transmitted and received through the SWS communication line. For input signals, which are not compatible with the SWS monitor kit, refer to the Pulse Check procedure (by using the scan tool or voltmeter).

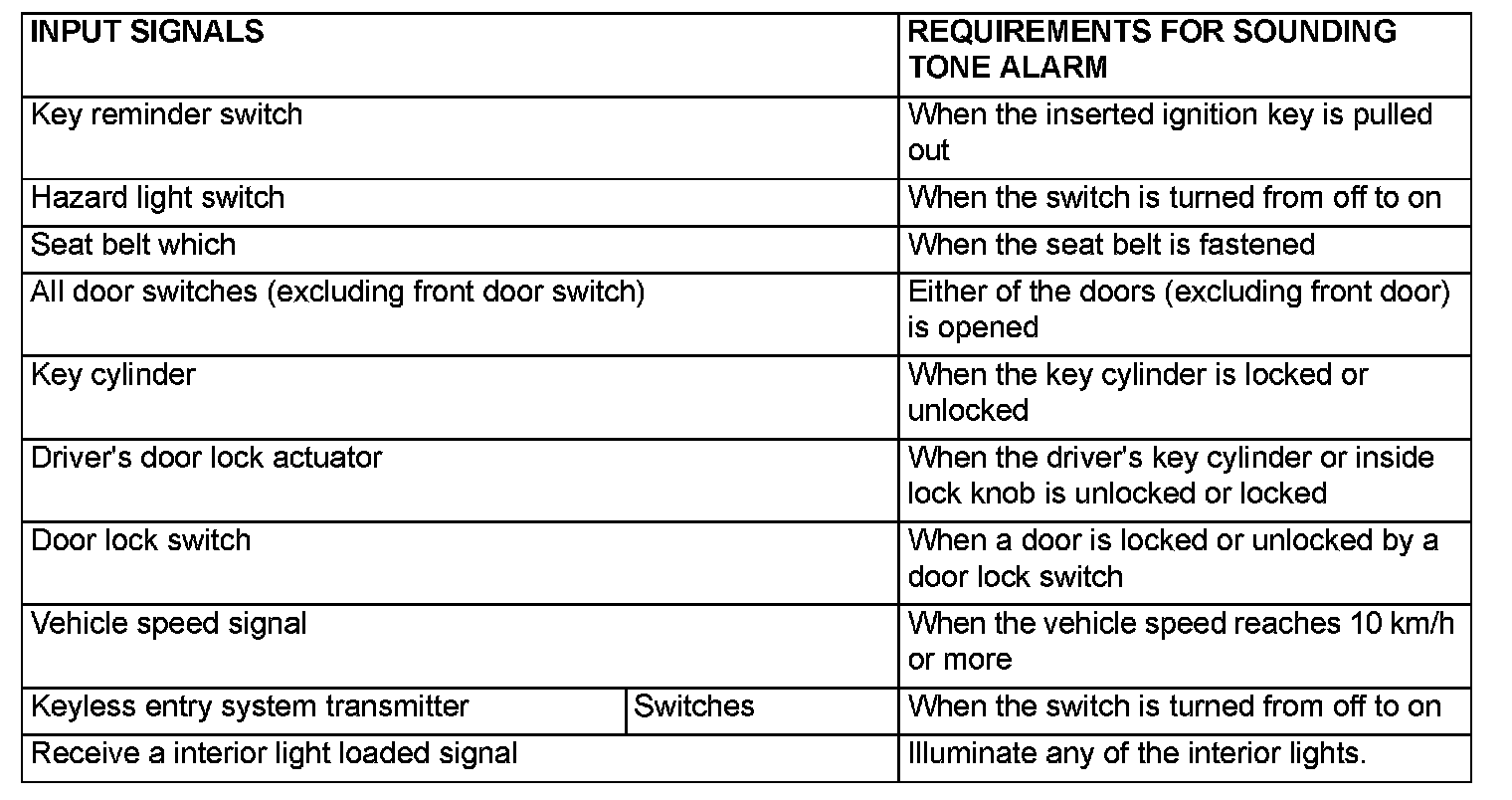

Switches and their conditions, which are applicable for Pulse Check:

2. The input signals can be checked by using the scan tool and the SWS monitor kit.

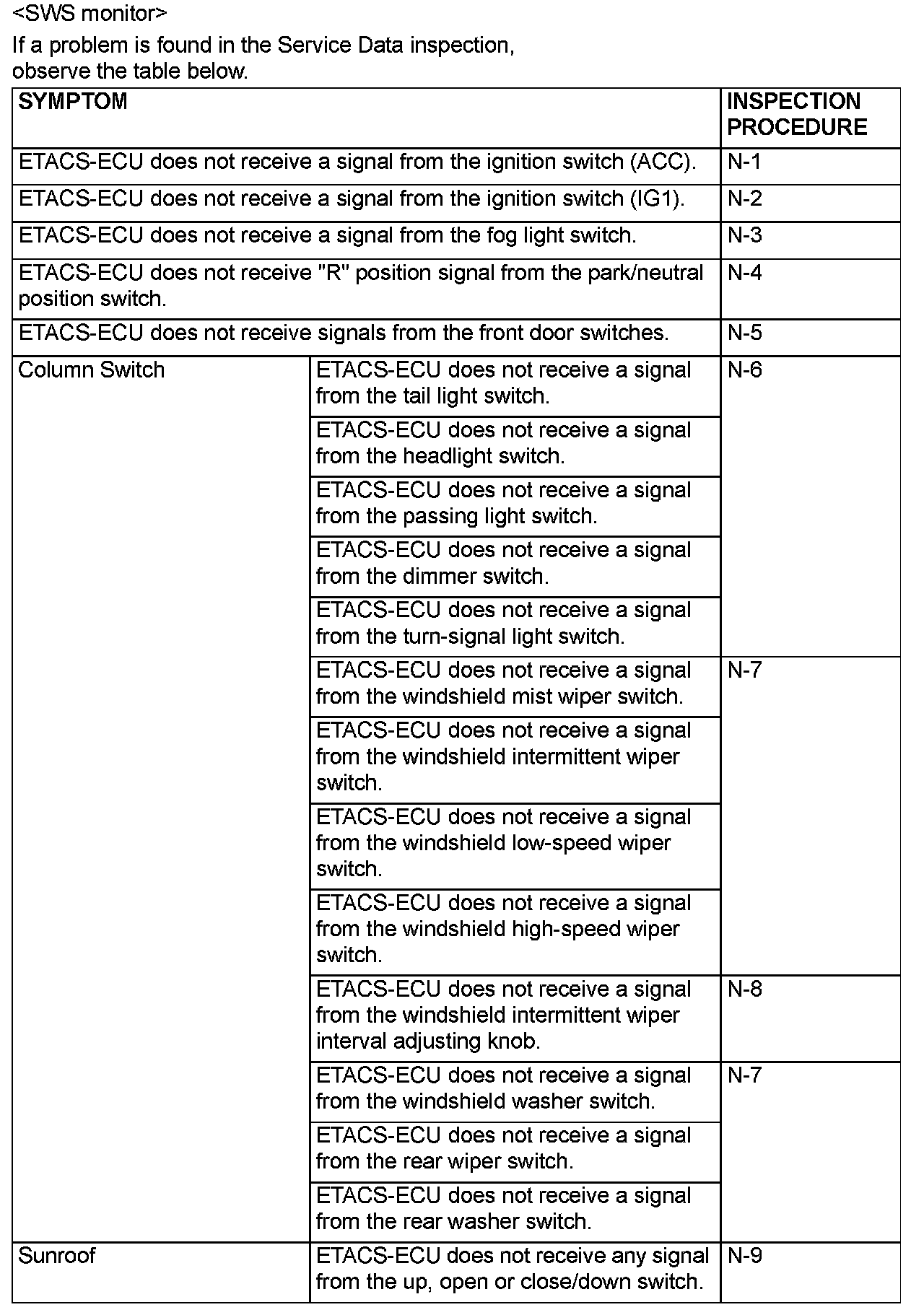

Symptom Chart Part 1:

NOTE: If a problem is found in the "Service Data" check, refer to Input Signal Chart.
