Knock Sensor: Service and Repair

Knock Sensor:

Required Special Tool:
MD998773: Knock Sensor Wrench

REMOVAL SERVICE POINT
<> KNOCK SENSOR REMOVAL

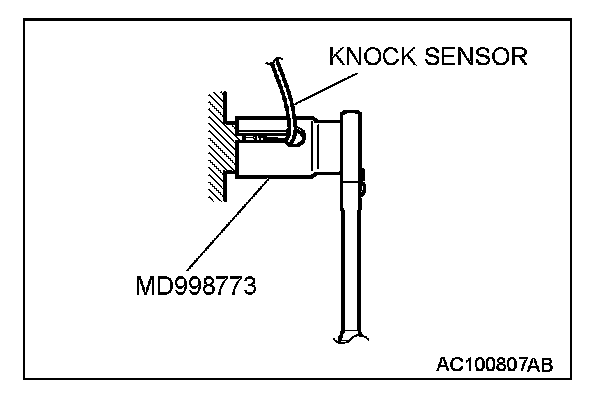

Use special tool MD998773 to remove the knock sensor.

INSTALLATION SERVICE POINT

>>A<< KNOCK SENSOR INSTALLATION

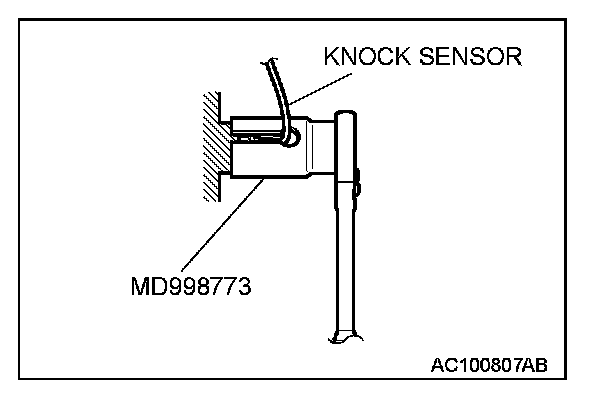

Use special tool MD998773 to tighten the knock sensor to the specified torque.
Tightening torque: 23 ± 2 Nm (17 ± 1 ft-lb)
